Component Inspection

1. Turn ignition switch OFF.
2. Remove high pressure fuel pump relay. Refer to Component Location .

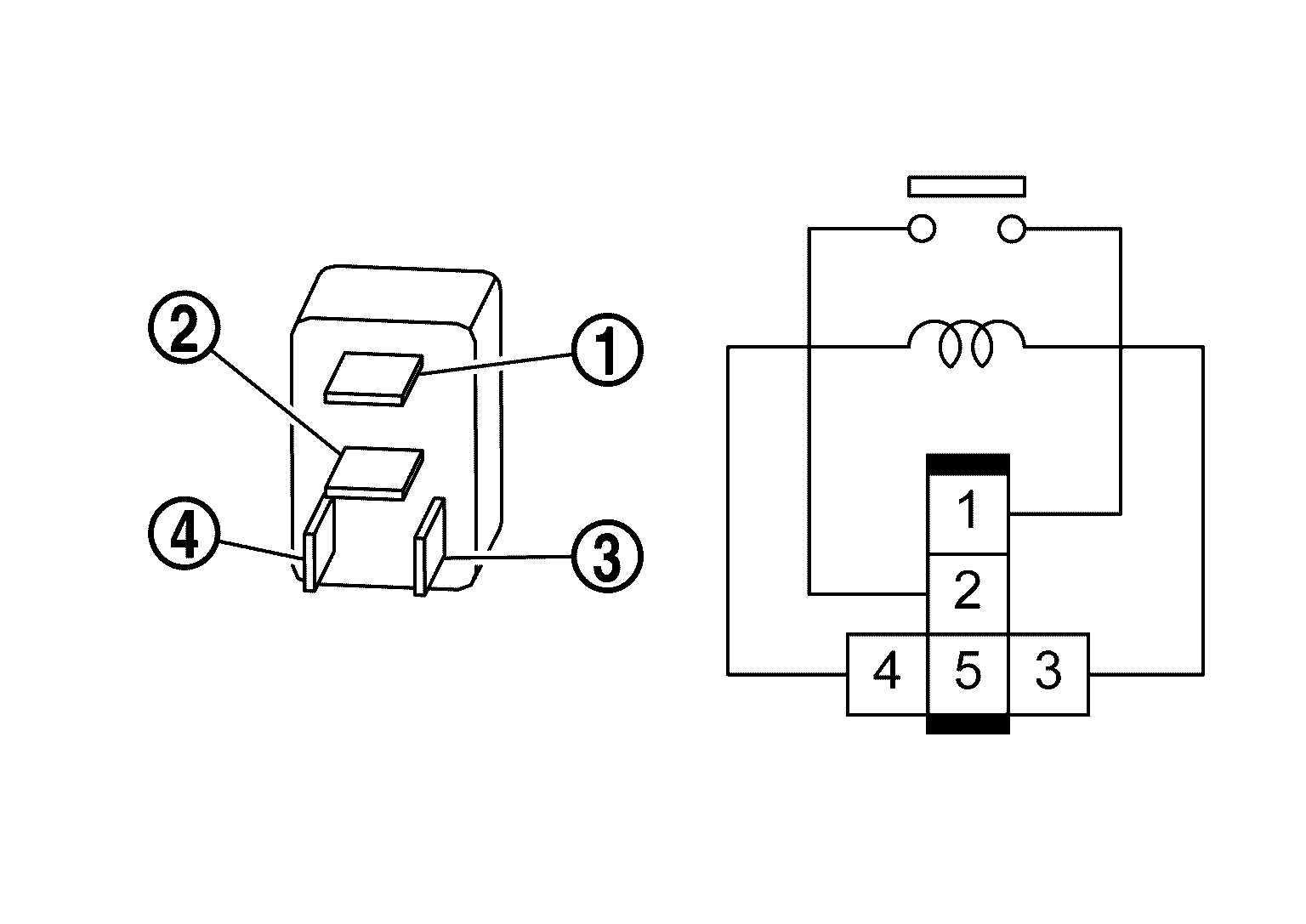

3. Check the continuity between high pressure fuel pump relay terminals.

   Courtesy of NISSAN NORTH AMERICA, INC.

   High pressure fuel pump relay		Condition	Continuity
   +	-
   Terminal
   1	2	12 V direct current supply between terminals 3 and 4	Existed
   		No current supply	Not existed

Is the inspection result normal?

>>

INSPECTION END

>>

Replace high pressure fuel pump relay. Refer to Component Location .
