Component Inspection

1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect intake camshaft position sensor harness connector.
4. Remove the sensor.

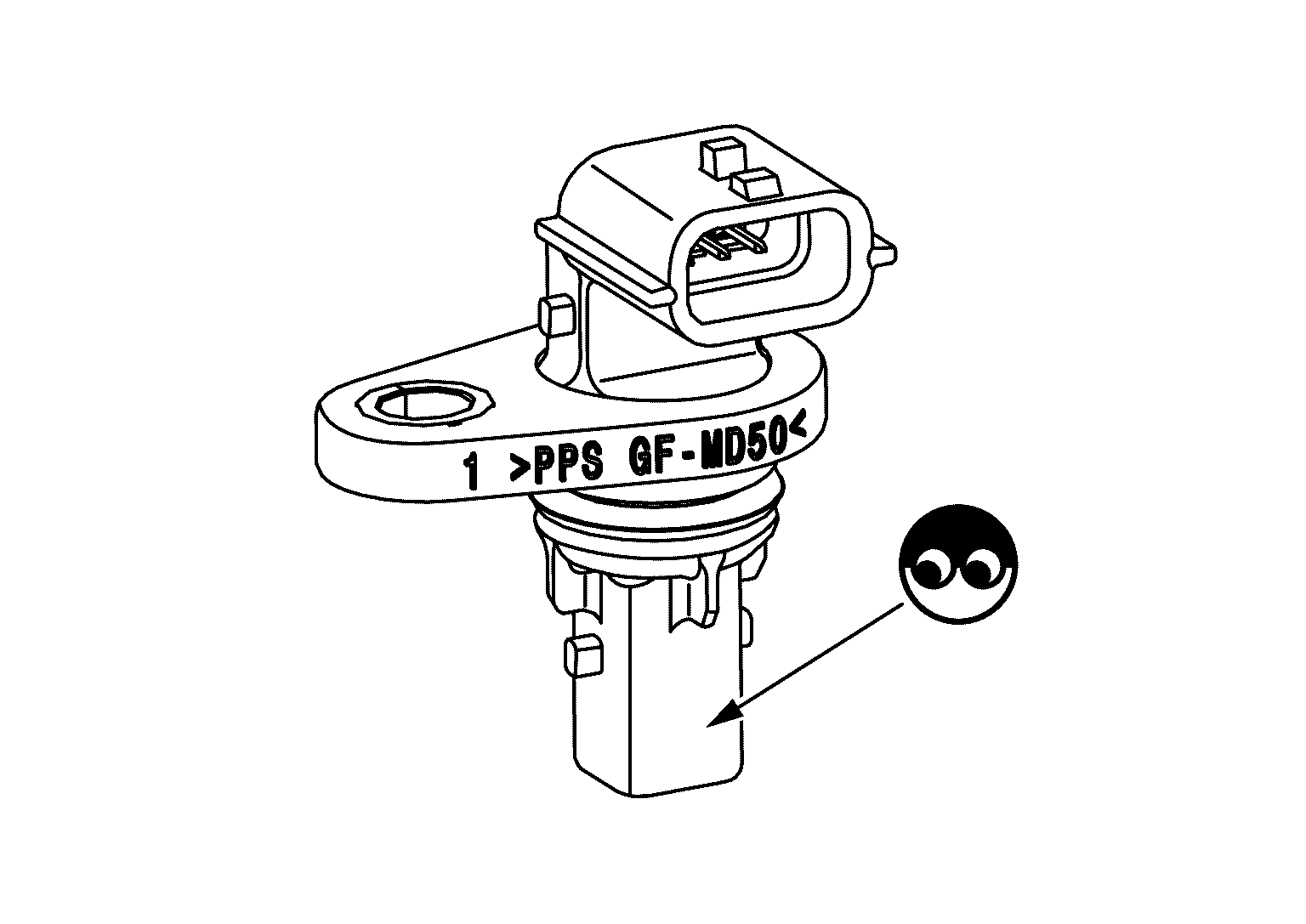

5. Visually check the sensor for chipping.

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

>>

GO TO 2.

>>

Replace intake camshaft position sensor. Refer to Exploded View .

Check resistance intake camshaft position sensor terminals as follows.

Is the inspection result normal?

>>

INSPECTION END

>>

Replace intake camshaft position sensor. Refer to Exploded View .
