Component Function Check

1. Turn ignition switch ON.

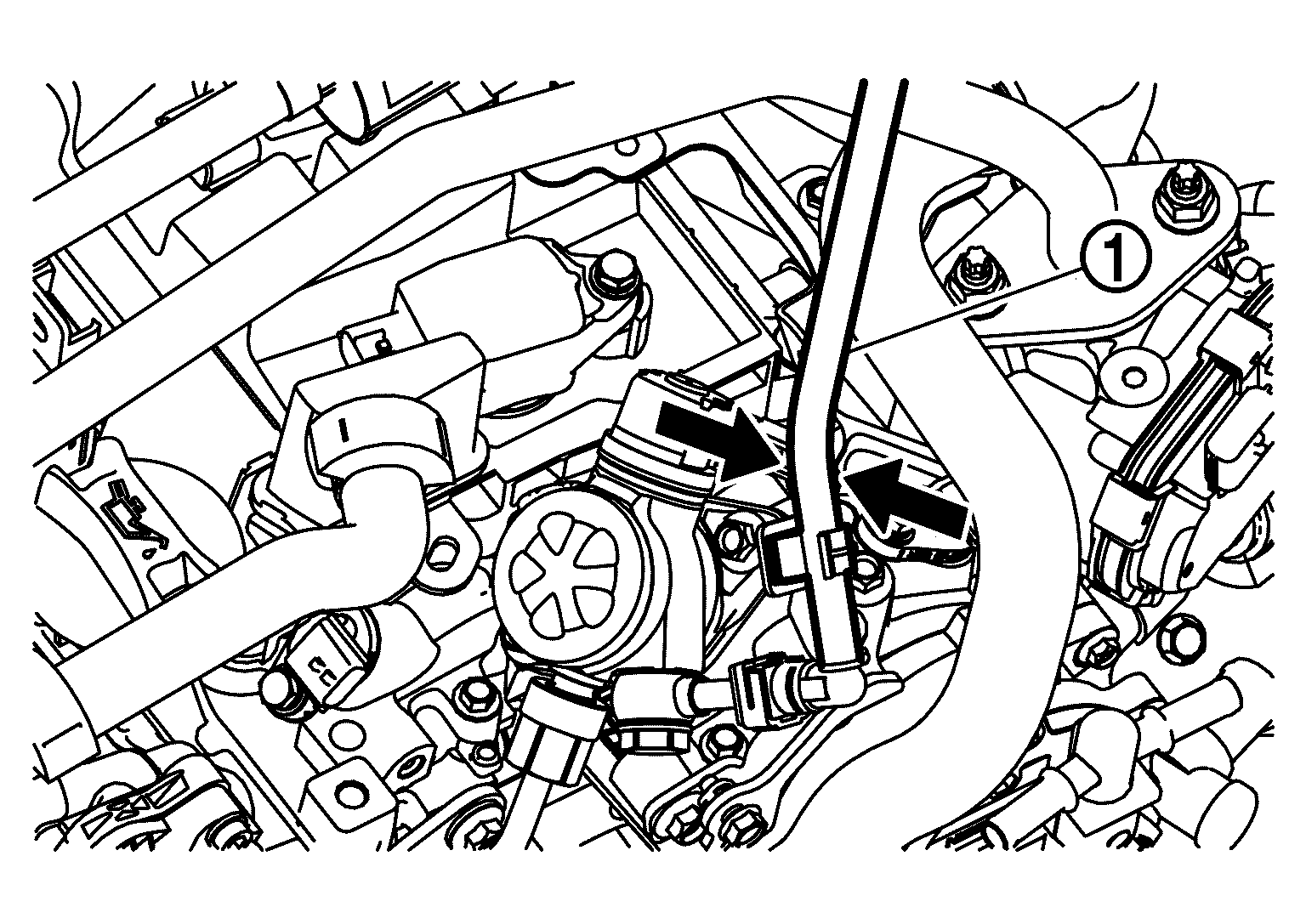

2. Pinch fuel feed hose with two fingers.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

Is the inspection result normal?

>>

INSPECTION END

>>

Refer to Diagnosis Procedure .
