Removal and Installation

REMOVAL

  1. Remove shift selector finisher. Refer to Removal and Installation .

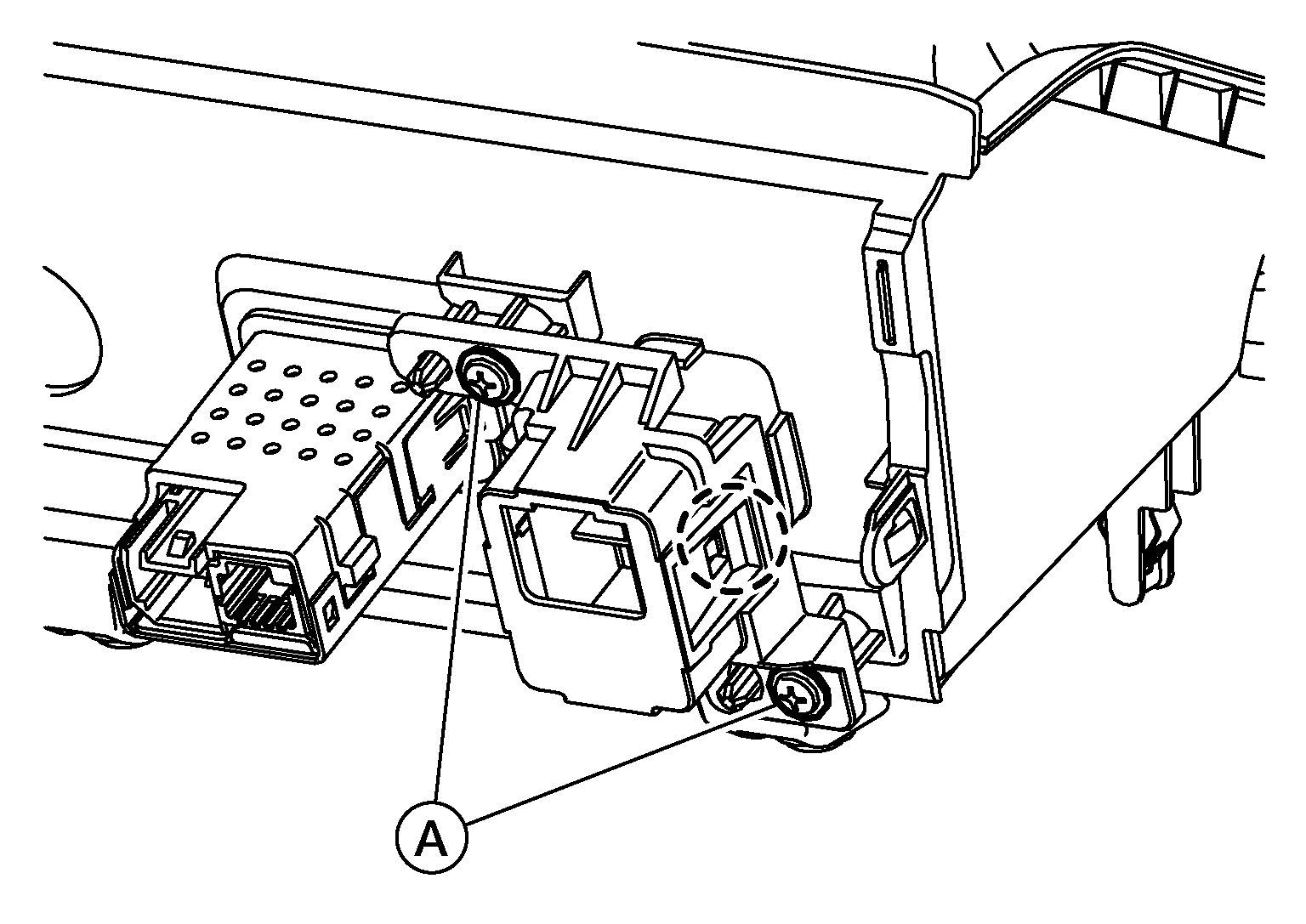

  2. Remove screws (A) then release pawls and remove start/stop off switch.
    GNSDB133683Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.
