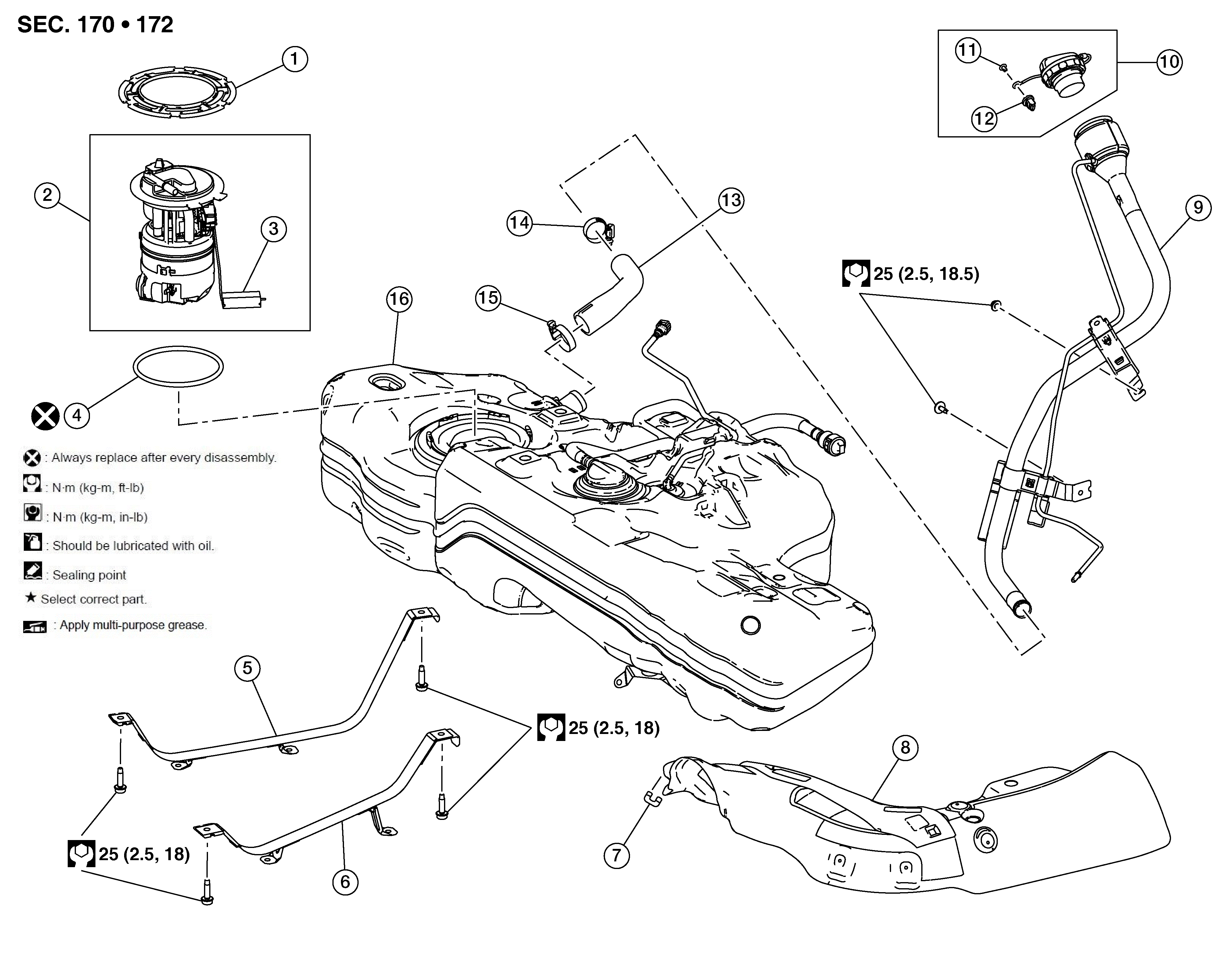

Exploded View
| 1. | Fuel pump locking ring | 2. | Fuel pump assembly | 3. | Fuel level sensor |
| 4. | Fuel pump o-ring | 5. | Fuel tank mounting strap (RH) | 6. | Fuel tank mounting strap (LH) |
| 7. | Fuel tank protector clip) | 8. | Fuel tank protector | 9. | Fuel filler tube assembly |
| 10. | Fuel cap assembly | 11. | fuel cap tether clip | 12. | fuel cap tether grommet |
| 13. | fuel filler tube | 14. | fuel filler tube band clamp | 15. | Tank side band clamp |
| 16. | Fuel tank | ||||
