Switch Name and Function

SWITCHES AND INDICATORS

Courtesy of NISSAN NORTH AMERICA, INC.

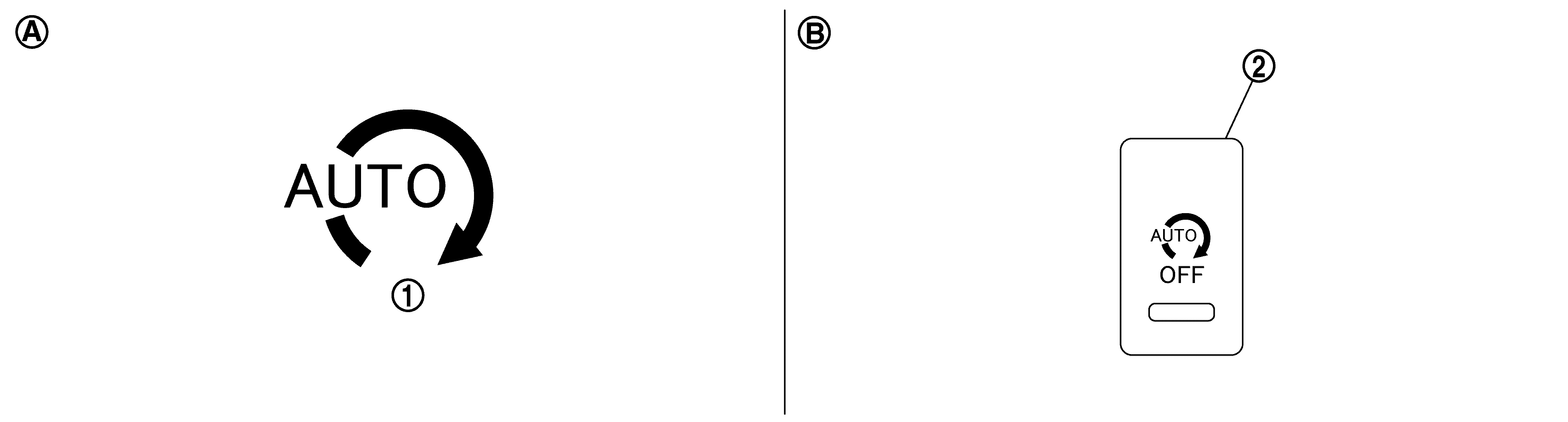

1.	Start/Stop indicator	2.	Start/Stop OFF switch
A.	On the information display	B.	Lower instrument panel (driver side)

SYSTEM CONTROL CONDITION DISPLAY

Start/Stop Indicator Status (Information Display)

System condition		Vehicle condition	Warning chime	Start/Stop indicator

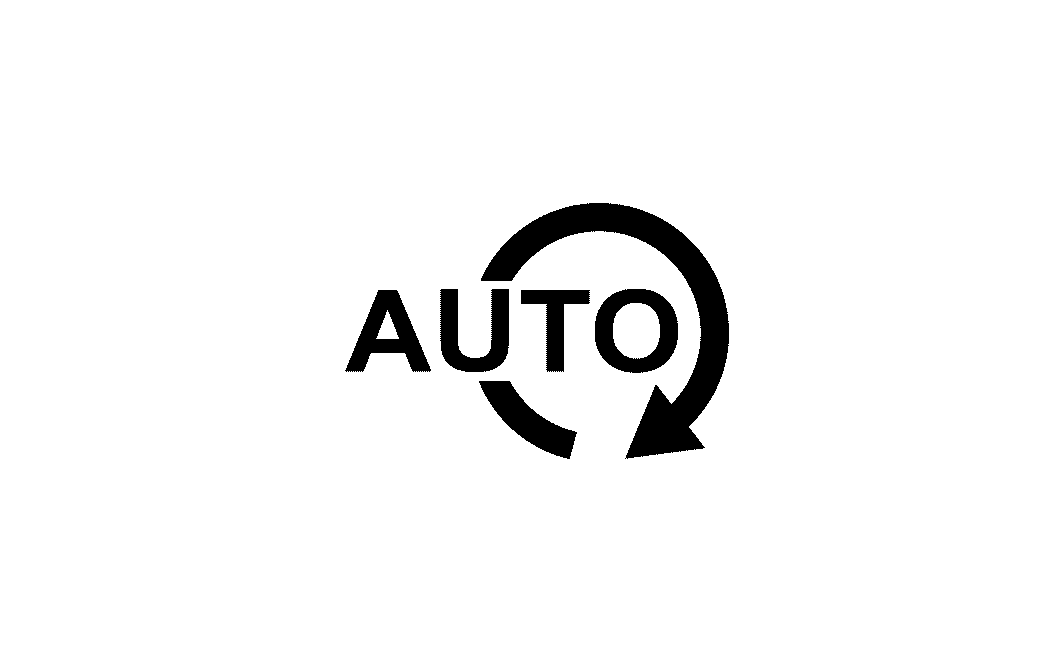

Operate		Normal	-	Courtesy of NISSAN NORTH AMERICA, INC.

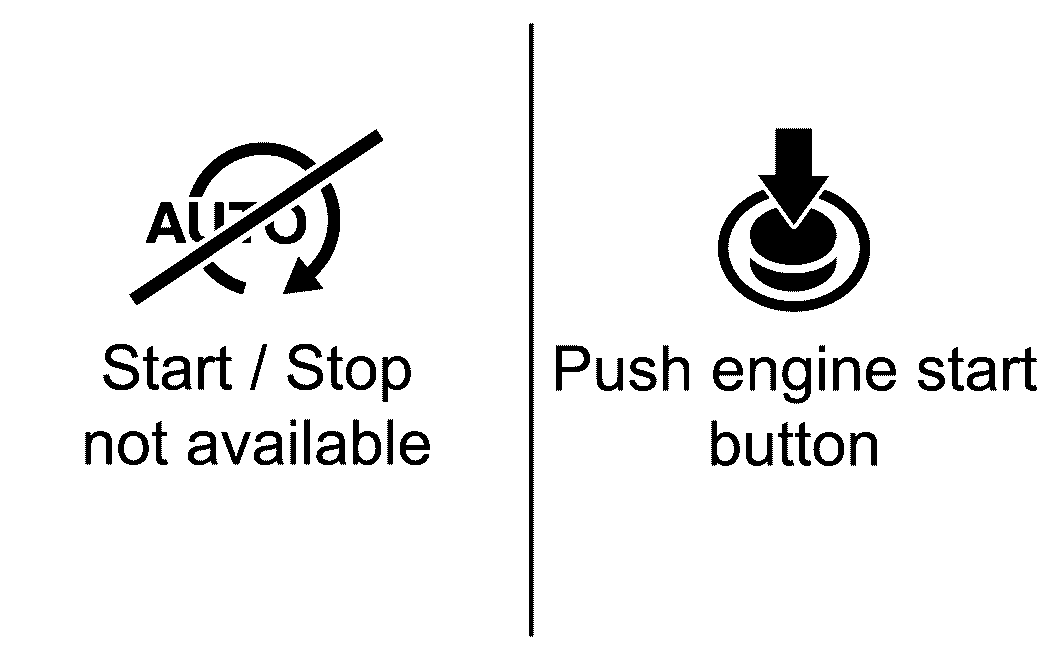

The engine does not restart	With intelligent key system	Hood open *1	Sound	Courtesy of NISSAN NORTH AMERICA, INC.

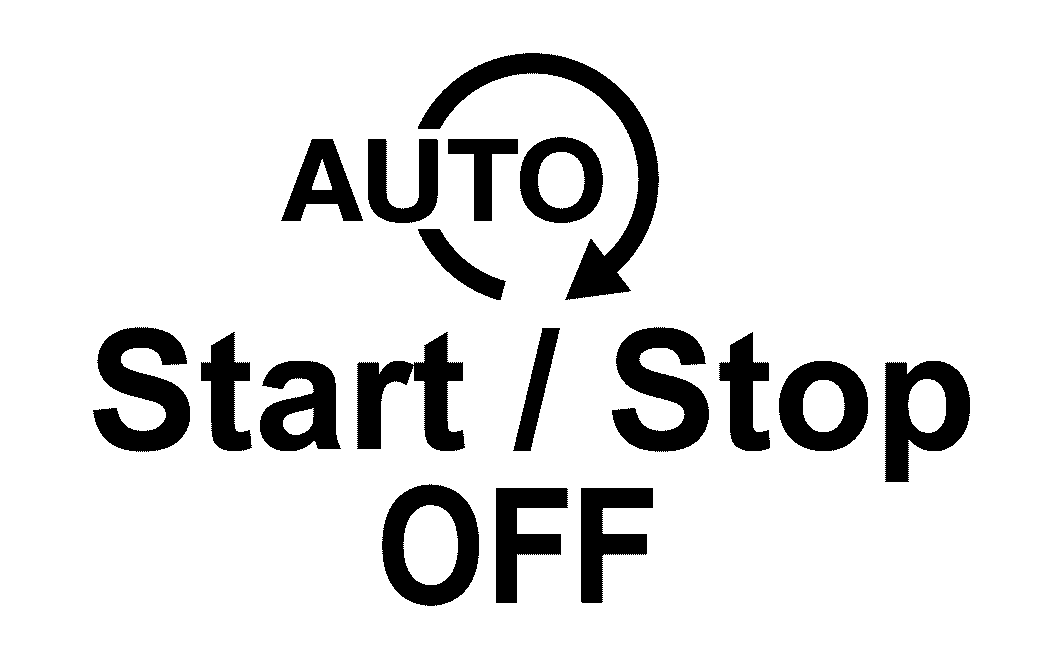

The idle start/stop system is OFF		When the start/stop OFF switch is ON. *2	-	Courtesy of NISSAN NORTH AMERICA, INC.
		When the brake pedal is not enough pressure.	-	Courtesy of NISSAN NORTH AMERICA, INC. NOTE: This display appears when Fuel saved and engine stop time is selected on the vehicle information display.

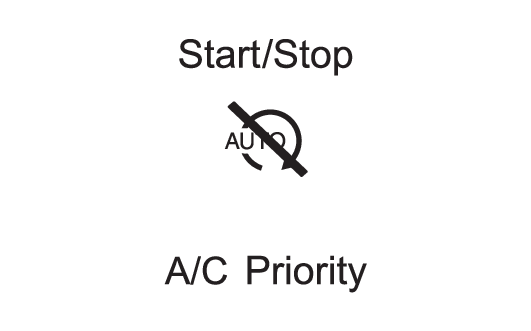

		When A/C is prioritized.	-	Courtesy of NISSAN NORTH AMERICA, INC. NOTE: This display appears when Fuel saved and engine stop time is selected on the vehicle information display.

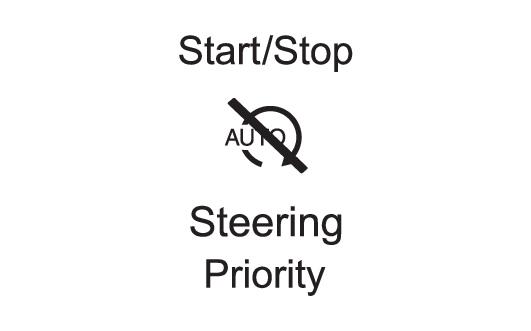

		When the steering wheel is being operated.	-	Courtesy of NISSAN NORTH AMERICA, INC. NOTE: This display appears when Fuel saved and engine stop time is selected on the vehicle information display.
		Others	-	-

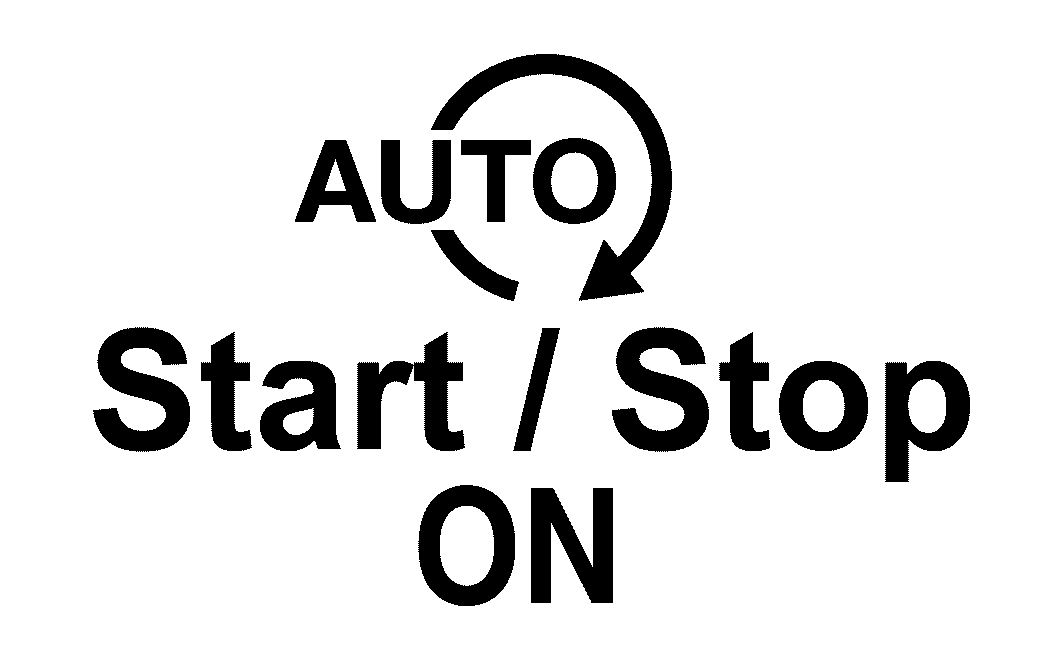

The idle start/stop system is ON.		When the start/stop OFF switch is OFF. *3	-	Courtesy of NISSAN NORTH AMERICA, INC.

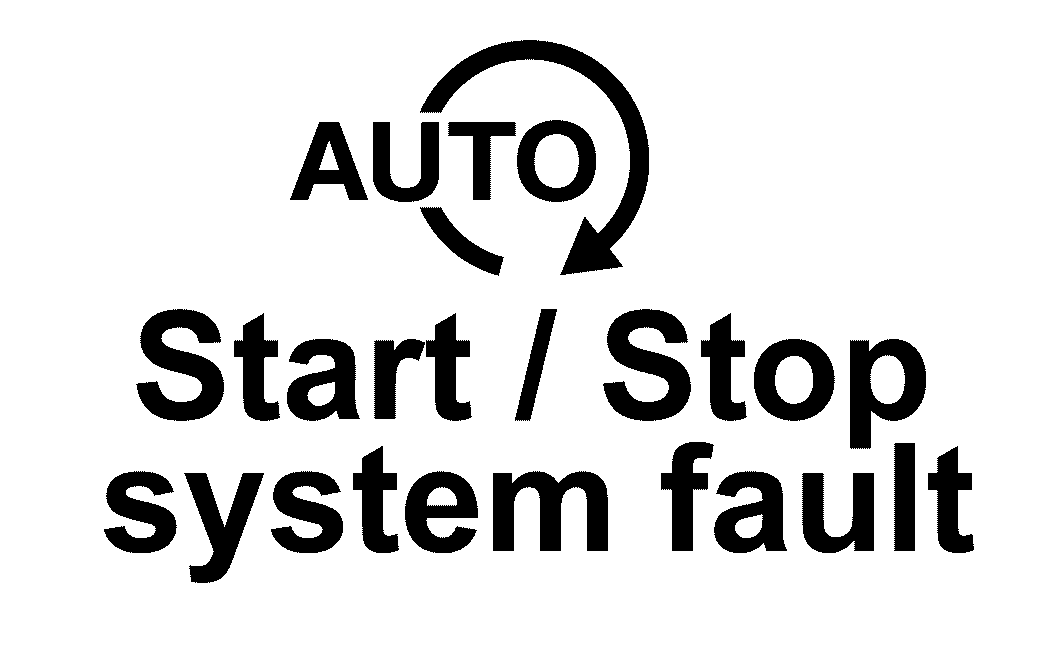

Fail-Safe		Malfunction of idle start/stop system	-	Courtesy of NISSAN NORTH AMERICA, INC.

*1: Engine is stalled after alert for 1.5 seconds.

*2: This is indicated only for 1.5 seconds after the start/stop OFF switch is turned from OFF to ON.

*3: This is indicated only for 1.5 seconds after the start/stop OFF switch is turned from ON to OFF.
