Diagnostic Procedures

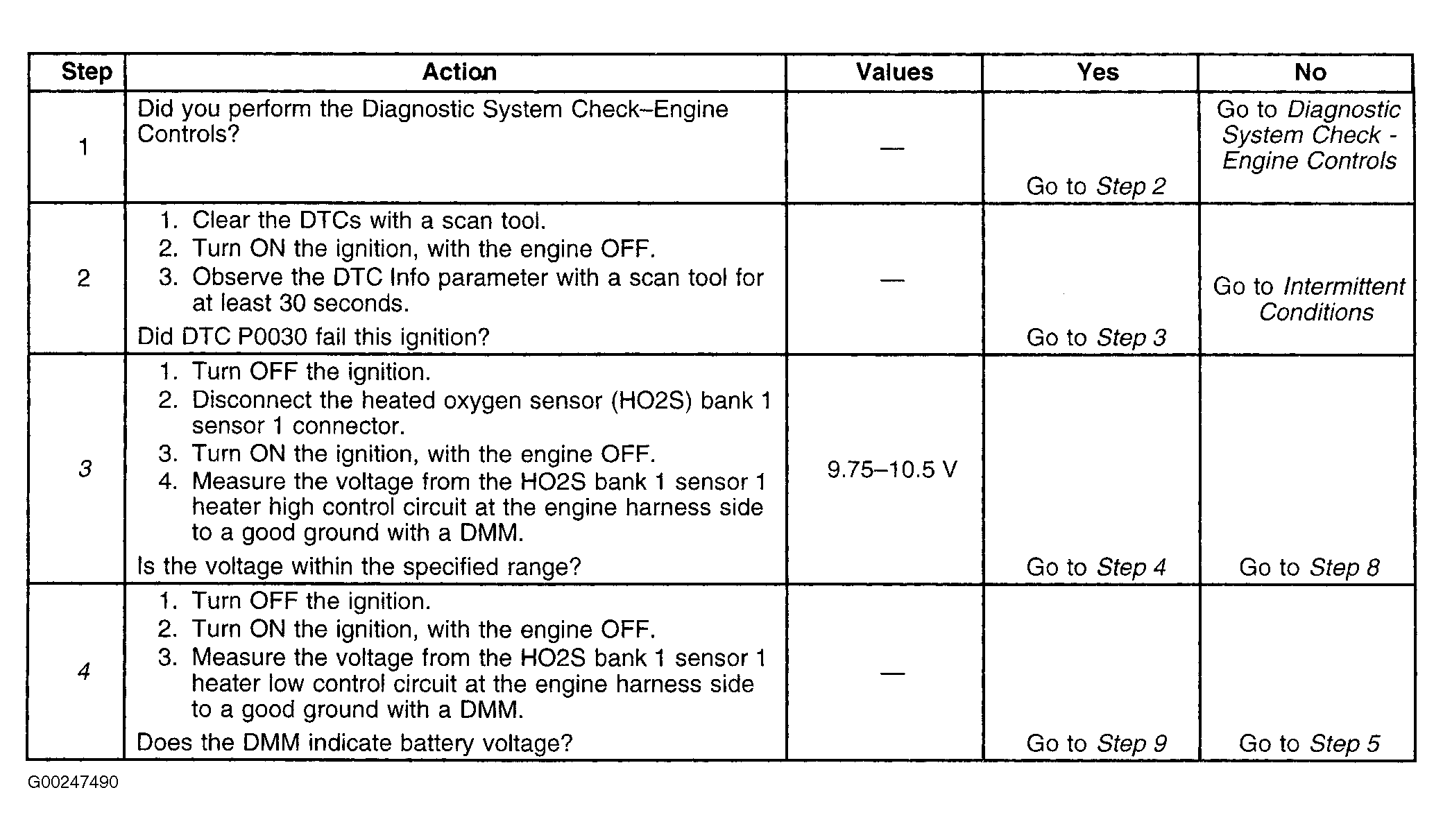

Fig 1: DTC P0030: HO2S Heater Control Circuit - Sensor 1 (Steps 1-4)
G00247490Courtesy of GENERAL MOTORS CORP.

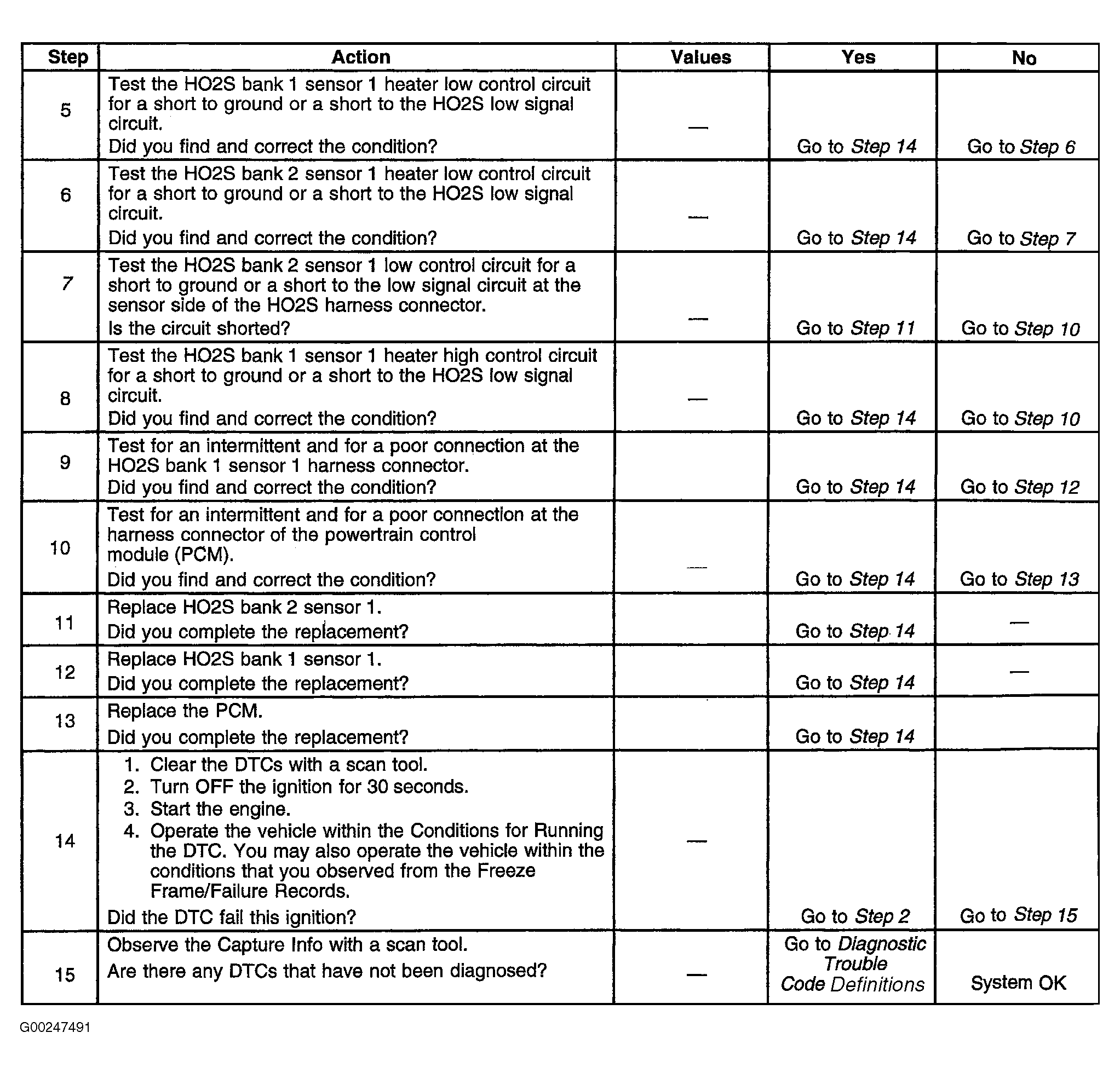

Fig 2: DTC P0030: HO2S Heater Control Circuit - Sensor 1 (Steps 5-15)
G00247491Courtesy of GENERAL MOTORS CORP.
