Pin Voltage Charts

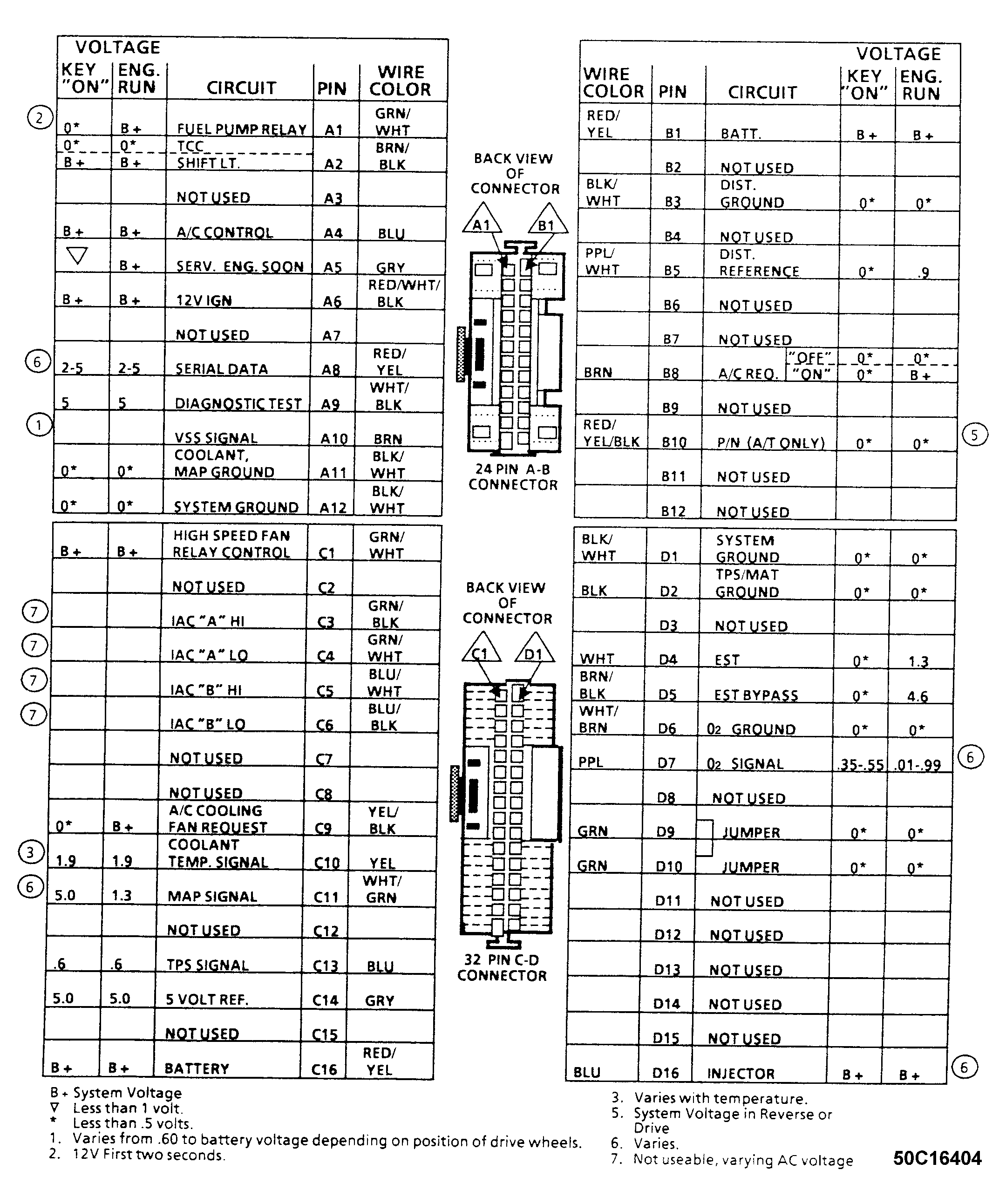

Fig 1: ECM Connector & Pin Voltages (1.6L)
G50C16404Courtesy of GENERAL MOTORS CORP.

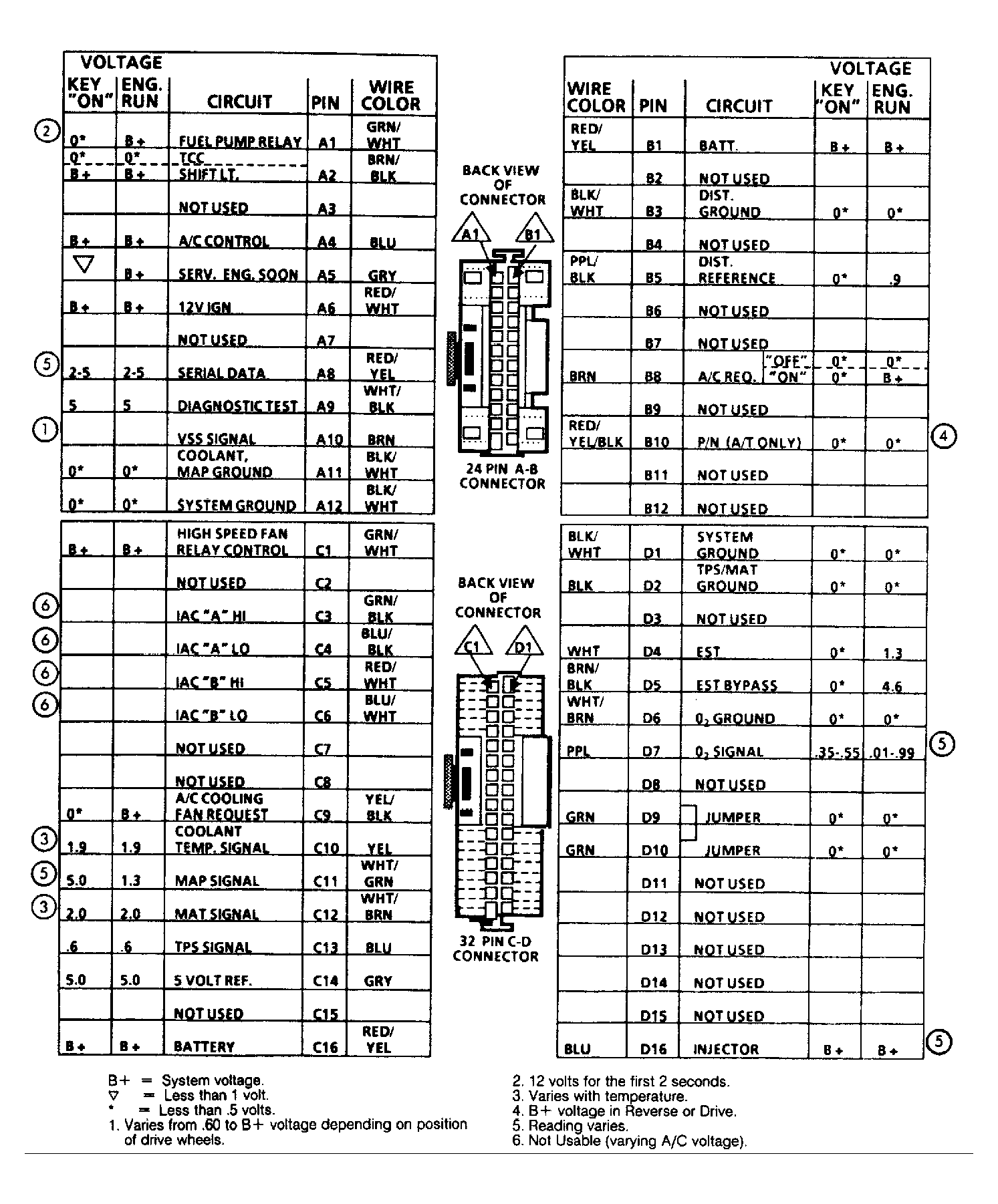

Fig 2: ECM Connector & Pin Voltages (2.0L)
G90E15564Courtesy of GENERAL MOTORS CORP.
