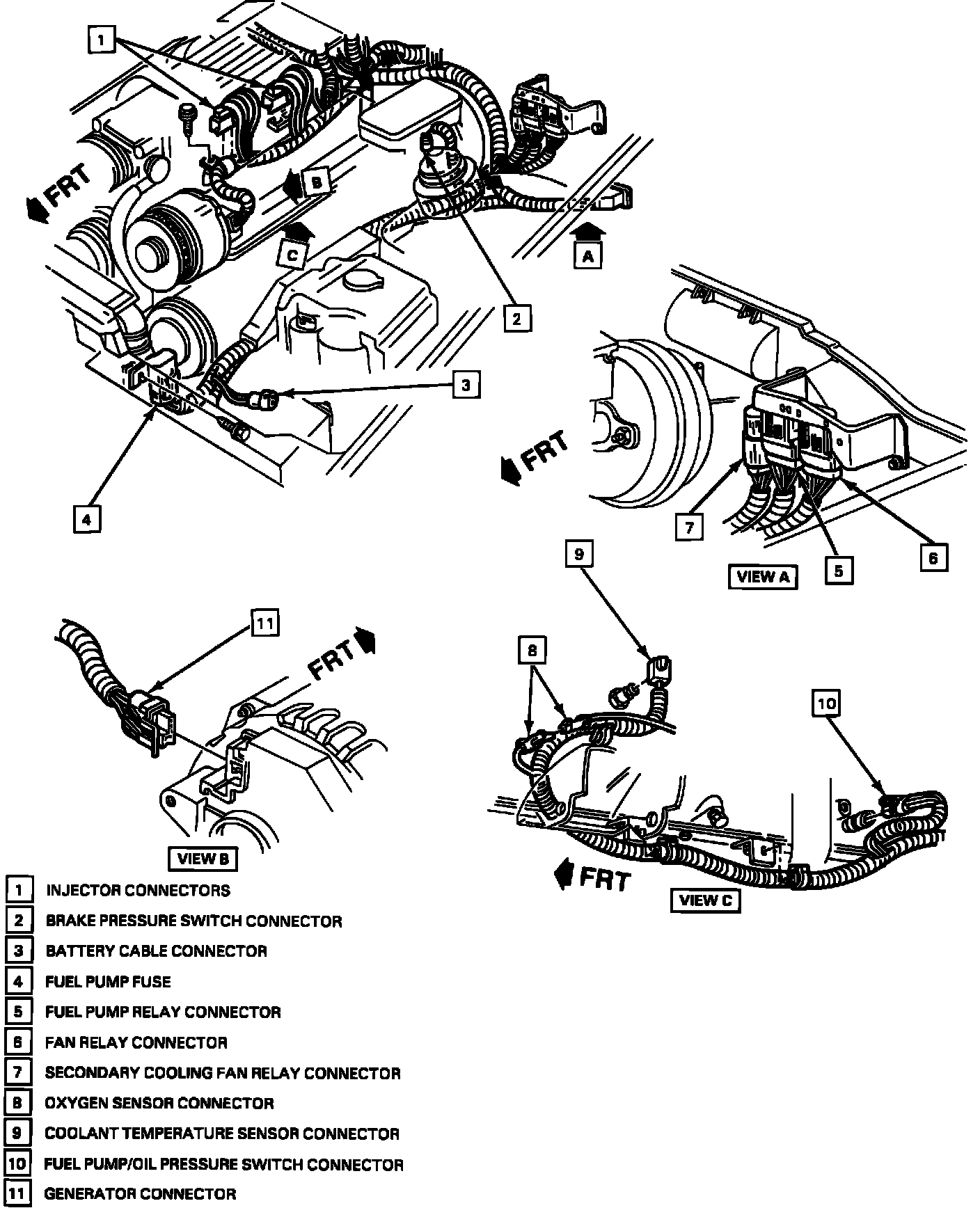

Left Side View of Engine
Pictorial View:
1 INJECTOR CONNECTORS
2 BRAKE PRESSURE SWITCH CONNECTOR
3 BATTERY CABLE CONNECTOR
4 FUEL PUMP FUSE
5 FUEL PUMP RELAY CONNECTOR
6 FAN RELAY CONNECTOR
7 SECONDARY COOLING FAN RELAY CONNECTOR
8 OXYGEN SENSOR CONNECTOR
9 COOLANT TEMPERATURE SENSOR CONNECTOR
10 FUEL PUMP/OIL PRESSURE SWITCH CONNECTOR
11 GENERATOR CONNECTOR
