Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount to the engine mount bracket.
  2. Install the engine mount upper nuts.

    Tighten

    Tighten the engine mount upper nuts to 53 N.m (39 lb ft).

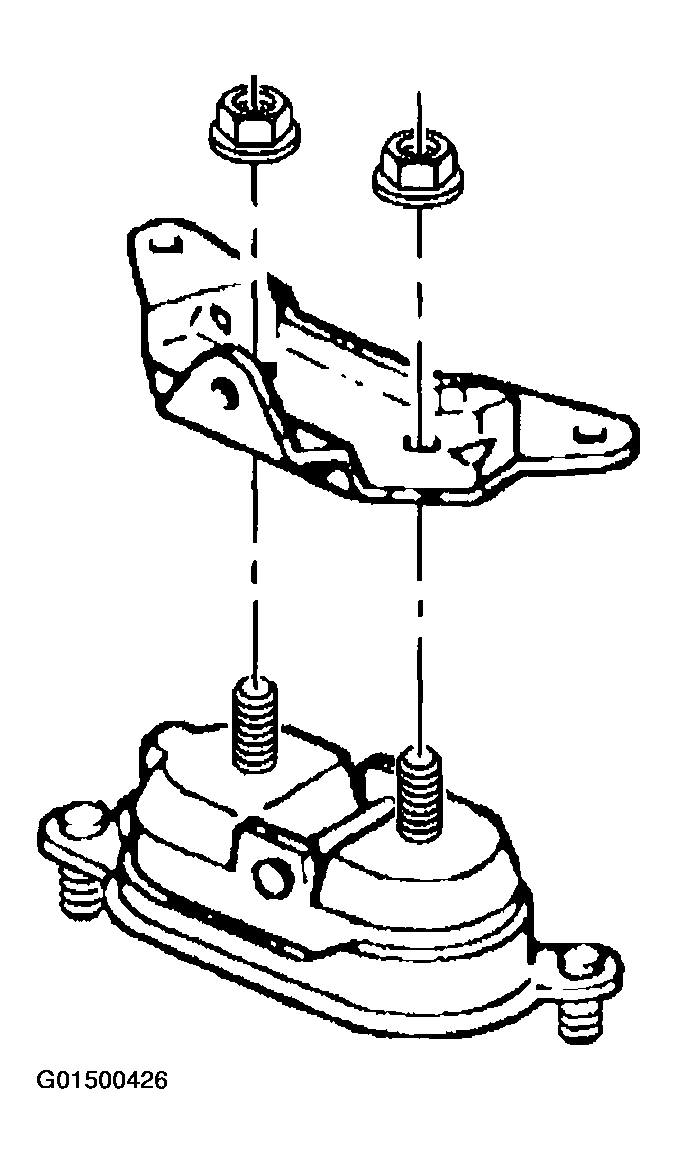

    Fig 1: Installing Engine Mount To Engine Mount Bracket
    G01500426Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount bracket with the engine mount to the oil pan.
  4. Install the engine mount bracket-to-oil pan bolts.

    Tighten

    Tighten the engine mount bracket bolts to 58 N.m (43 lb ft).

  5. Use the utility stand in order to lower the engine.

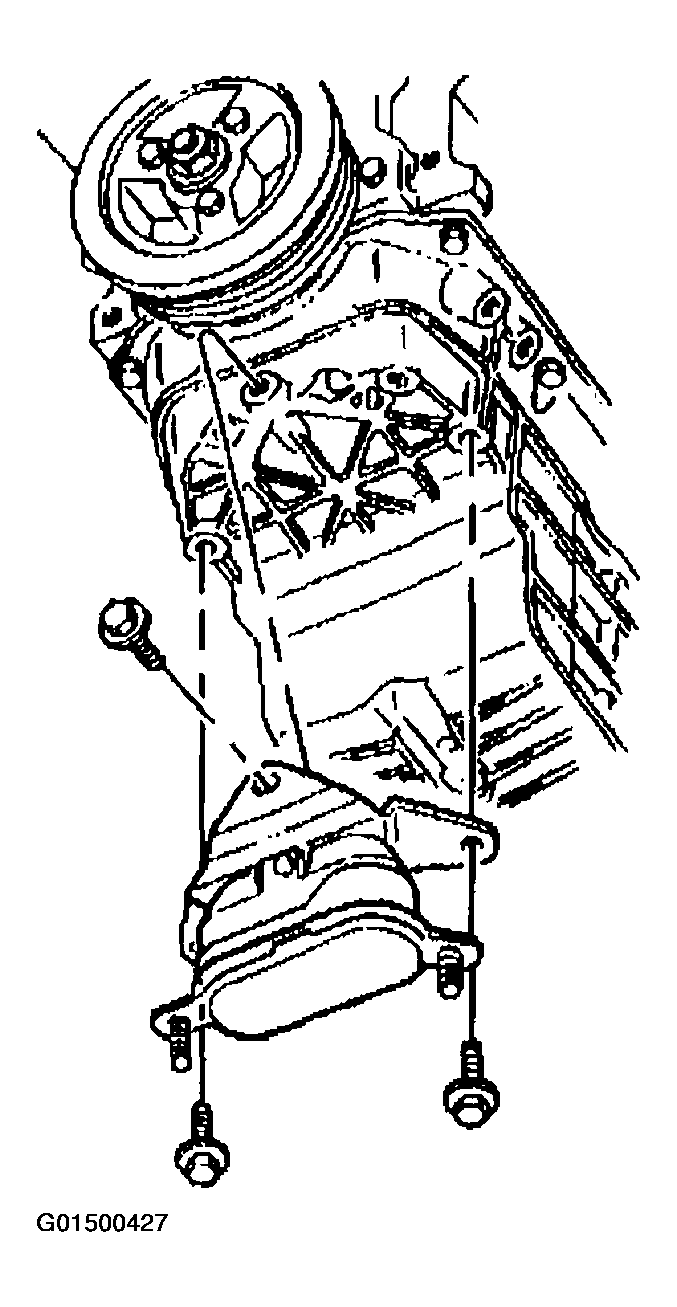

    Fig 2: Installing Engine Mount Bracket With Engine Mount
    G01500427Courtesy of GENERAL MOTORS CORP.
  6. Install the engine mount lower nuts.

    Tighten

    Tighten the engine mount lower nuts to 47 N.m (35 lb ft).

  7. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
  8. Install the right front wheel and tire.
  9. Connect the three-way catalytic converter pipe to the engine right side exhaust manifold.
  10. Lower the vehicle.
  11. Install the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .
  12. Install the throttle body air inlet duct.
  13. Connect the battery ground (negative) cable.

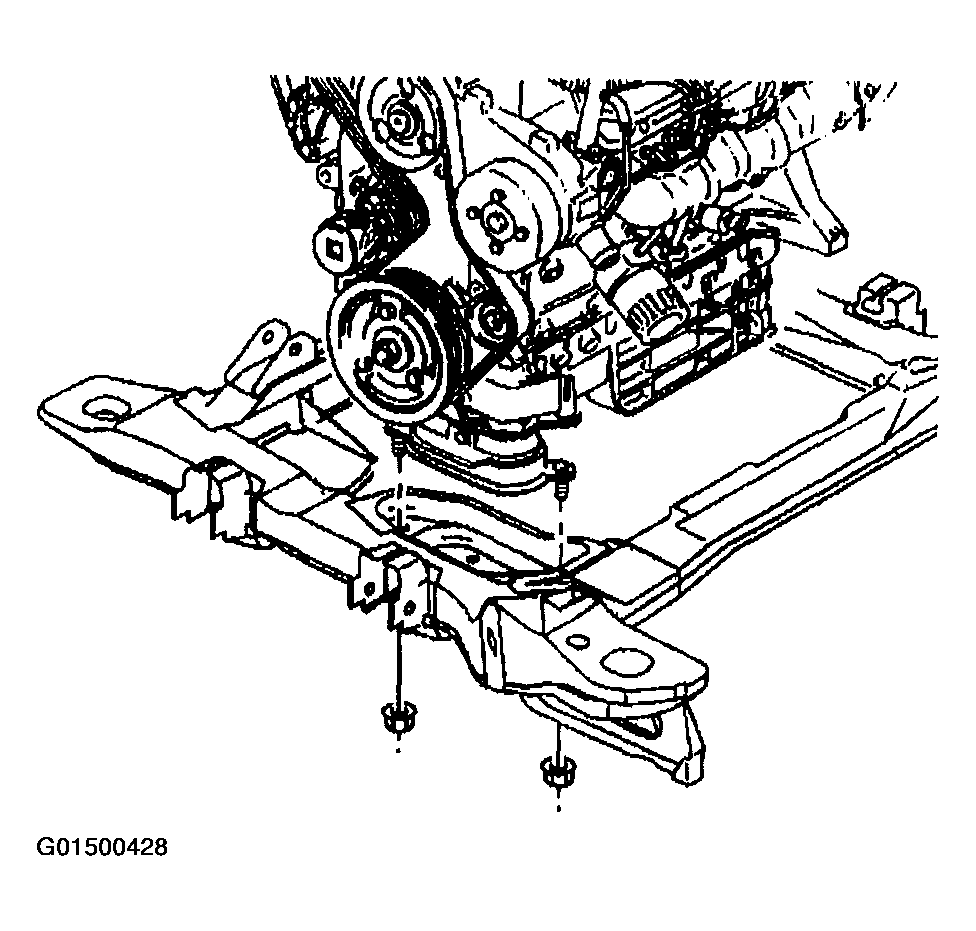

    Fig 3: Installing Engine Mount Lower Nuts
    G01500428Courtesy of GENERAL MOTORS CORP.
