Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood to the vehicle with an assistant.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the hood hinge bolts to the upper hood hinges (1).

    Tighten

    Tighten the bolts to 17 N.m (13 lb ft).

  3. Install the sound insulator (2) to the hood.
  4. Install the sound insulator retainers (3) to the hood.
  5. Remove protective covering from the body panels.
  6. Adjust the hood. Refer to Hood Adjustment .

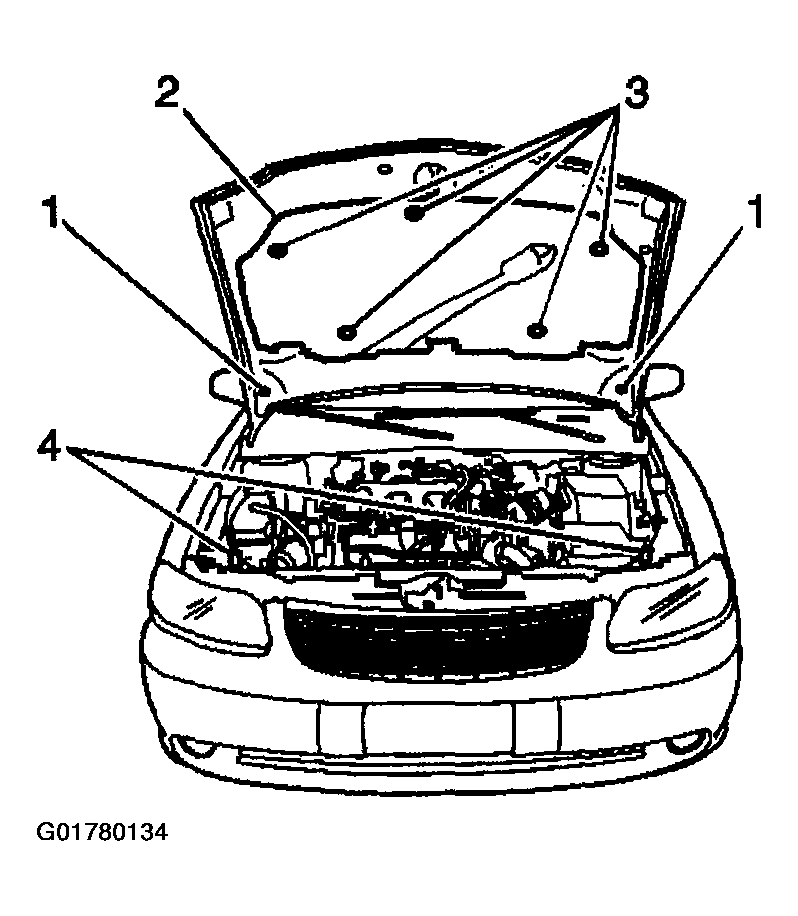

    Fig 1: Locating Hood Components
    G01780134Courtesy of GENERAL MOTORS CORP.
