Information Bus: Diagrams

Gateway - Sheet 07

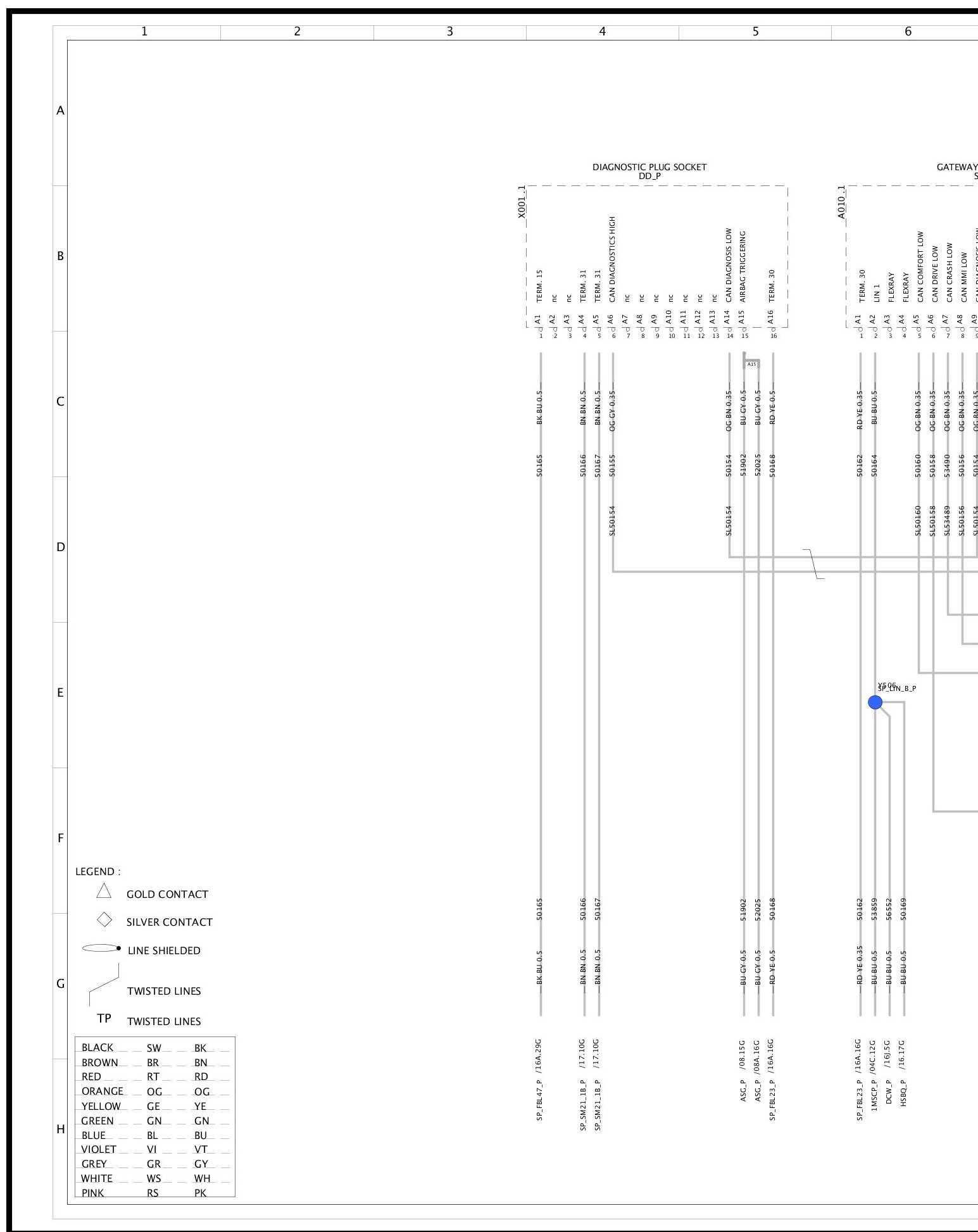

Gateway - Sheet 07 (Part 1):

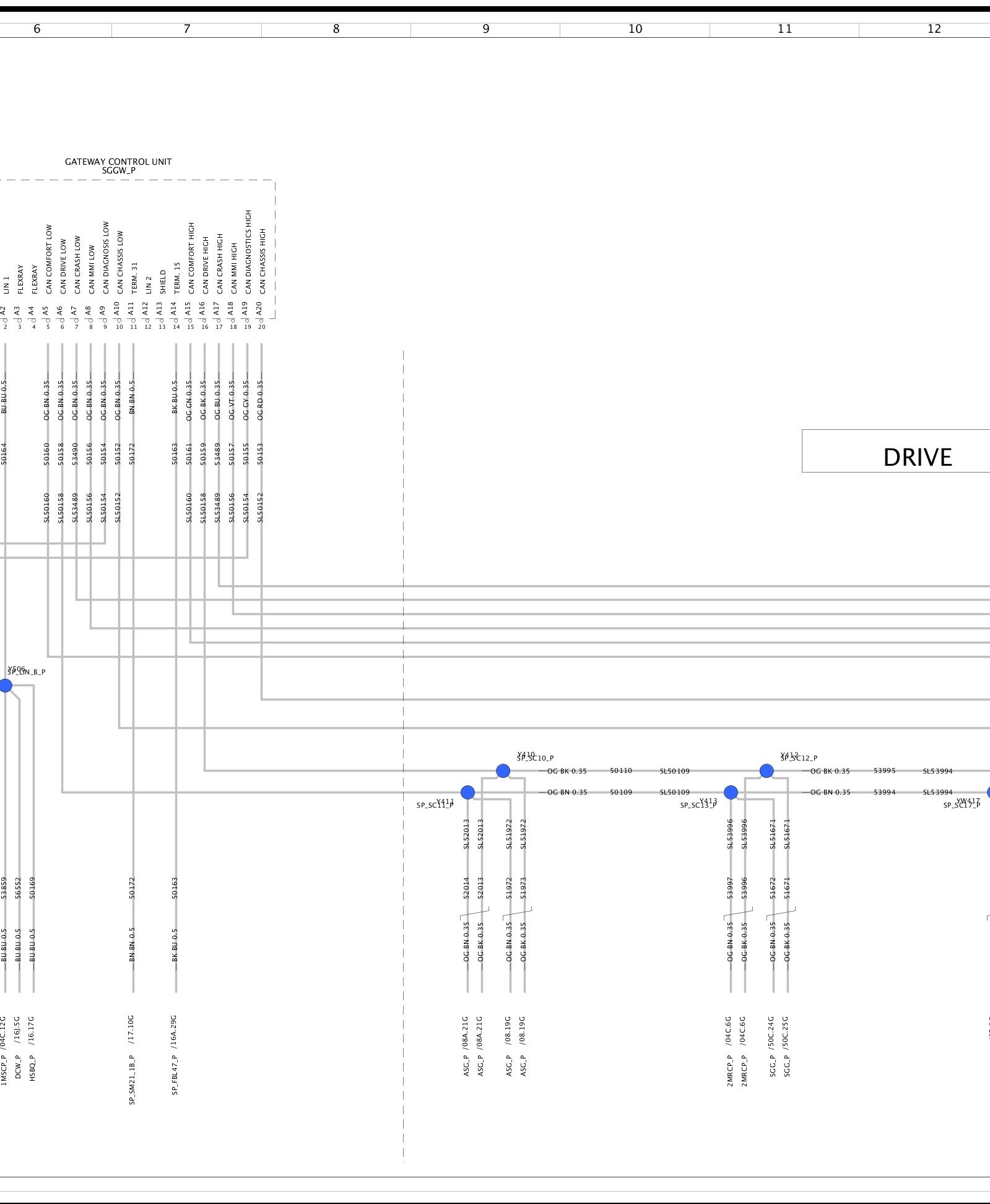

Gateway - Sheet 07 (Part 2):

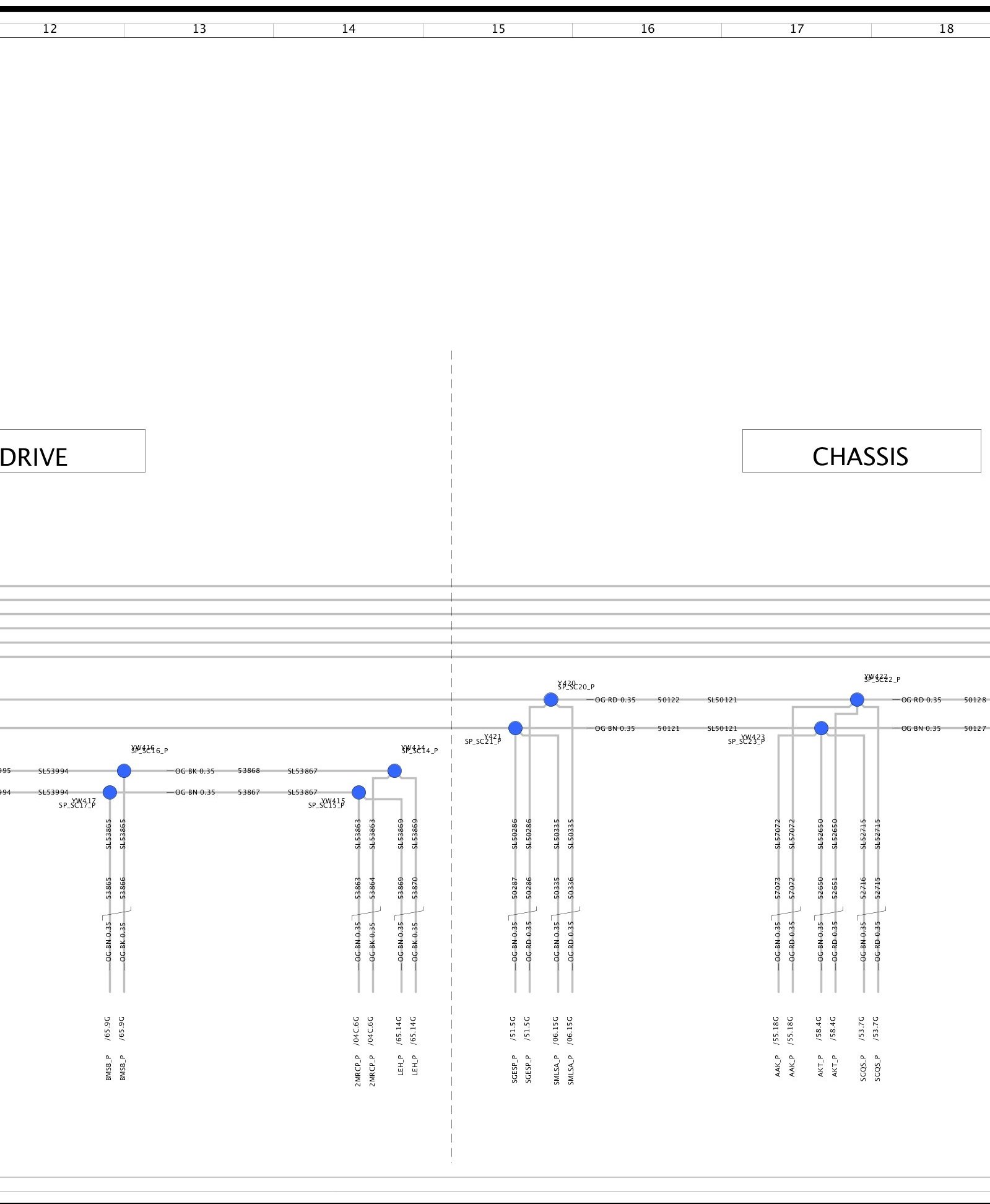

Gateway - Sheet 07 (Part 3):

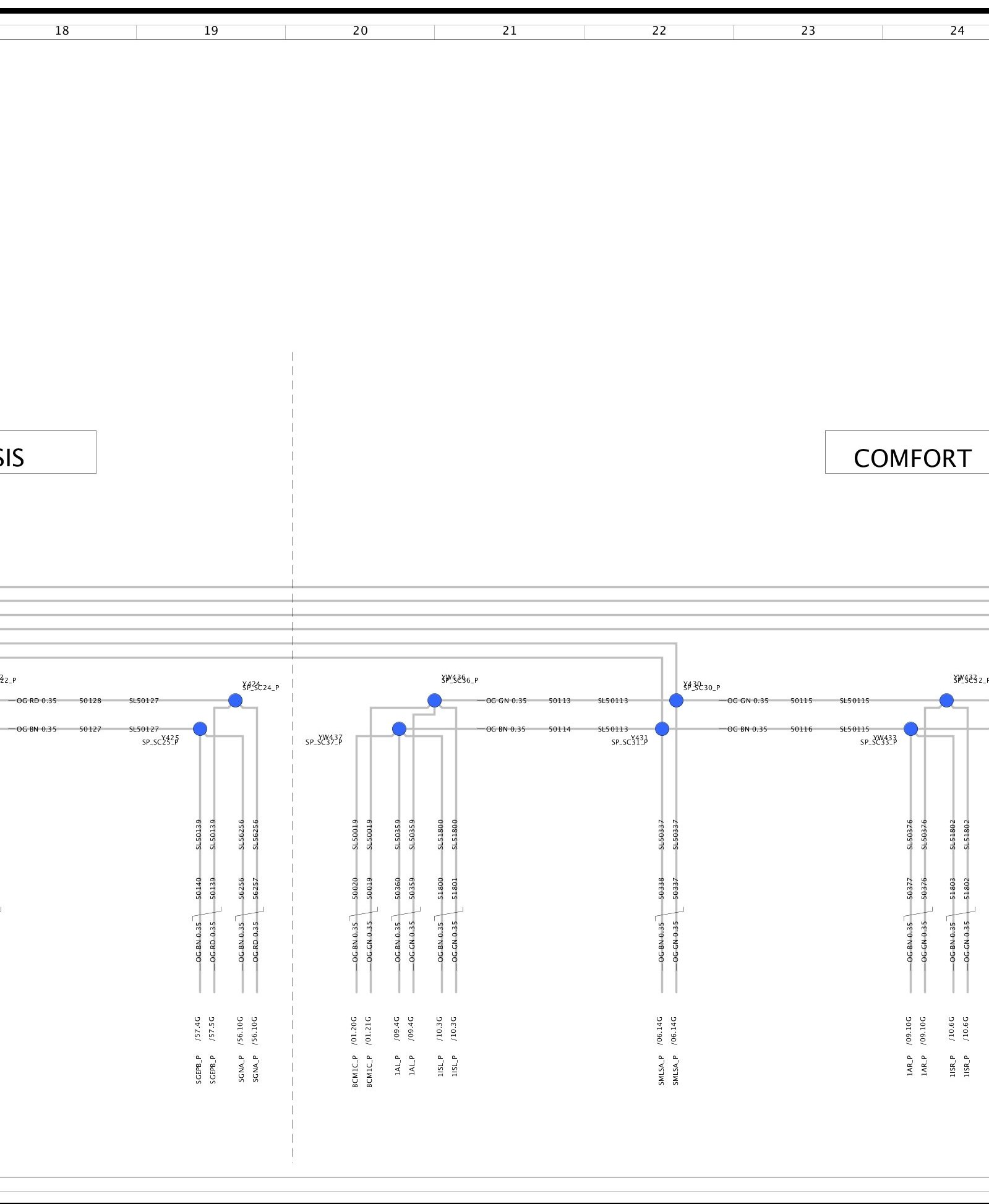

Gateway - Sheet 07 (Part 4):

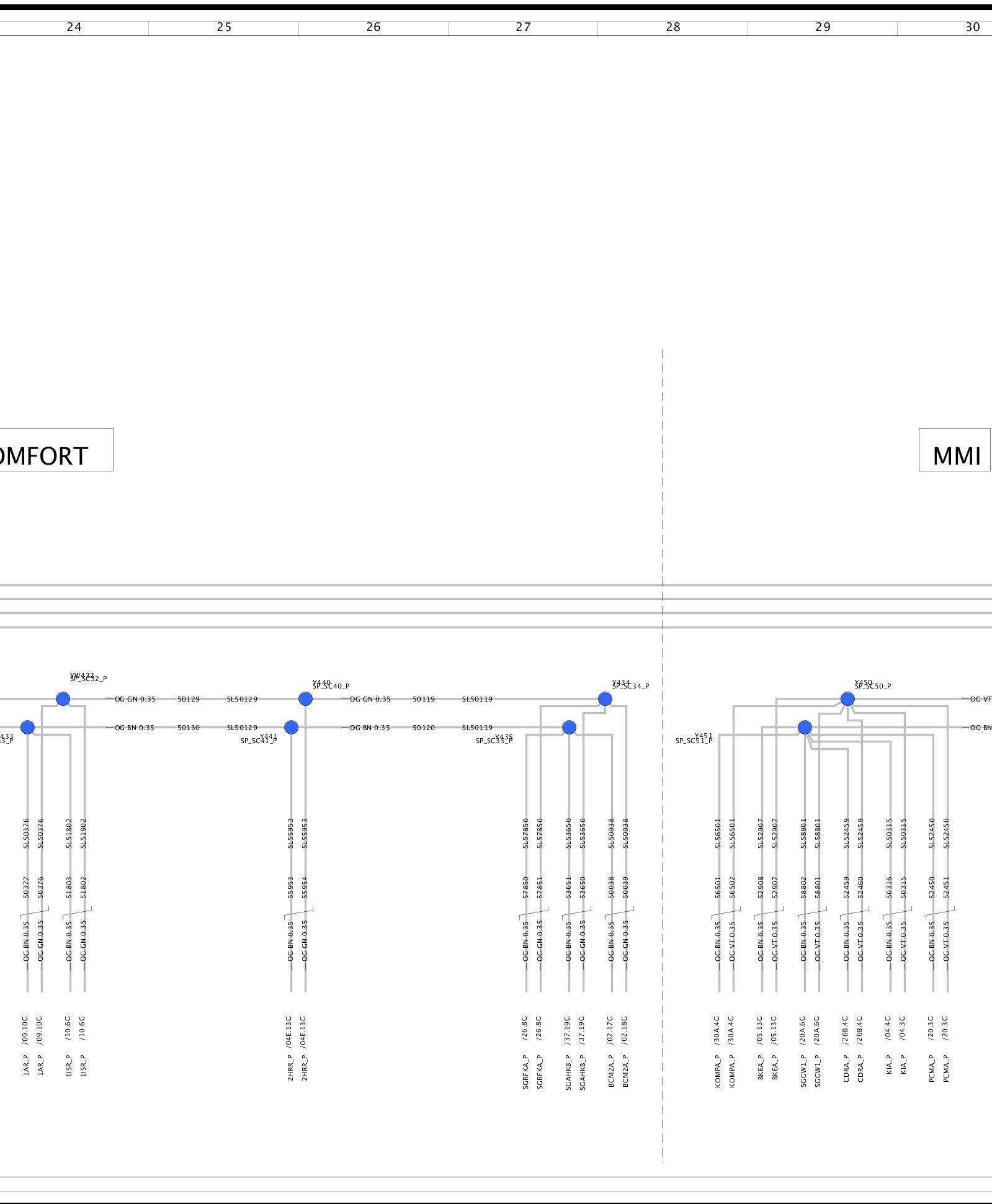

Gateway - Sheet 07 (Part 5):

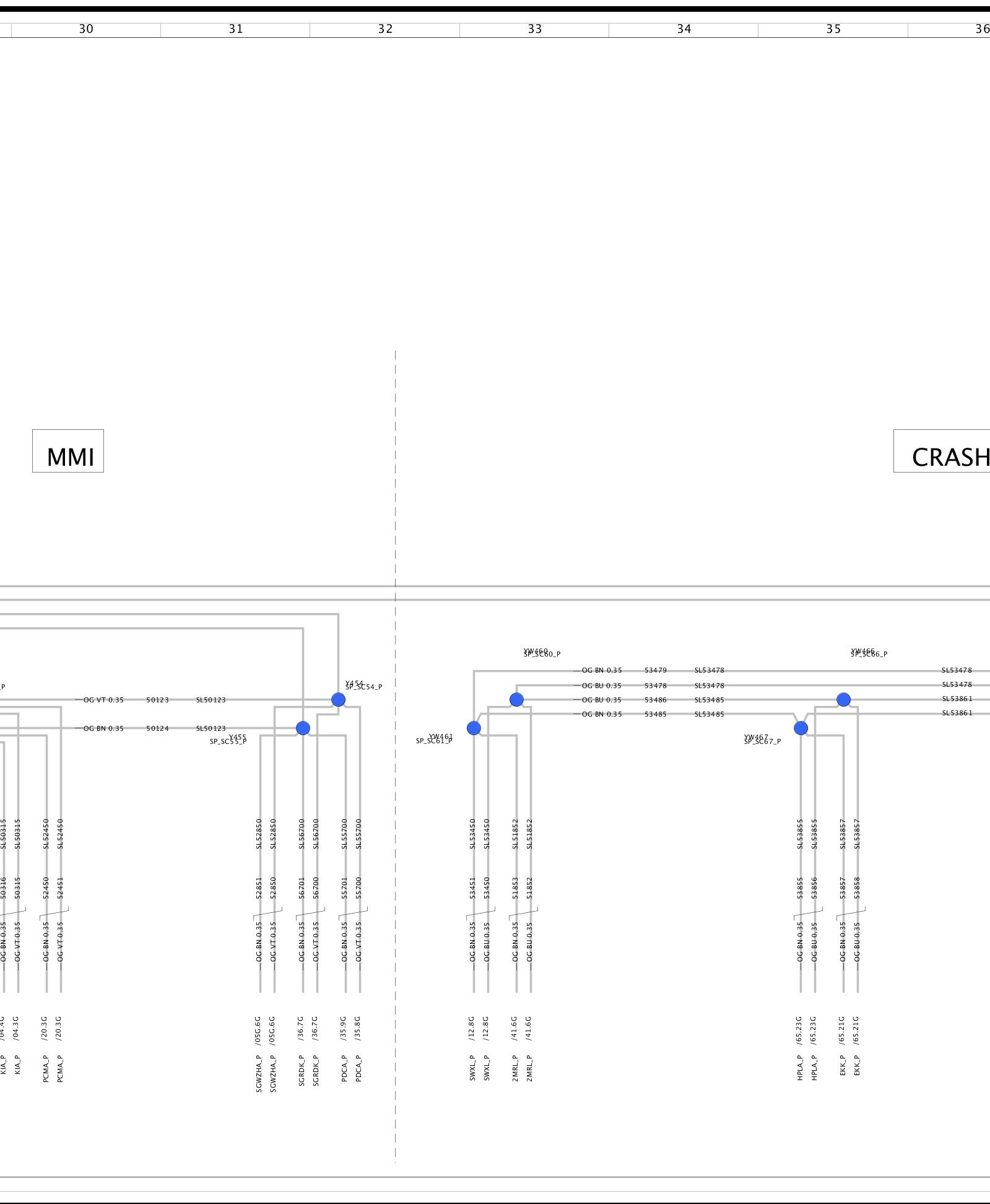

Gateway - Sheet 07 (Part 6):

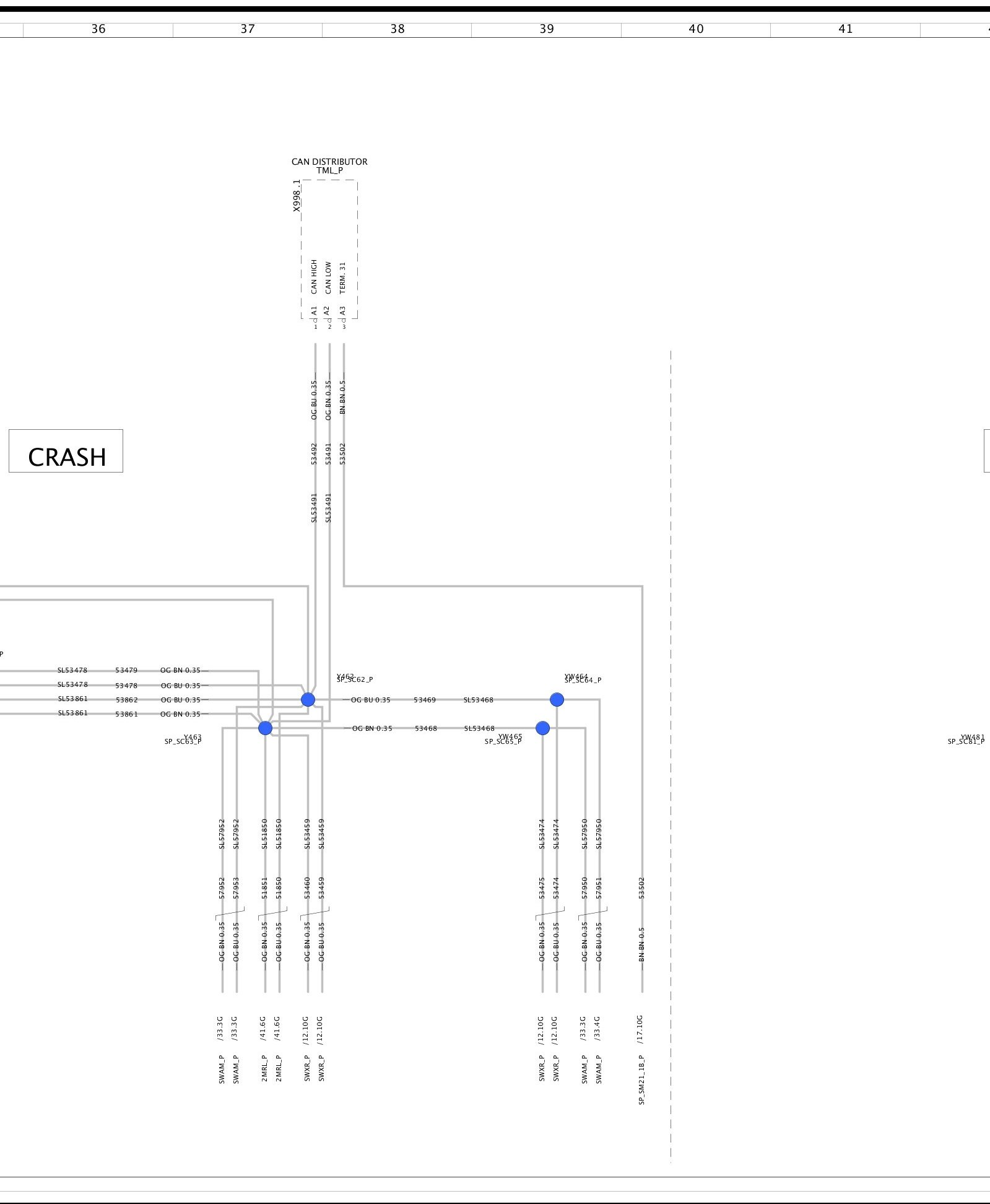

Gateway - Sheet 07 (Part 7):

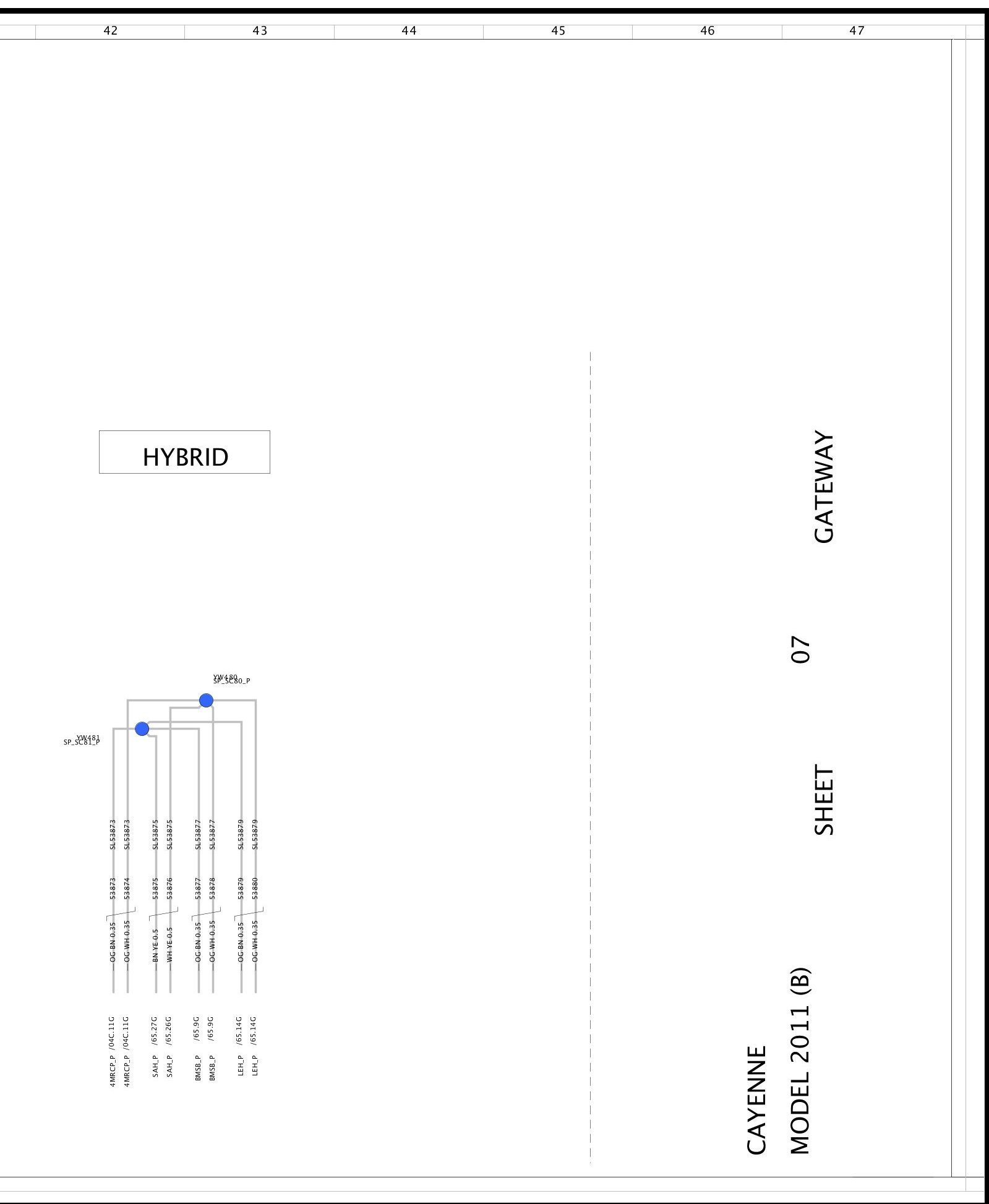

Gateway - Sheet 07 (Part 8):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
