Steering

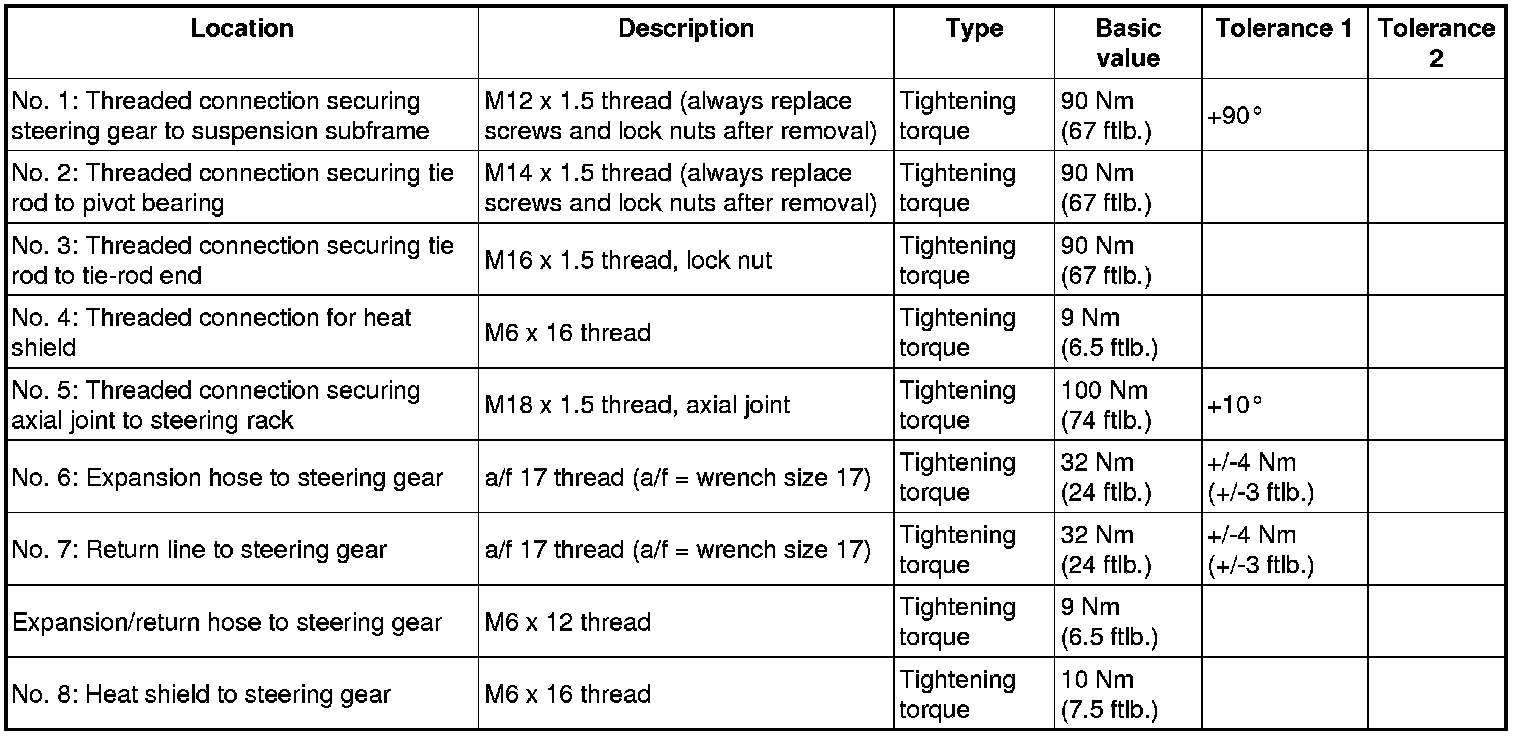

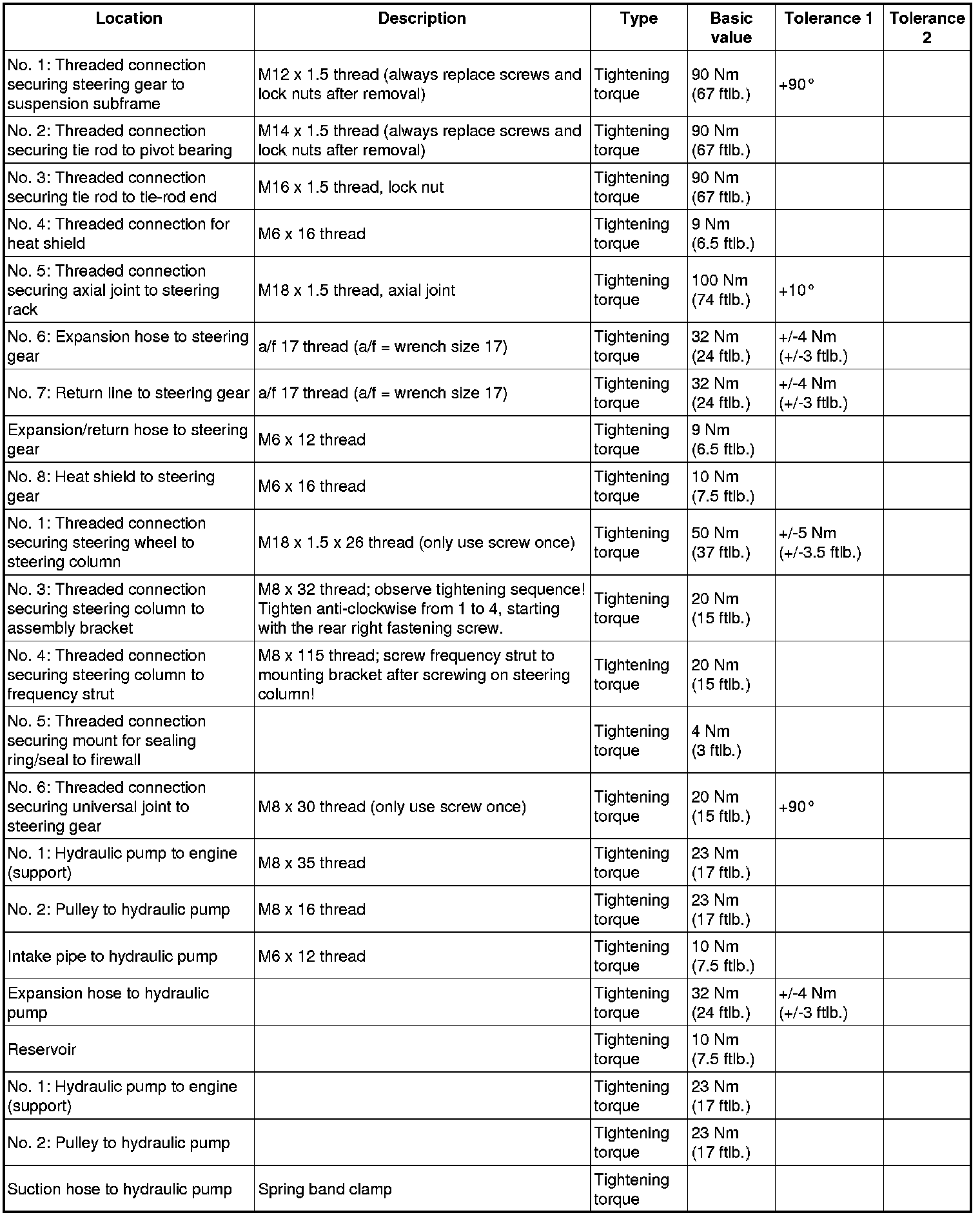

WM 4X00IN Tightening torques for steering

Technical values









Technical values

Steering 1

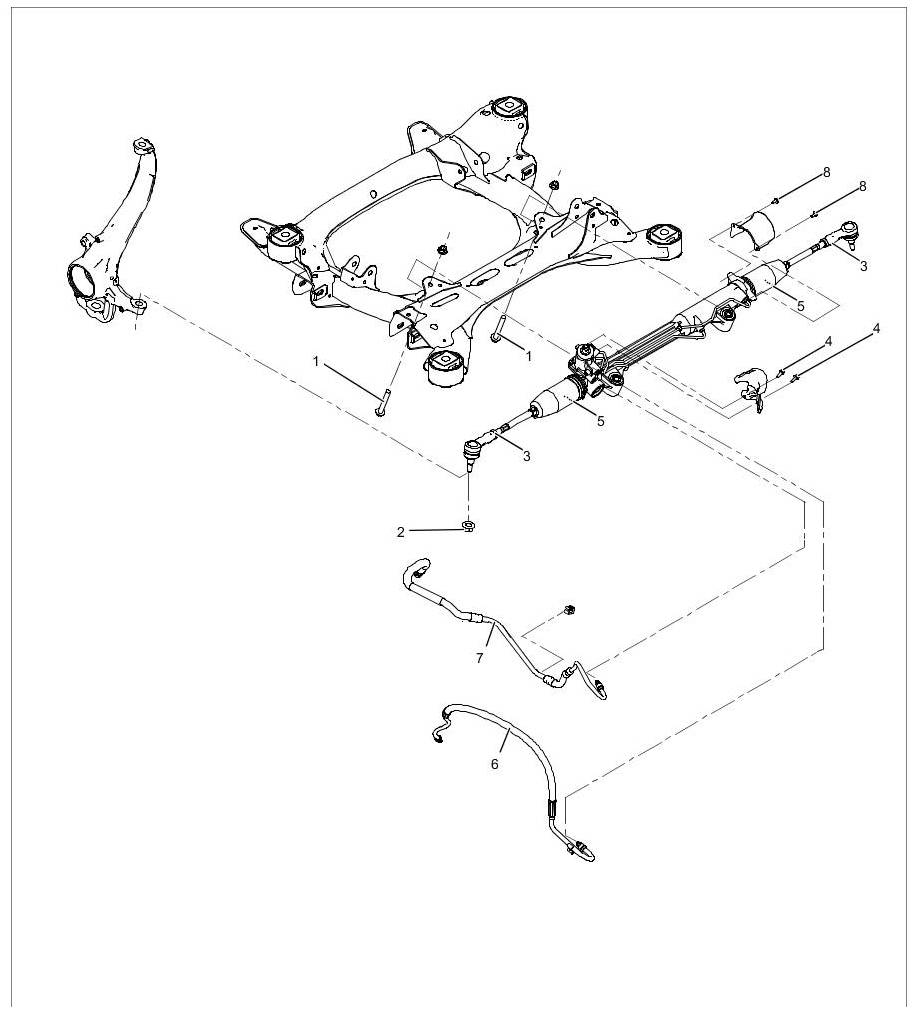

Steering gear (shown as an example)

Steering wiring 1

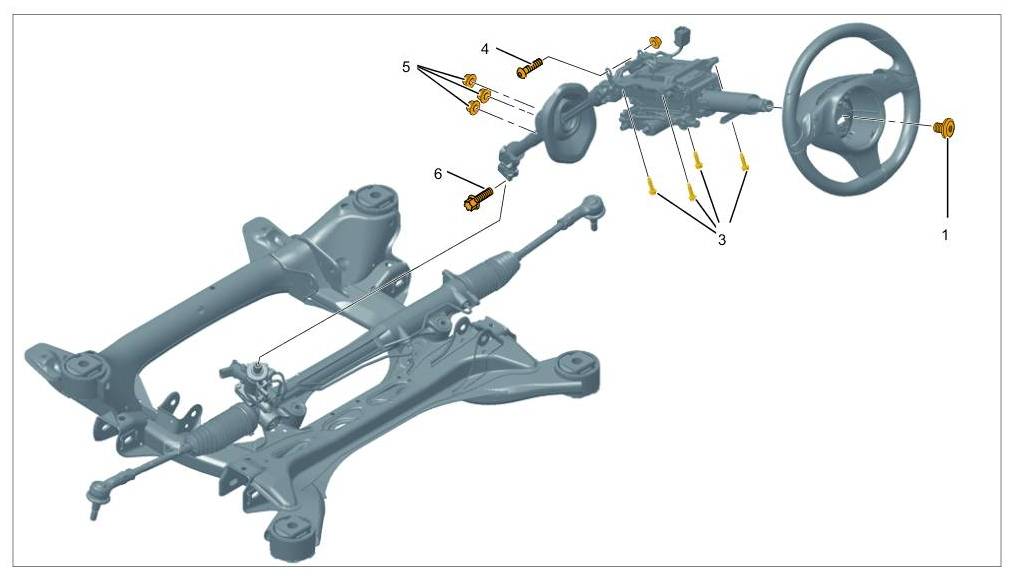

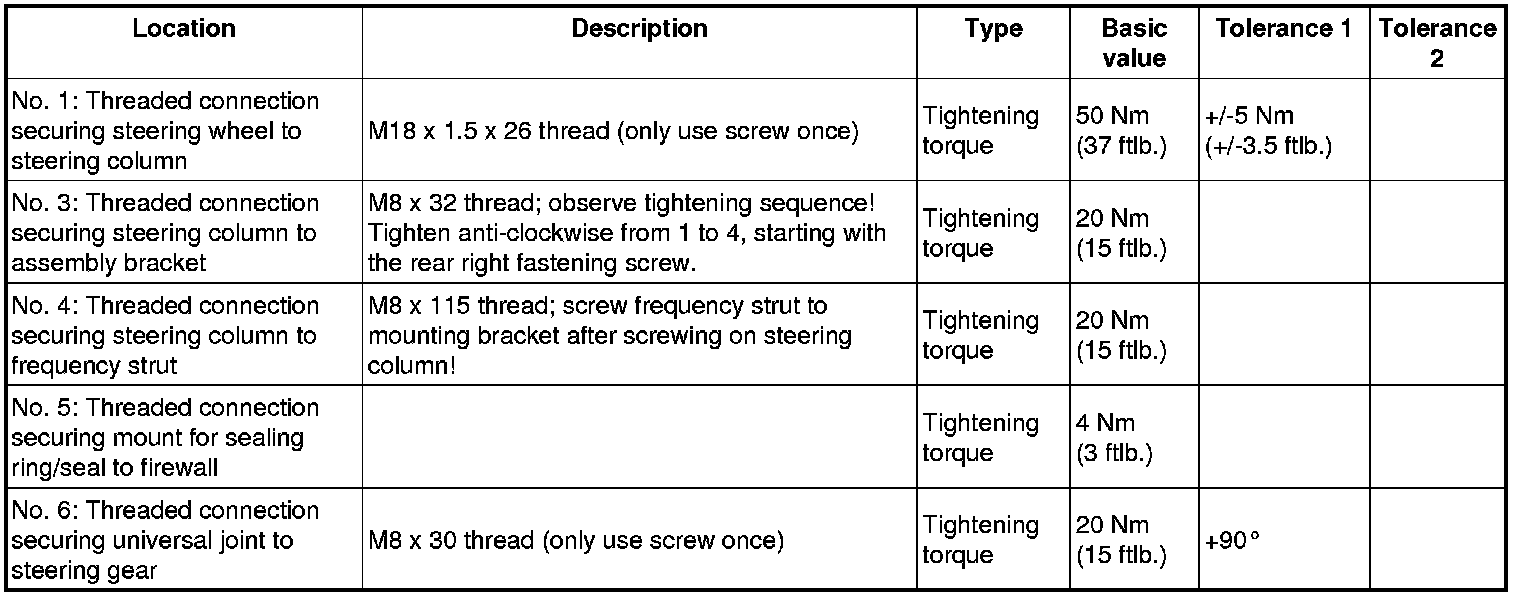

Steering column 1

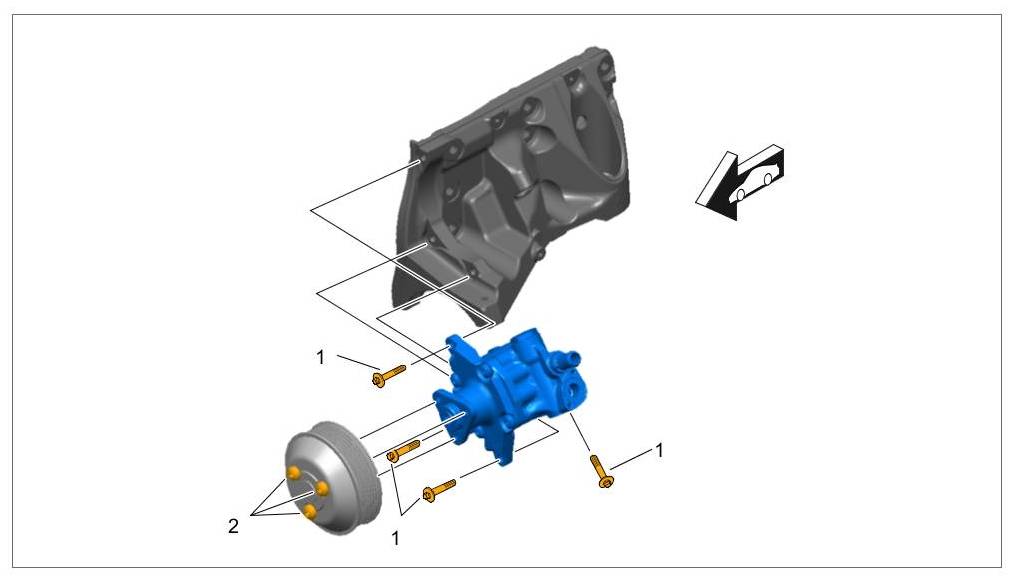

Hydraulic pump V8 4.8 DFI









Hydraulic pump V8

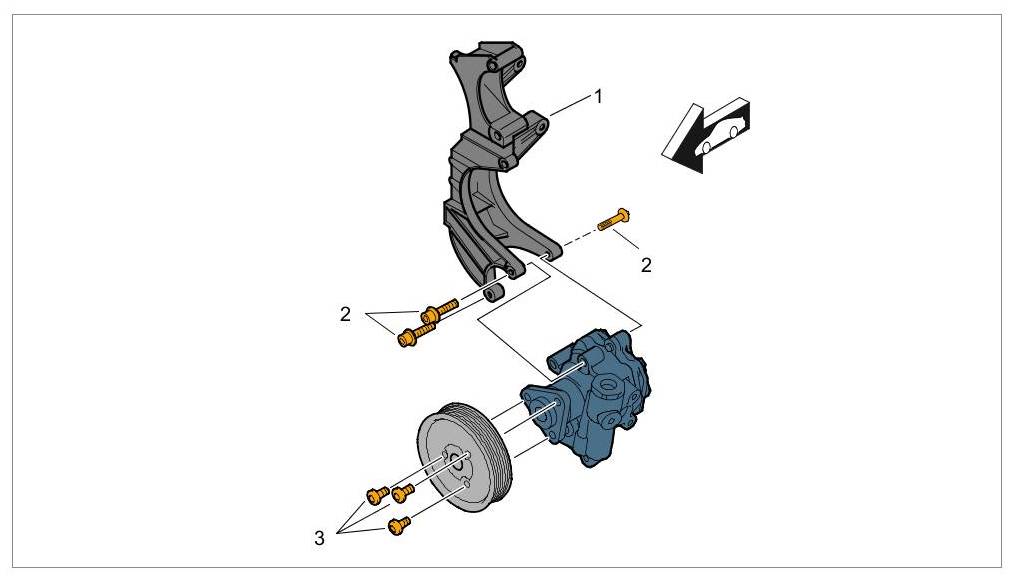

Power-steering pump V6 3.0 TDI









Hydraulic pump TDI

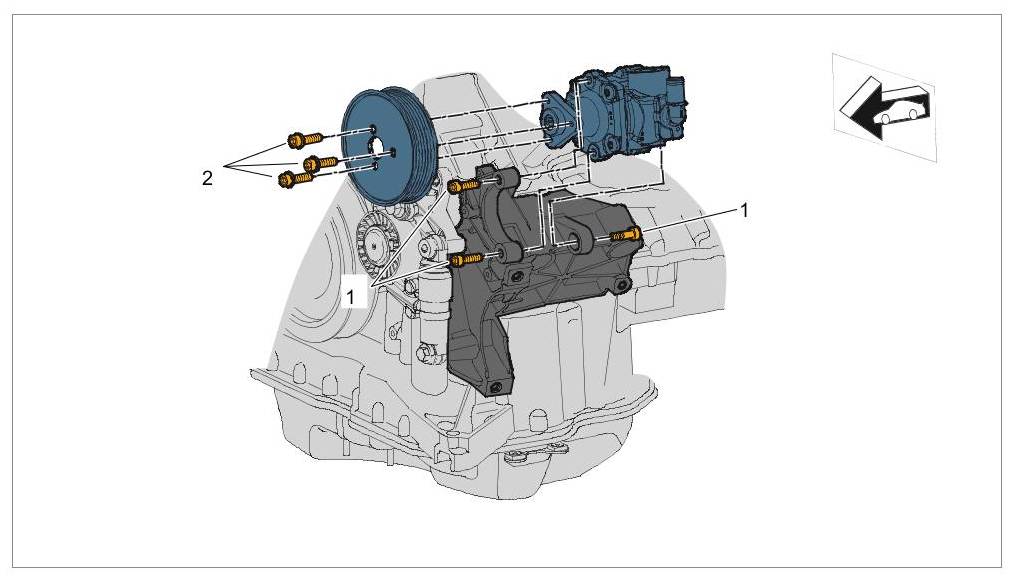

Cayenne V6 3.6 DFI









Hydraulic pump V6
