Fuses

Fuse Location and Assignments

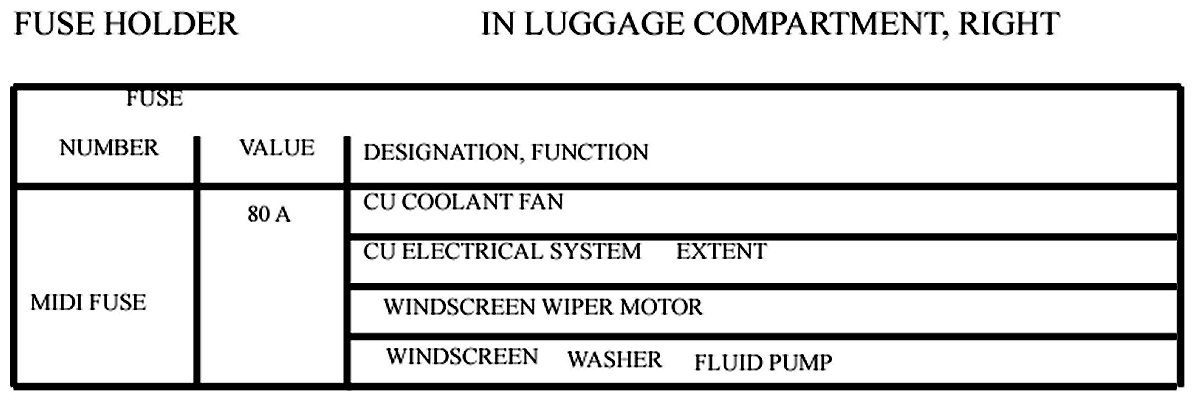

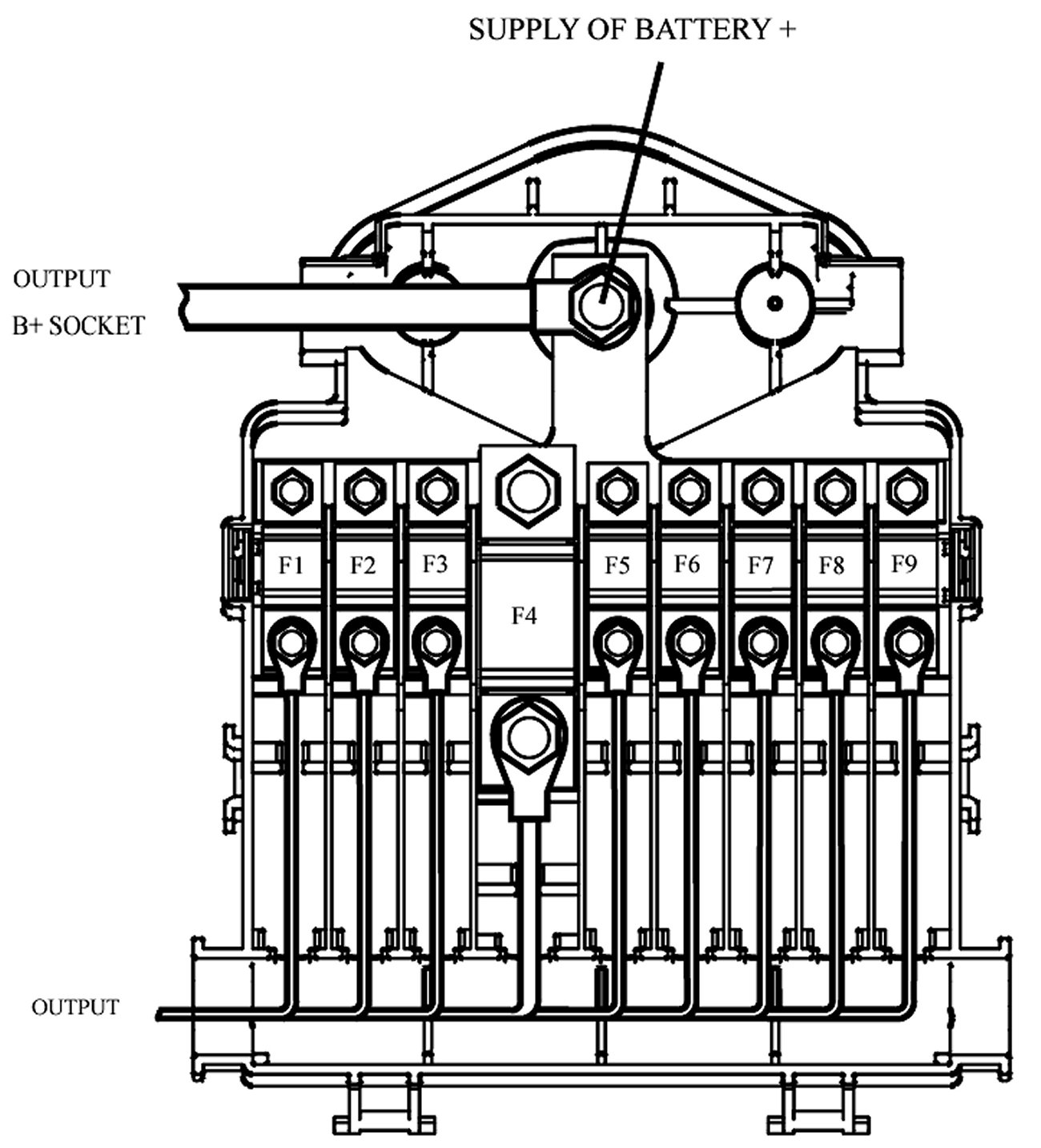

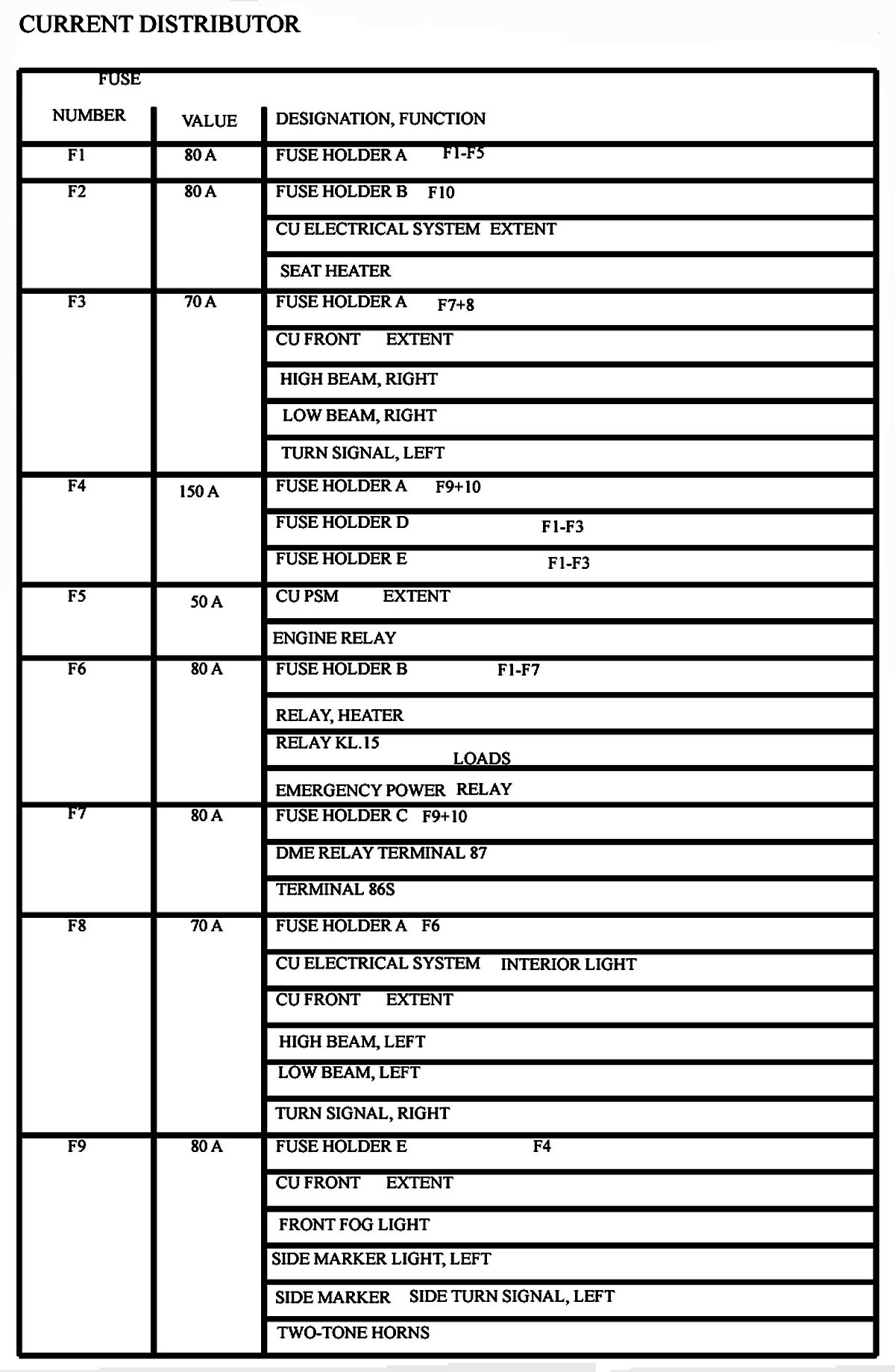

Current Distributor














The current distributor is located in the luggage compartment to the right.

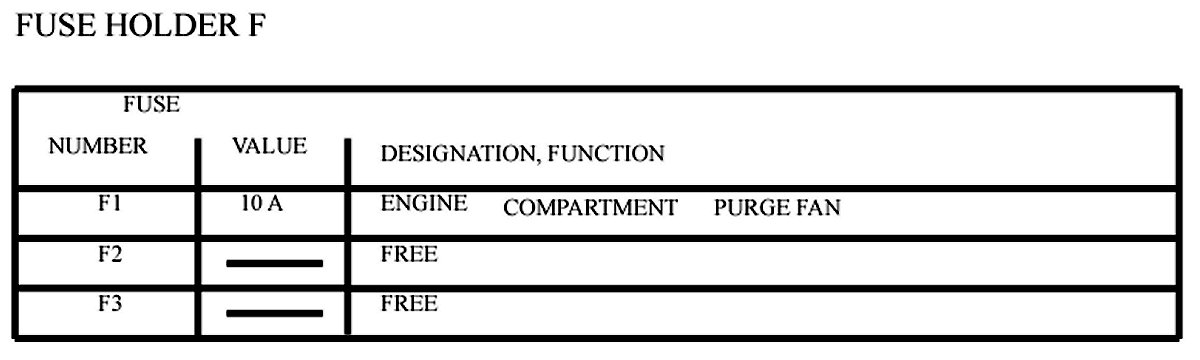

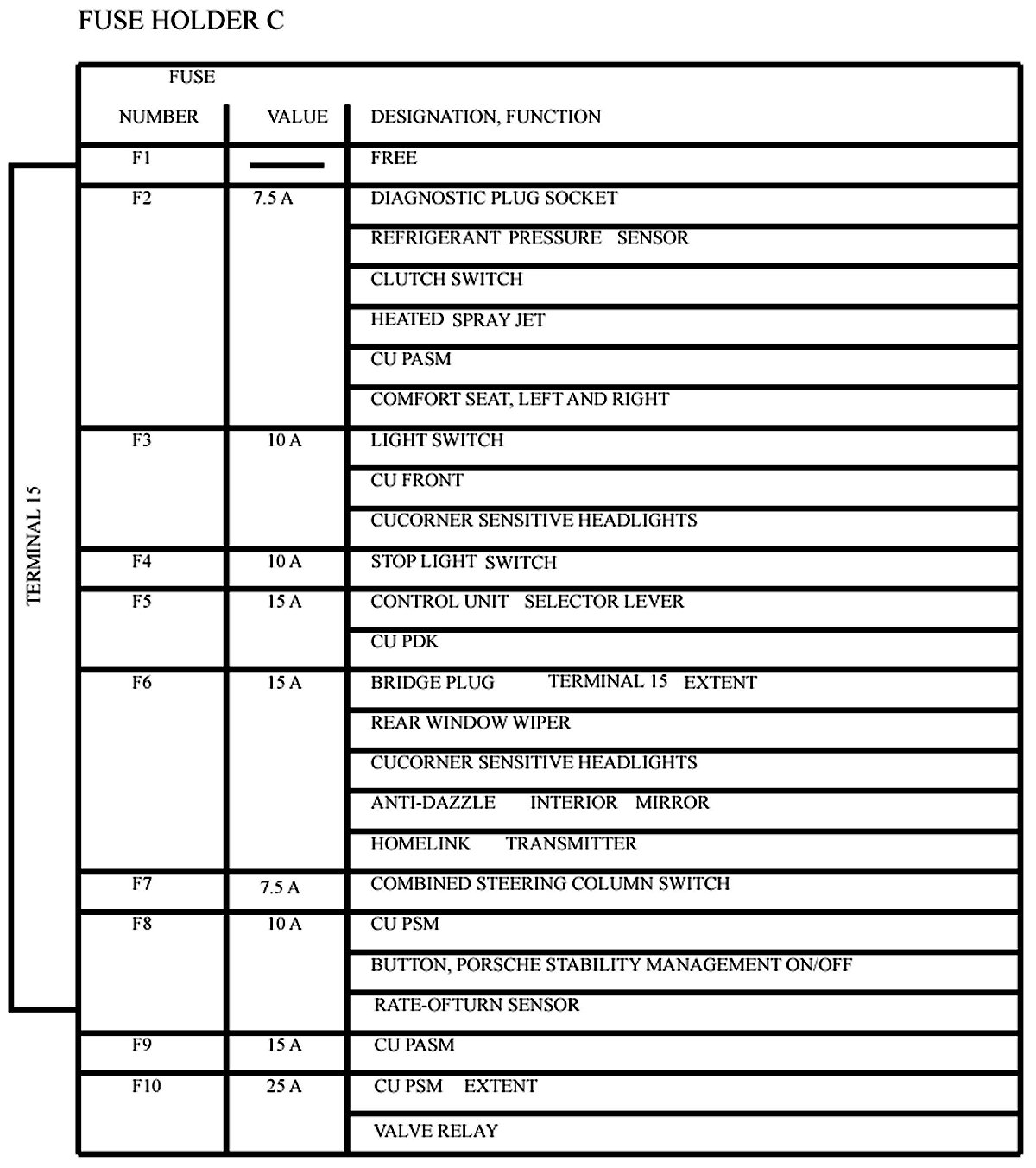

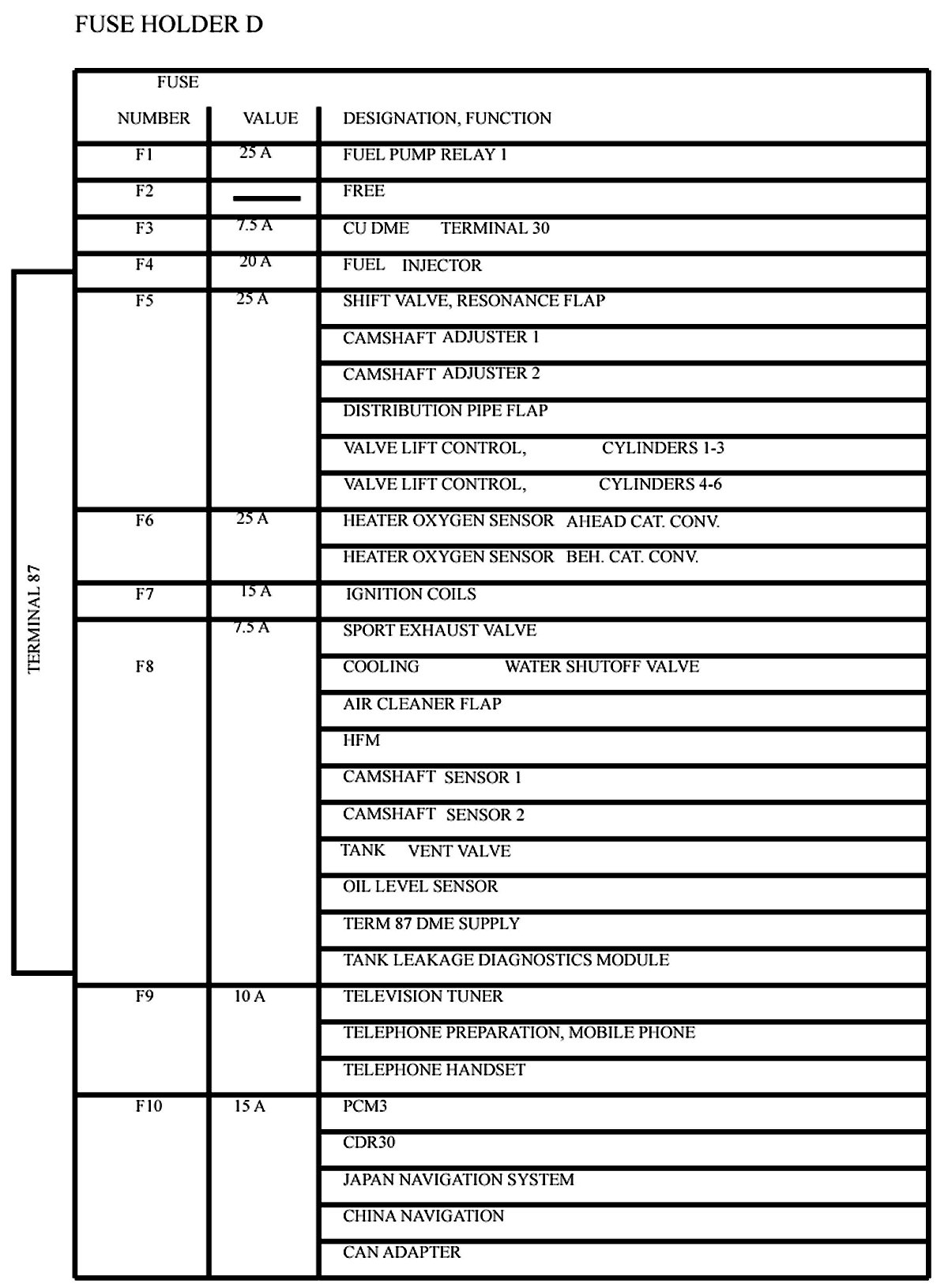

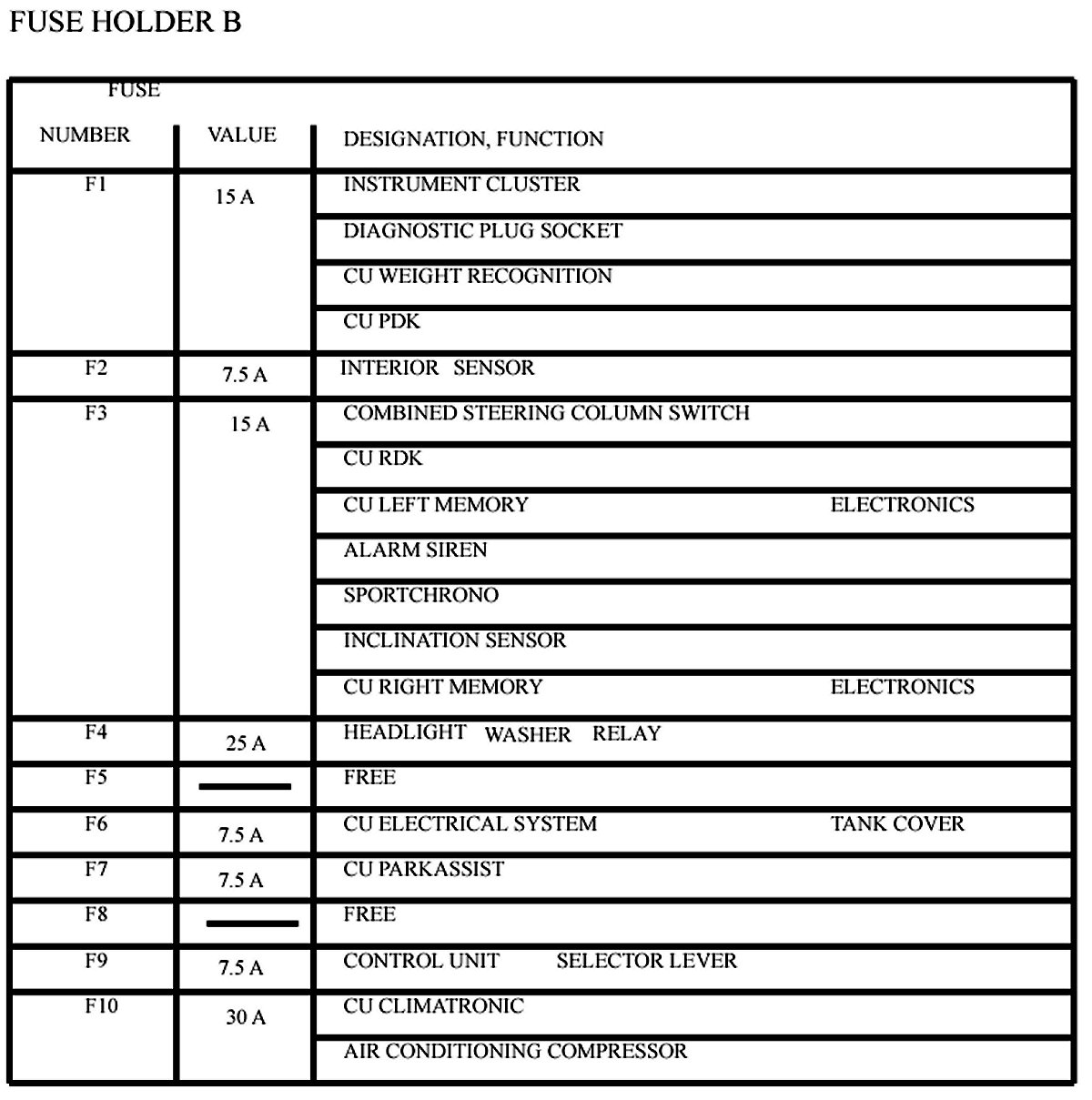

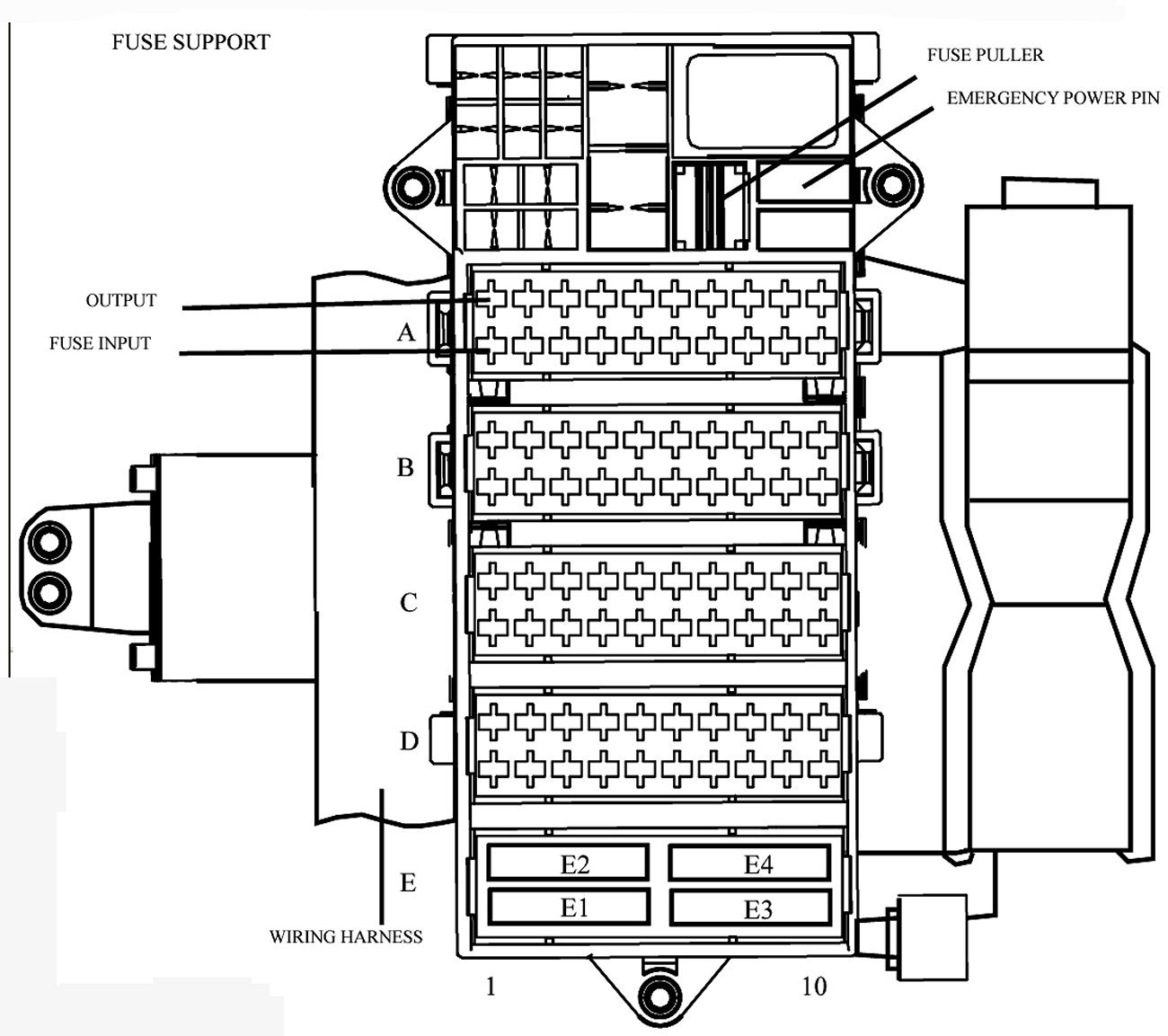

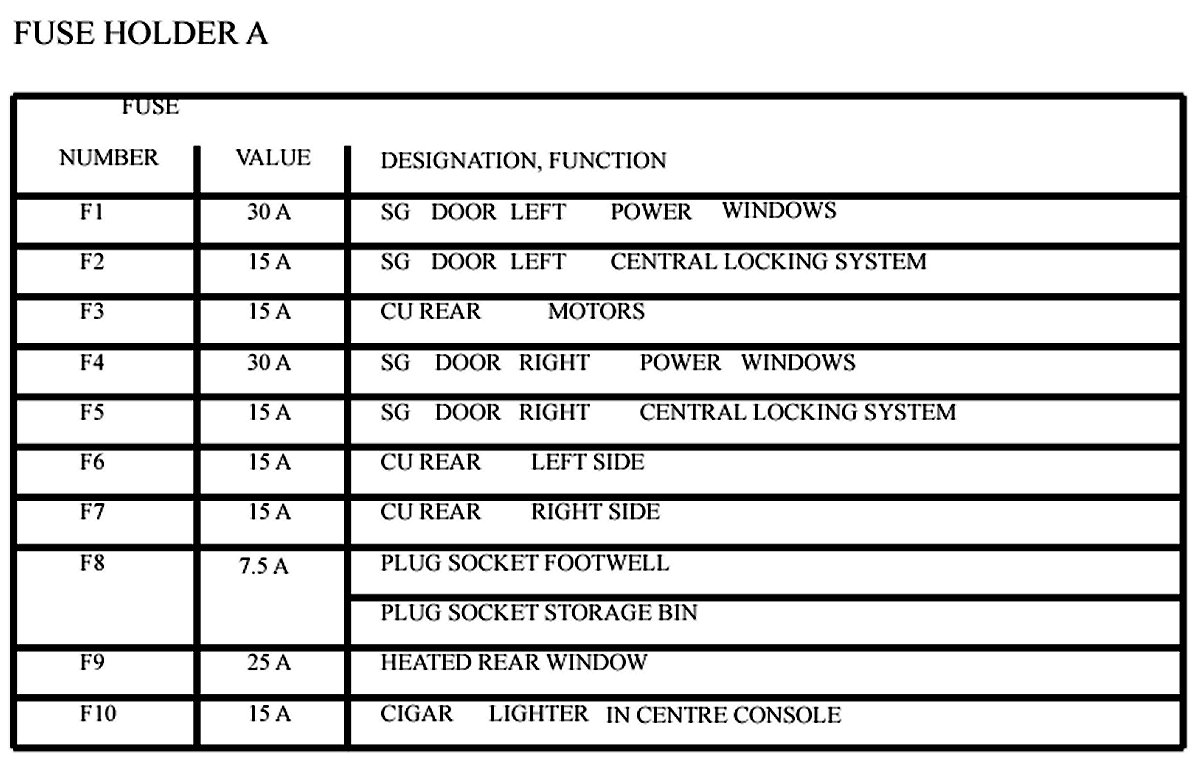

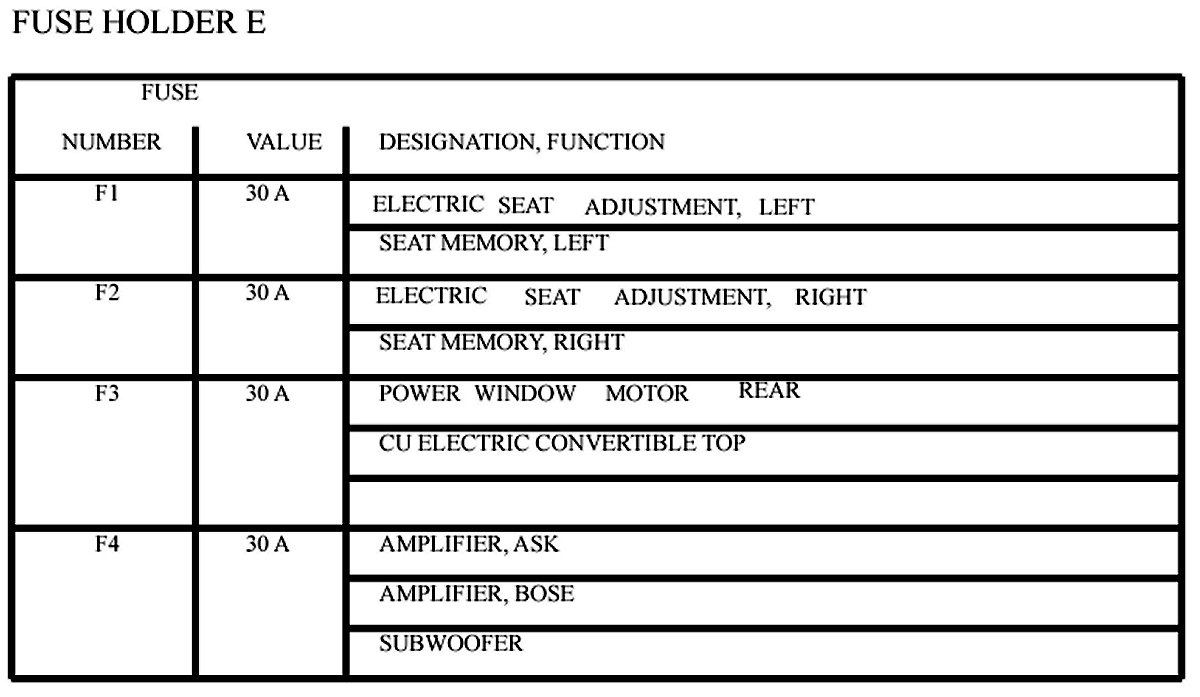

Fuse Support



































The fuse support is located in the passenger compartment.
