Control Module Outputs

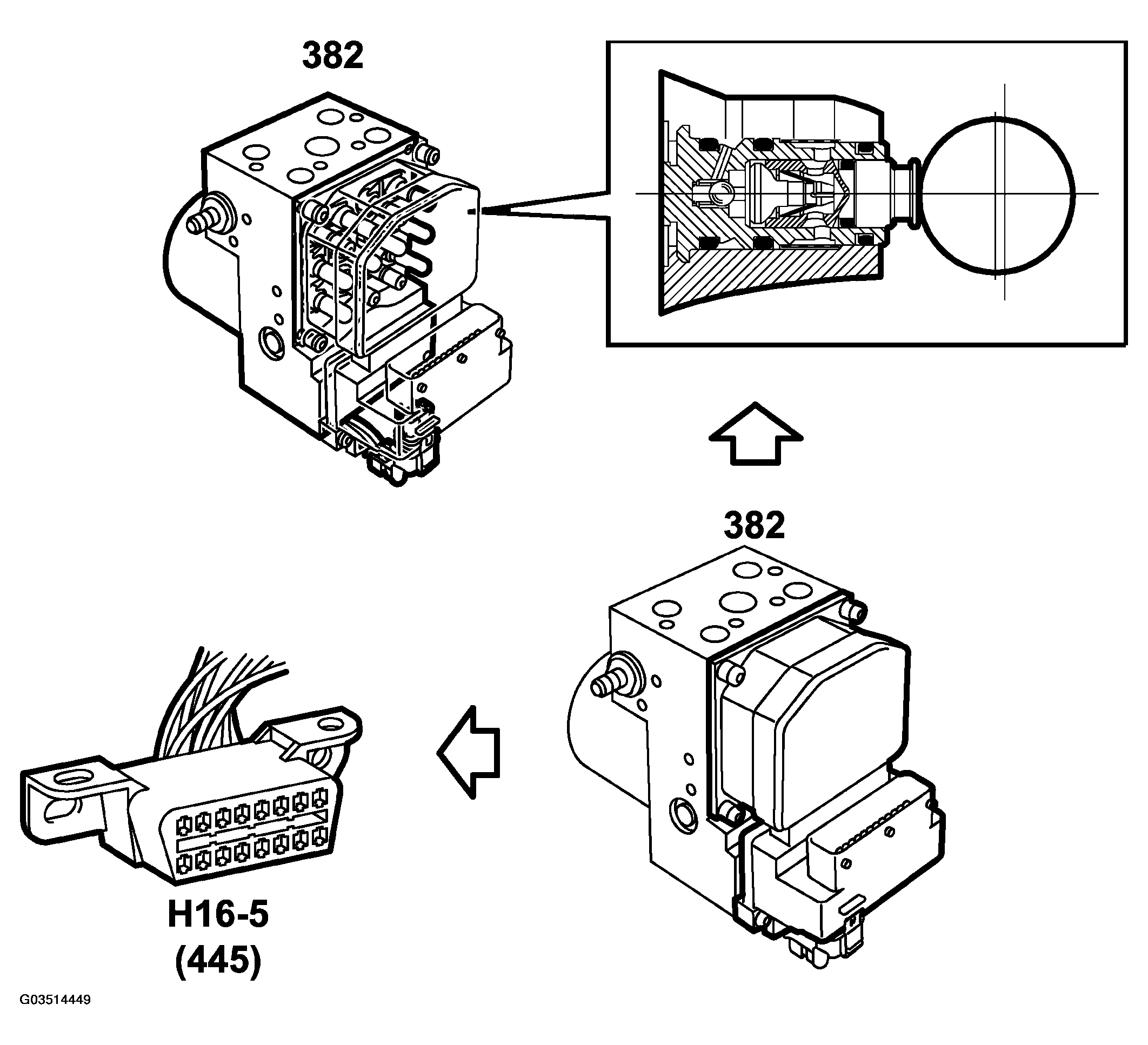

Fig 1: Identifying Control Module Outputs

G03514449

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Return pump (382)
DIAGNOSTICS COMMUNICATION (445)
Inlet valve, FL (382)
Outlet valve, FL (382)
Inlet valve, FR (382)
Outlet valve, FR (382)
Inlet valve, RL (382)
Outlet valve, RR (382)
Inlet valve, RR (382)
Outlet valve, RR (382)
Pressure increase valve 1 FL (382)
Pressure increase valve 2 FR (382)
Pressure decrease valve 1 FL (382)
Pressure decrease valve 2 FR (382)
