Warning Labels, Japan

Affix the labels with Japanese text on the following places. Clean the surface thoroughly before affixing the label.

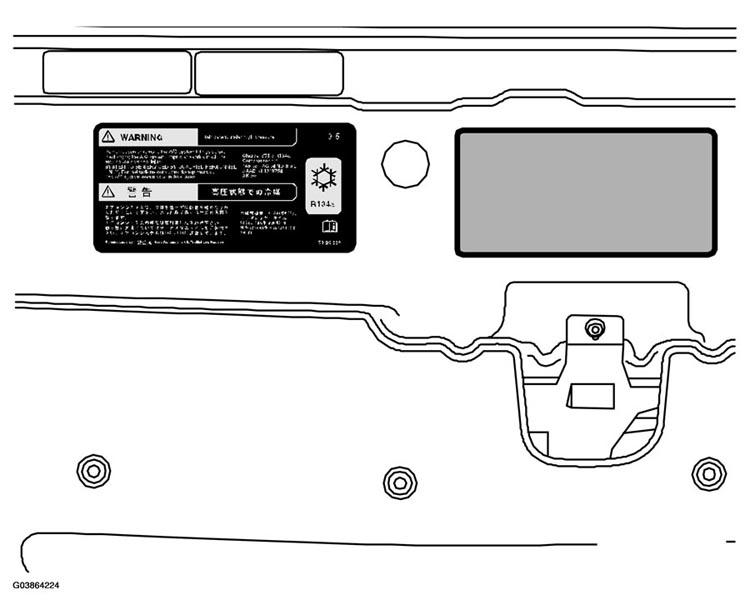

1. Refrigerant, part no. 53 26 228: On the opposite side of the circular hole at the original label.
   Fig 1: Identifying Warning Labels for Refrigerant, Part No. 53 26 228

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

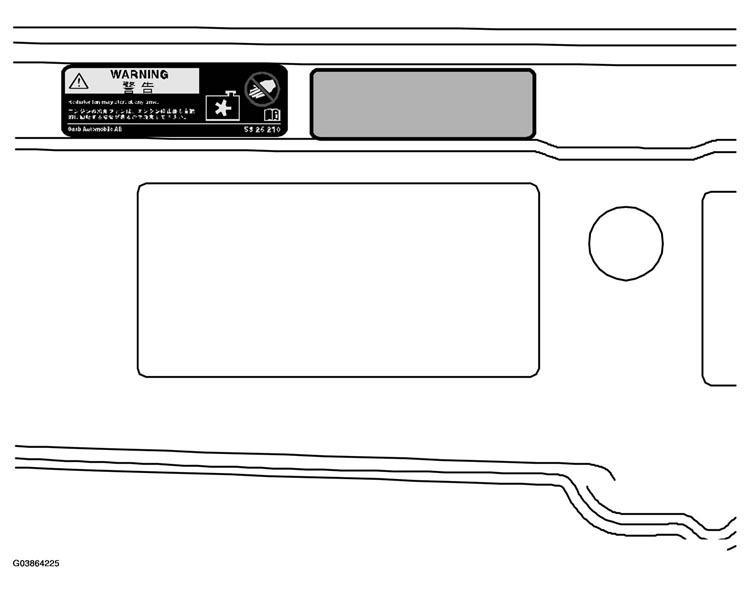

2. Radiator fan, part no. 53 26 210: Next to the original label.
   Fig 2: Identifying Warning Labels For Refrigerant Radiator Fan, Part No. 53 26 210

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

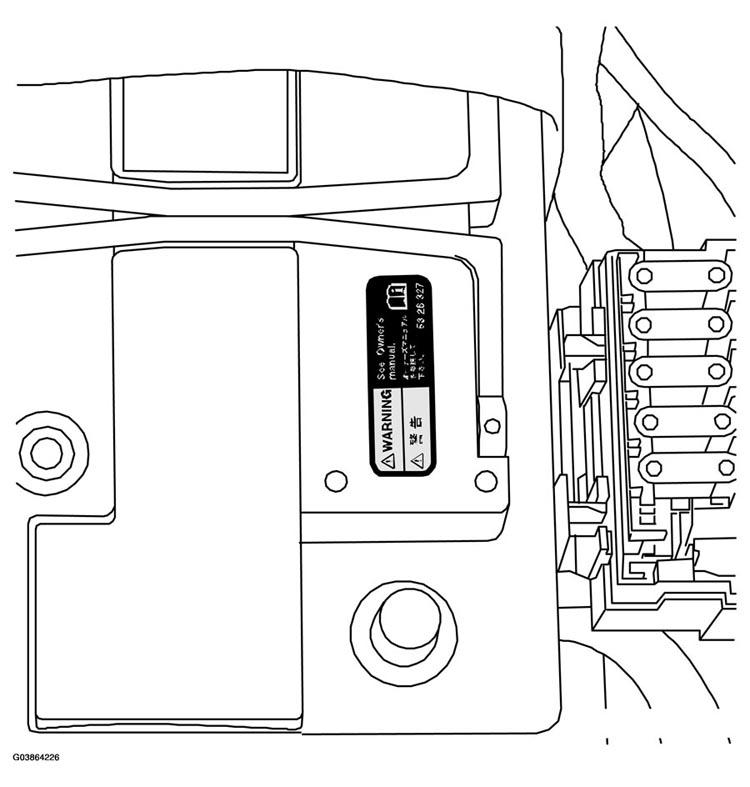

3. Battery, part no. 53 26 327: Vertically at the negative terminal.
   Fig 3: Identifying Warning Labels For Battery, Part No. 53 26 327

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

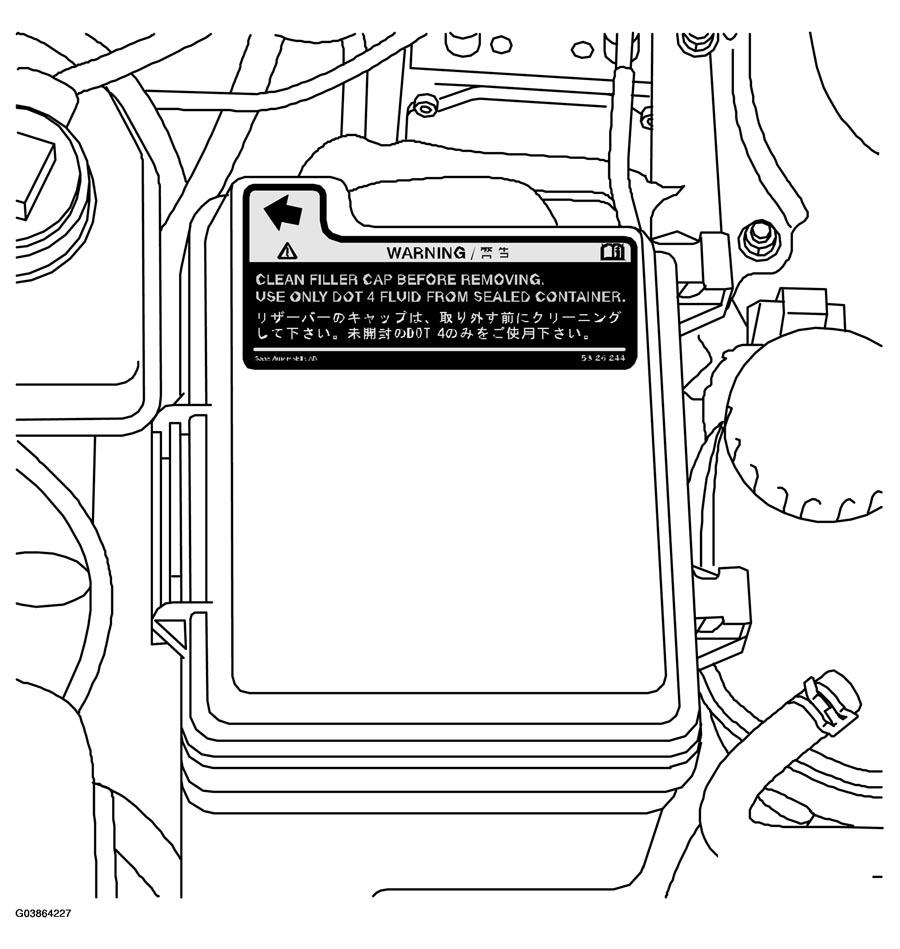

4. LHD:  Brake fluid, part no. 53 26 244: Remove the old label, part no. 53 27 606, from the electrical distribution unit and fit the new label in the recess.
   Fig 4: Identifying Warning Labels For Brake Fluid, Part No. 53 26 244

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

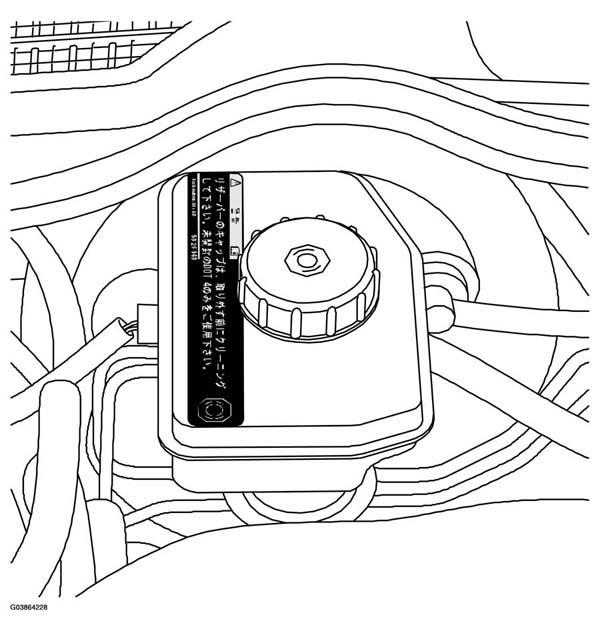

   RHD:  Brake fluid, part no. 53 26 343: On the top of the brake fluid reservoir.

   Fig 5: Identifying Warning Labels For Brake Fluid, Part No. 53 26 343

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

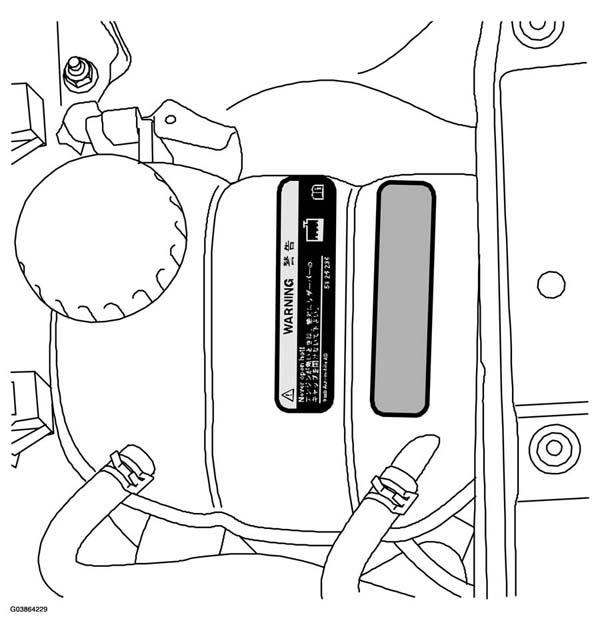

5. Coolant, part no. 53 26 236: On top of the expansion tank's centre section.
   Fig 6: Identifying Warning Labels For Coolant, Part No. 53 26 236

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

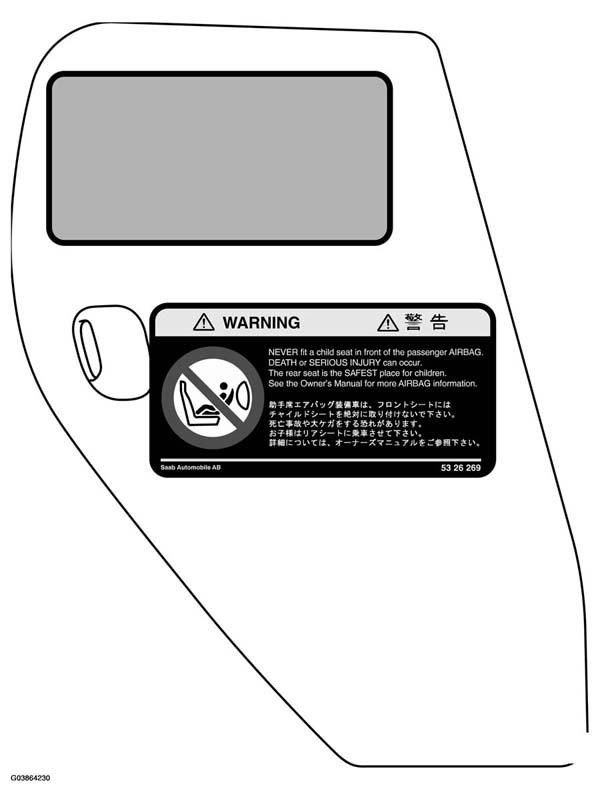

6. Airbag, part no. 53 26 269: On the dashboard end cover on the passenger side.

   LHD

   Fig 7: Identifying Warning Labels For Airbag, Part No. 53 26 269

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

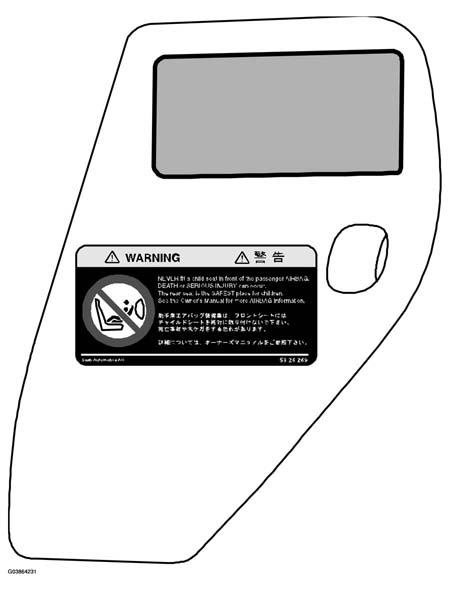

   RHD

   Fig 8: Identifying Warning Labels For Airbag, Part No. 53 26 269 RHD

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

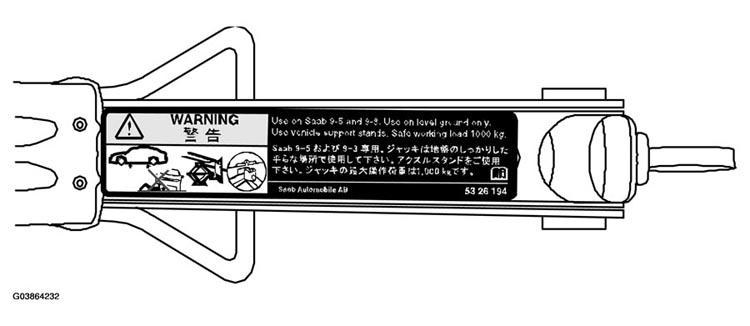

7. Jack, part no. 53 26 194: On the jack, over the original marking.
   Fig 9: Identifying Warning Labels For Jack, Part No. 53 26 194

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
