Engine Controls Schematics 12

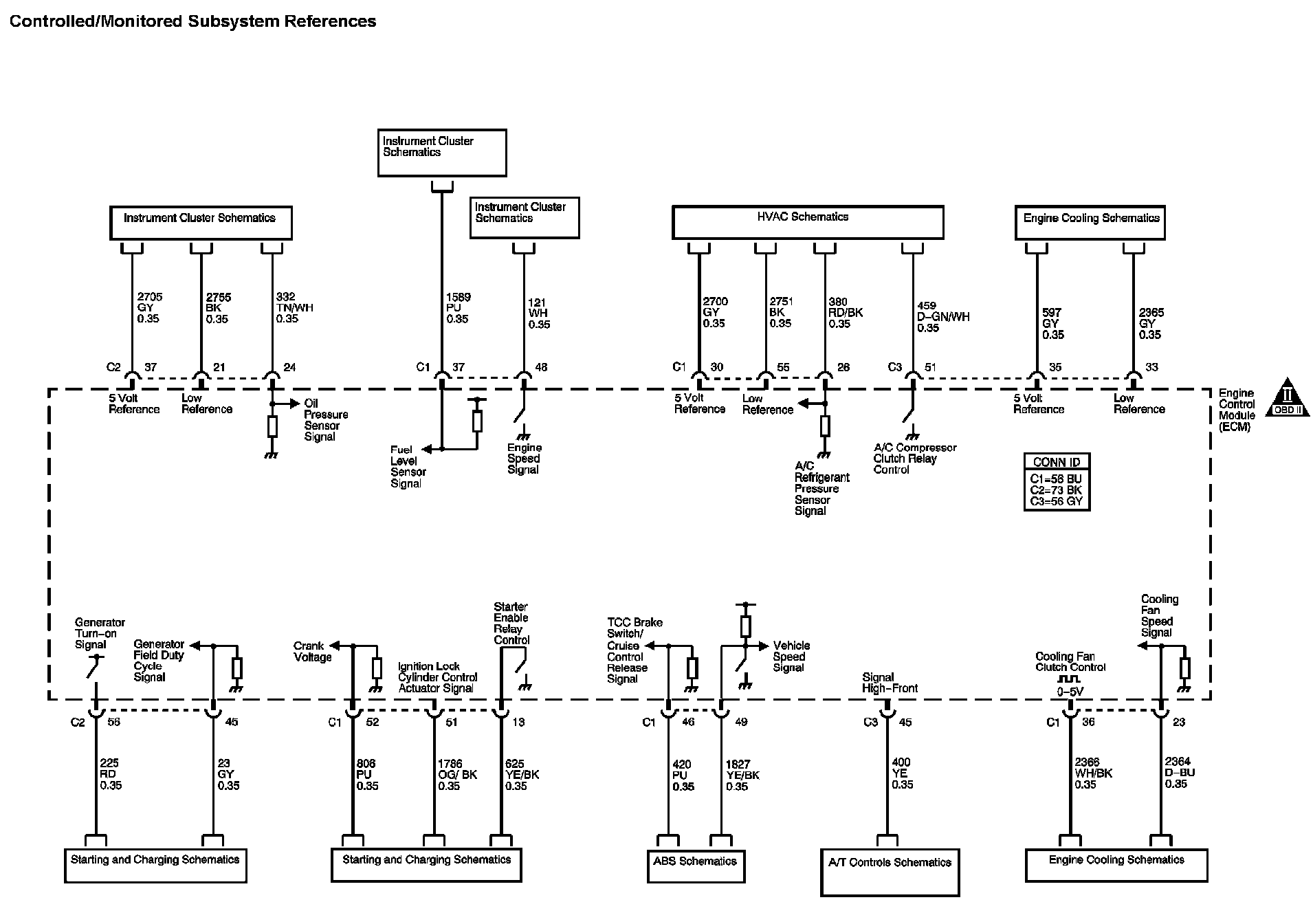

Engine Controls Diagram 12:






Previous Diagram Engine Controls Schematics 11

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
