Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear radio speaker.

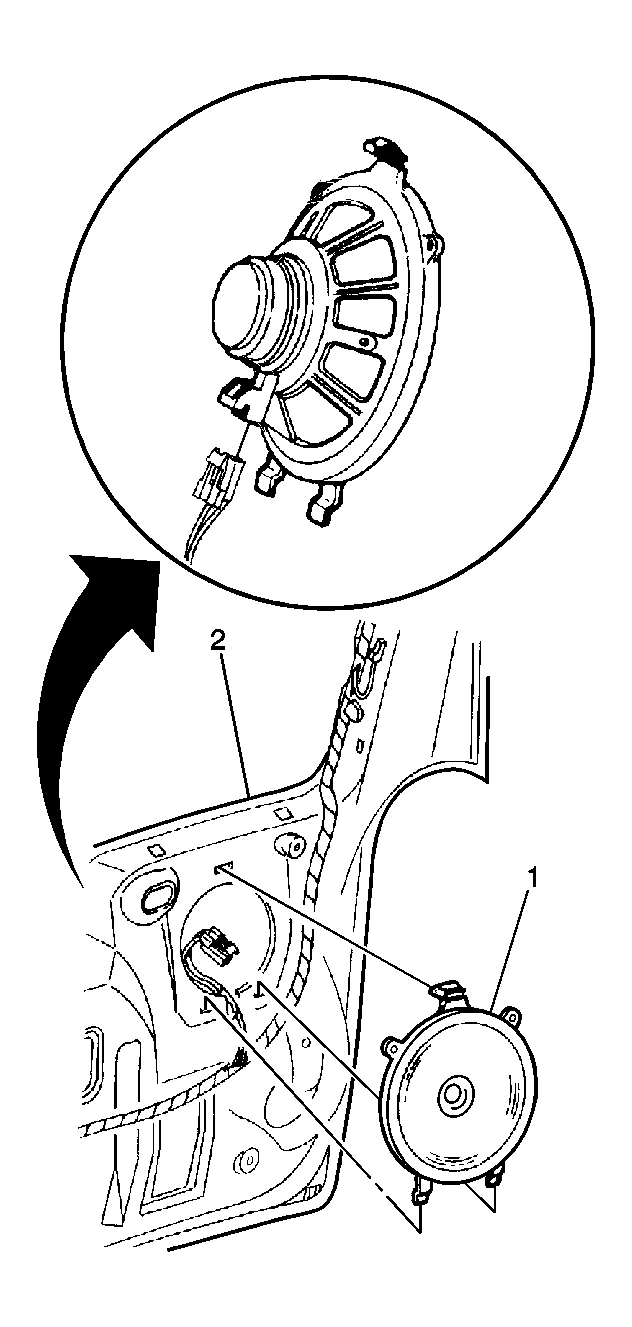

    2. Fig 1: View Of Rear Radio Speaker Assembly
    GM313628Courtesy of GENERAL MOTORS CORP.
  2. Install the rear radio speaker (1):
    1. Insert the tabs into the lower slots.
    2. Push the upper tab into the slot on the liftgate (2).
  3. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
