Under Coat: Specifications

Repair material: THREE BOND 6115

1. The application thickness is 0.4 mm or more when no instruction is indicated.
2. Take care that under coat does not become attached to other locations than shown in the figures and the following locations.
   • High-temperature parts related to the exhaust pipe
   • Hoses, tubes, and harness parts
   • Installation surfaces of rear suspension, transmission, subframe, etc.
3. Application area
   • Side view

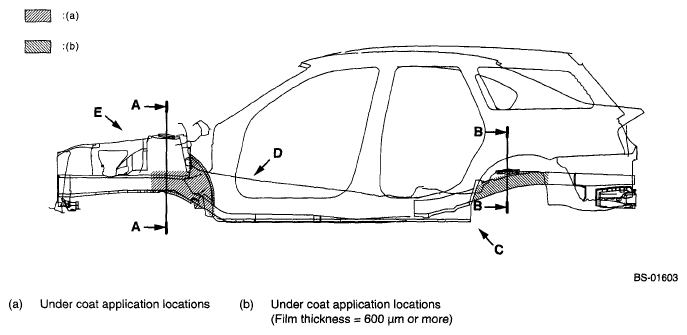

     Fig 1: Identifying Under Coat Application Area Location - Side View

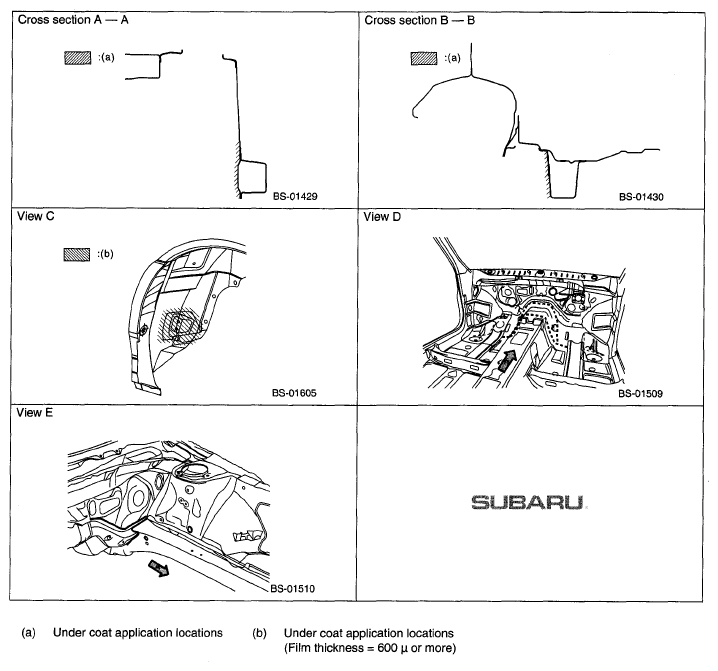

Fig 2: Identifying Under Coat Application Area Location - Side View

• Bottom view/rear view

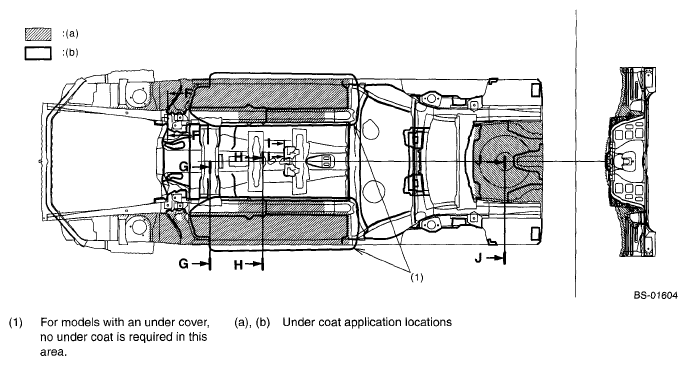

  Fig 3: Identifying Under Coat Application Area Location - Bottom View/Rear View

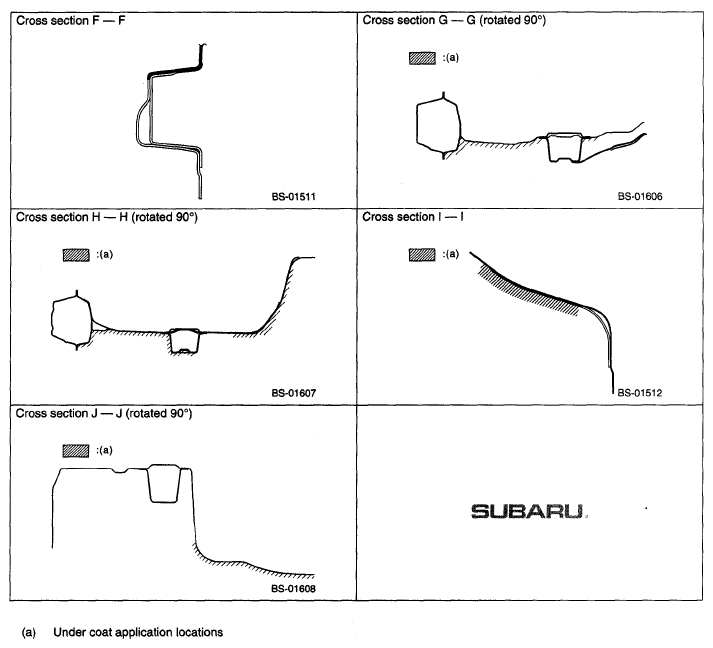

Fig 4: Identifying Under Coat Application Area Location
