VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Removal

CAUTION:

Avoid unnecessary removal of parts in order to prevent fluid leakage.
When the VDCCM&H/U components are removed, be sure to perform the installation according to the installation procedures. <Ref. to INSTALLATION , VDC Control Module and Hydraulic Control Unit (VDCCM&H/U).>

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the air intake boot. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the VDC control module & hydraulic control unit (VDCCM&H/U).
CAUTION:
- Do not pull on the harness when disconnecting the connector.
- Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body.
- If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean.
1. Remove any dirt from around the VDCCM&H/U.
2. Pull up the lock lever (b) while pressing the lock button (a) and disconnect the VDCCM&H/U connector.

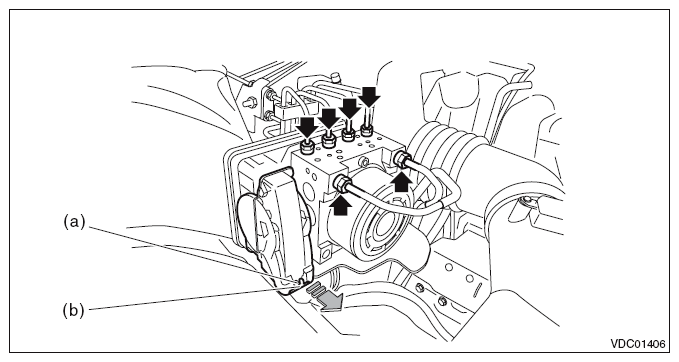

3. Separate each brake pipe using a flare nut wrench.

  Fig 1: Pressing Lock Button
  Courtesy of SUBARU OF AMERICA, INC.

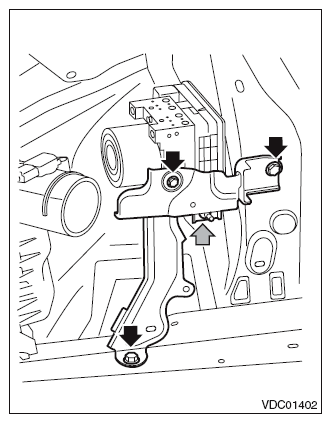

4. Remove the bolts and nuts, and remove the bracket - hydraulic unit and the VDCCM&H/U.

  Fig 2: Locating Hydraulic Unit Bolts And Nuts
  Courtesy of SUBARU OF AMERICA, INC.

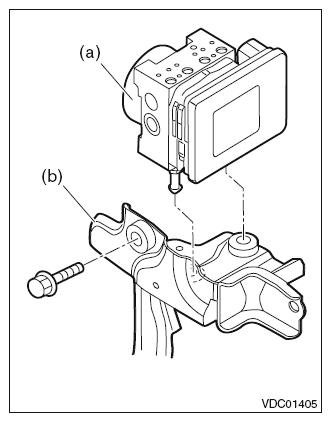

5. Remove the bolts, and remove the VDCCM&H/U (a) from the bracket - hydraulic unit (b).

  Fig 3: Removing Hydraulic Unit Bracket Bolt
  Courtesy of SUBARU OF AMERICA, INC.
