DTC B27A5: Front Internal Antenna Open

DTC detecting condition:

When open circuit occurs in the harness between keyless access CONTROL MODULE and front interior antenna.

Trouble symptom:

Keyless access system does not function. (When the access key is in the front area of the passenger room)

CAUTION: For replacement procedure of keyless access CONTROL MODULE, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an Authorized Subaru Dealership.

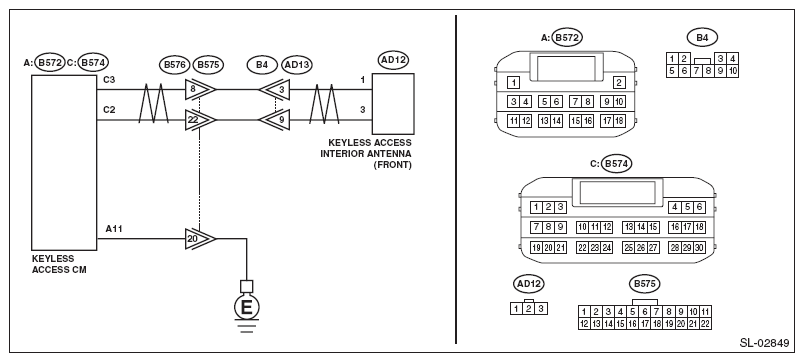

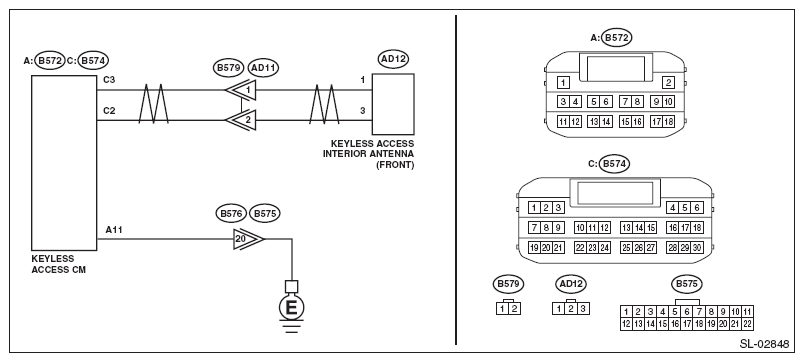

Wiring diagram:

Keyless access system Ref. to WIRING SYSTEM>Keyless Access System>WIRING DIAGRAM .

  1. CHECK LAN SYSTEM  .

    Inspect LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>Basic Diagnostic Procedure>PROCEDURE

    Is the check result OK?

    Yes: Go to  2

    No: Perform the inspection according to the diagnosis for LAN system.

  2. CHECK CONNECTOR  .
    1. Disconnect the keyless access CONTROL MODULE connector.
    2. Disconnect the front interior antenna connector.
    3. Check the connector.

    Is the check result OK?

    Yes: Go to  3

    No: Repair or replace the connector.

  3. CHECK HARNESS (OPEN CIRCUIT)  .

    Using a tester, measure the resistance between the keyless access CONTROL MODULE connector and front interior antenna connector, and between keyless access CONTROL MODULE connector and chassis ground.

    Connector & terminal

    (B574) No. 3 - (AD12) No. 1:

    (B574) No. 2 - (AD12) No. 3:

    (B572) No. 11 - Chassis ground:

    Is the resistance less than 1 Ω?

    Yes: Go to  4

    No: Repair or replace the open circuit of harness.

  4. CHECK HARNESS (GROUND SHORT CIRCUIT)  .

    Using a tester, measure the resistance between the keyless access CONTROL MODULE connector and chassis ground.

    Connector & terminal

    (B574) No. 3 - Chassis ground:

    (B574) No. 2 - Chassis ground:

    Is the resistance 10 kΩ or more?

    Yes: Go to  5

    No: Repair or replace the short circuit of the harness.

  5. CHECK DTC  .
    1. Connect the keyless access CONTROL MODULE connector.
    2. Using the Subaru Select Monitor, clear the memory. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM (DIAGNOSTICS)>Clear Memory Mode .
    3. Read the DTC using Subaru Select Monitor. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM (DIAGNOSTICS)>Read Diagnostic Trouble Code (DTC)

    Is DTC B27A5 displayed?

    Yes: Go to  6

    No: Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

    NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
  6. CHECK FRONT INTERIOR ANTENNA  .
    1. Replace the rear interior antenna with the front interior antenna. Ref. to SECURITY AND LOCKS>Keyless Access Indoor Antenna .
    2. Using the Subaru Select Monitor, clear the memory. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM (DIAGNOSTICS)>Clear Memory Mode .
    3. Read the DTC using Subaru Select Monitor. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START SYSTEM (DIAGNOSTICS)>Read Diagnostic Trouble Code (DTC) .

    Is DTC B27A5 displayed?

    Yes: Replace the keyless access CONTROL MODULE. Ref. to SECURITY AND LOCKS>Keyless Access CONTROL MODULE .

    No: Malfunction occurred in the front interior antenna.
