Power Rear Gate Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .

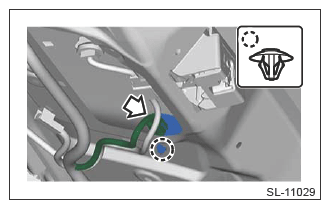

  3. Remove the power rear gate buzzer.
    1. Disconnect the connector.
    2. Release the claws, and then remove the power rear gate buzzer.
    G13201773Courtesy of SUBARU OF AMERICA, INC.
