Drive Plate: Removal
- Remove the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .
- Secure the crank pulley with the ST1 and ST2.
Preparation tool:
ST1: PULLEY WRENCH (18355AA000)
ST2: PULLEY WRENCH PIN SET (18334AA000)

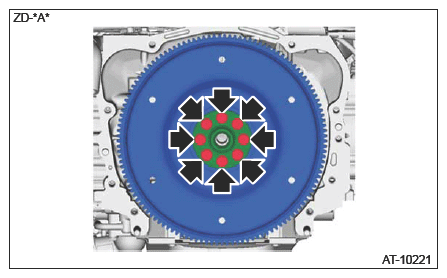

- Remove the reinforcement drive plate, drive plate and crankshaft position sensor plate.
