Connector End View - X034 (Fremont: 07/01/2017 - 07/10/2018)

Tesla Part Number  1086384-00-A

Connector  SUMITOMO 6098-1716

Color  WH

Connector Location:

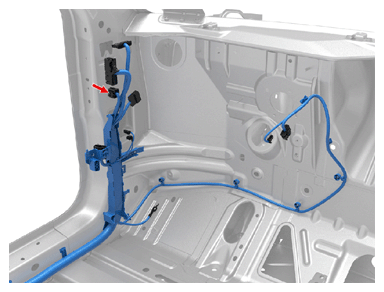

Fig 1: Connector Component Location - X034 (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X034 (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.
