Connector End View - X121 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Tesla Part Number 1039297-00-A

Connector SUMITOMO 6098-4008

Color WH

Connector Location:

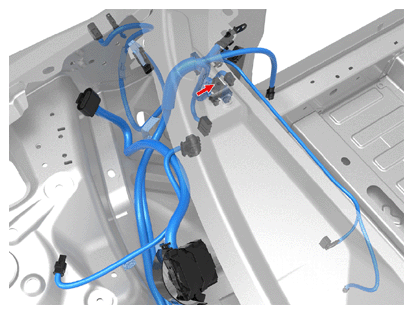

Fig 1: Connector Component Location - X121 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X121 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13	X057	4
2	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X057	5
3	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X905F	10
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50
6	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X906F	5
7	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13	X906F	6
8	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13	X905F	11
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35
11	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13	X057	11
12	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X057	12
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50
14	unused
15	unused
16	unused
