Connector End View - X832A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1073368-04-A
Connector ROSENBERGER 59Z006-T00-E
Color GN
Connector Location: Currently not available
Connector Pinout:

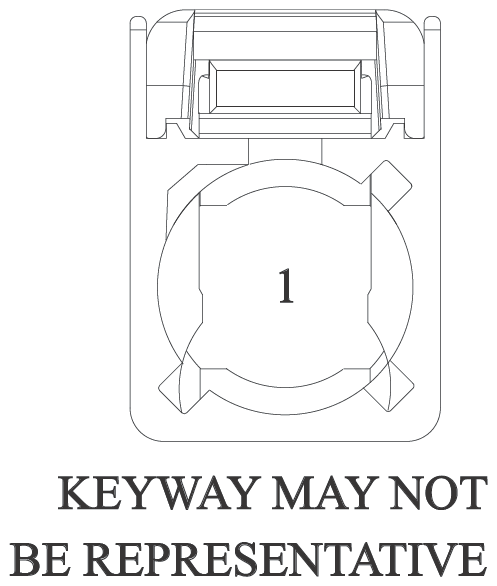

Fig 1: Connector End View - X832A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ROSENBERGER | 59K2DV-1M4A4 | COAX-F | BK | D302 | X831A | 1 |
