Security Controls - Wiring Diagram (Fremont: 01/05/2019 - 06/04/2019)

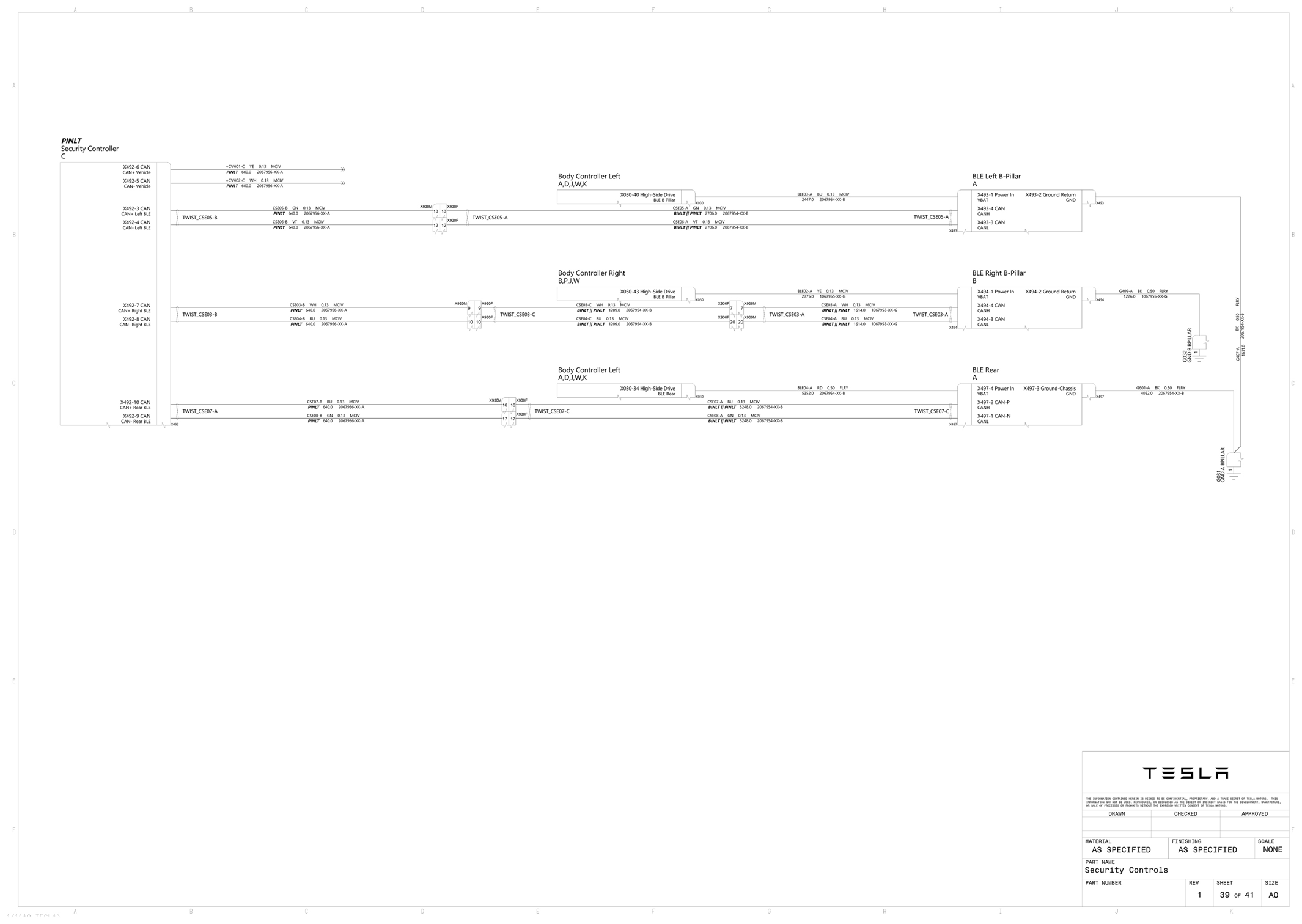

Fig 1: Security Controls - Wiring Diagram (Fremont: 01/05/2019 - 06/04/2019)
G16612367Courtesy of TESLA, INC.
