Ignition Key Unlock Warning Switch

Check continuity between ground and terminal No. 9 (Blue/Black wire) of body ECU harness connector 2C. See Fig 1. Continuity should be present when key is inserted into ignition lock cylinder and not present when key is removed. If continuity is not as specified, replace ignition key unlock warning switch assembly.

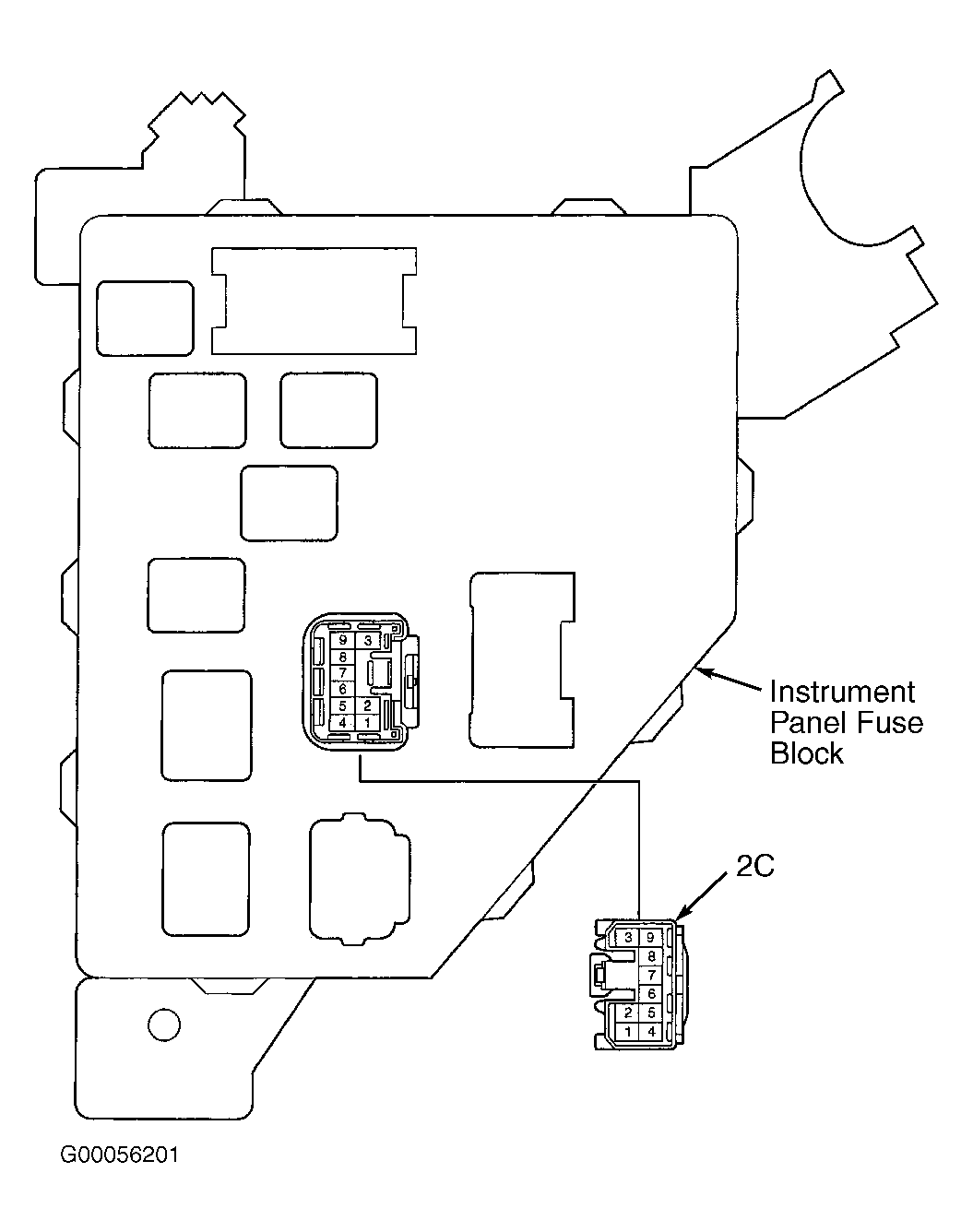

Fig 1: Locating Body ECU Harness Connector 2C
G00056201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
