Engine Unit: Installation

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FLYWHEEL
    NOTE:
    • The mounting bolts are tightened in steps ( c) and ( e).
    • If any one of the mounting bolts is broken or deformed, replace it.
    1. Apply adhesive to 2 or 3 threads of the bolt end.

      Adhesive:

      Part No. 08833-00070, THREE BOND 1324 or equivalent

      Fig 1: Applying Adhesive To Bolt Threads
      G01087819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the flywheel on the crankshaft.
    3. Install and uniformly tighten the 8 bolts in several passes, in the sequence shown.

      Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

      If any one of the bolts does not meet the torque specification, replace the bolt.

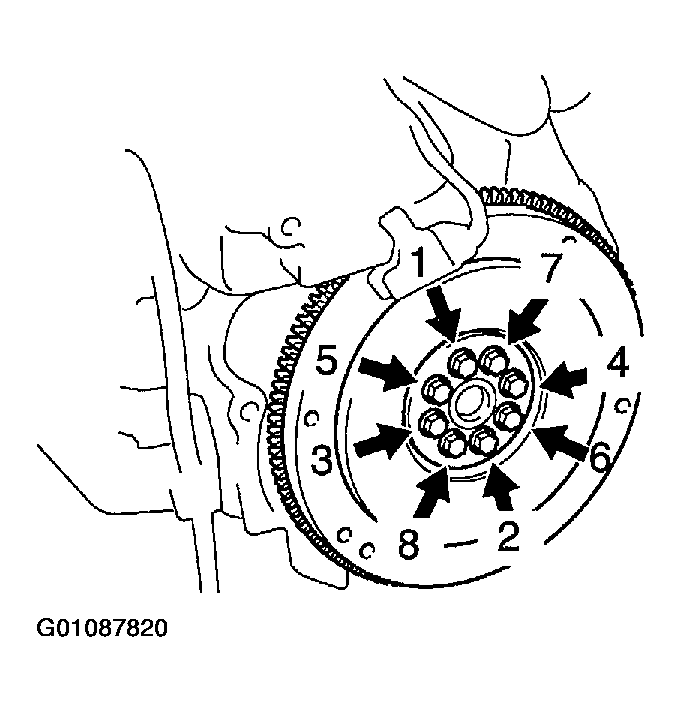

      Fig 2: Tightening Flywheel Bolts In Sequence
      G01087820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Mark the flywheel bolt with paint.
    5. Retighten the flywheel bolts by an additional 90 degrees.

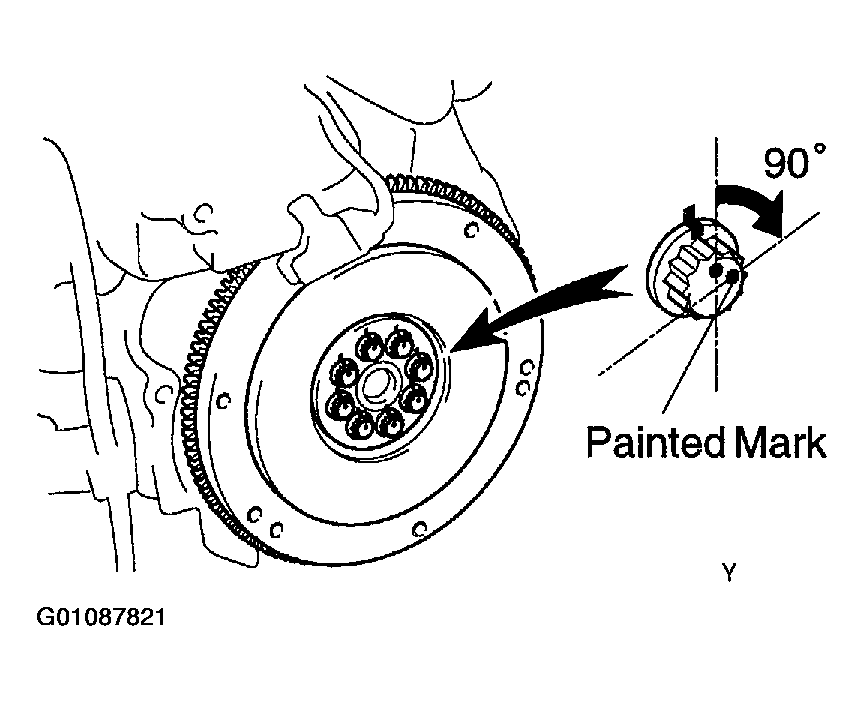

    6. Fig 3: Tightening Flywheel Bolts An Additional 90 Degrees
      G01087821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CLUTCH DISC AND COVER  . See CLUTCH ASSEMBLY .
  3. INSTALL TRANSAXLE TO ENGINE  . See REMOVAL & INSTALLATION .
    1. Attach the transaxle to the engine, and install the 6 bolts.
    2. Install the starter See REMOVAL & INSTALLATION .
  4. SET ENGINE JACK

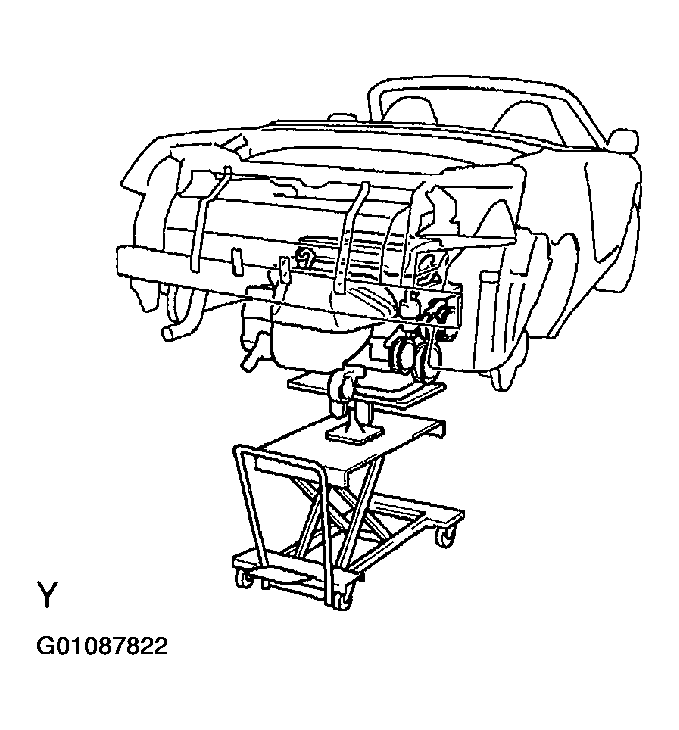

    Fig 4: Setting Engine Jack
    G01087822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Using a chain, hold the engine tightly.
  5. INSTALL ENGINE AND TRANSAXLE ASSEMBLY IN VEHICLE
    1. Raise the engine into the engine compartment.

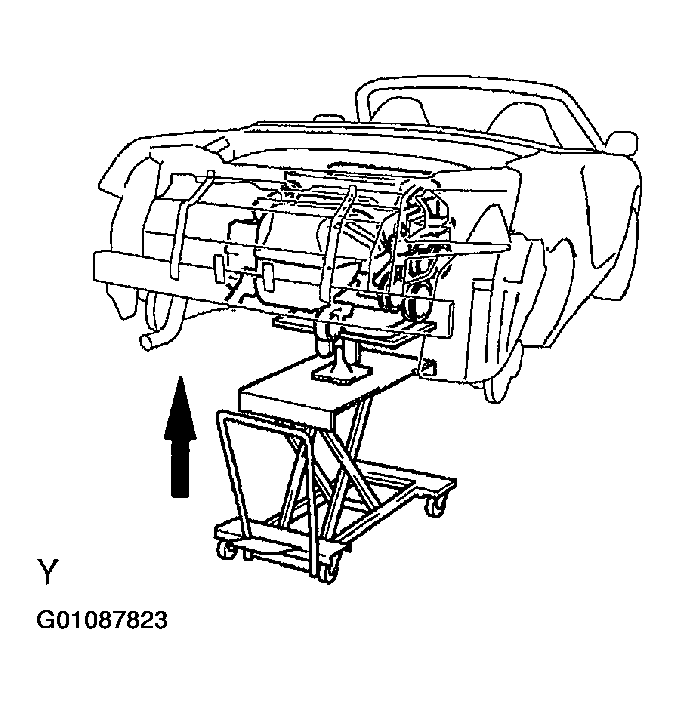

      Fig 5: Raising Engine Into Engine Compartment
      G01087823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. M/T:

      Temporarily install the rear suspension member to the engine with the through bolt and nut.

    3. SMT:

      Temporarily install the rear suspension member and HPU assembly to the engine with the through bolt and nut.

    4. Connect the rear suspension member with the 4 bolts.

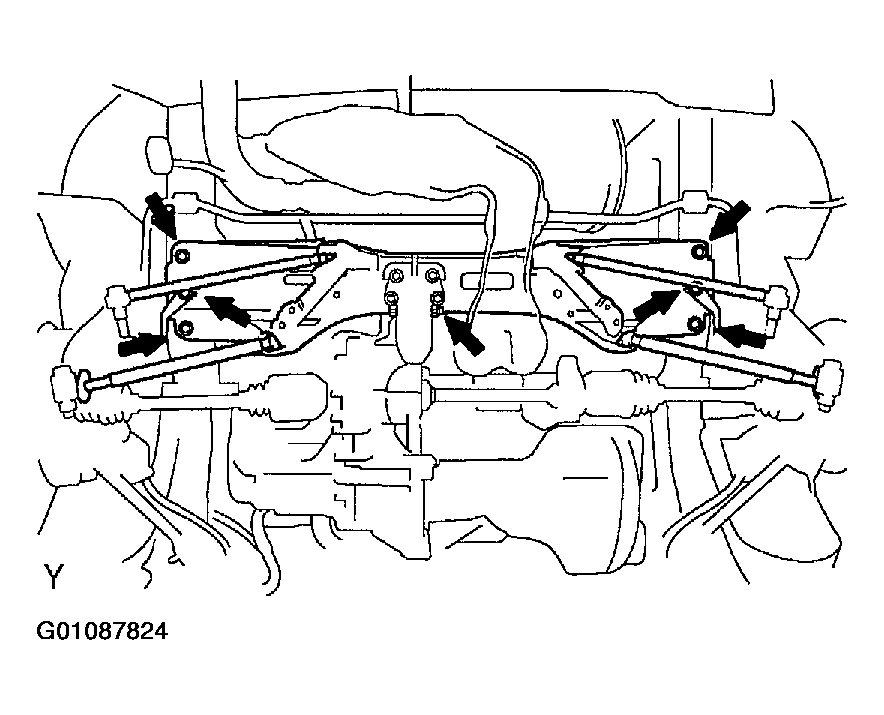

      Fig 6: Installing Rear Suspension Member
      G01087824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 80 N.m (816 kgf.cm, 59 ft.lbf)

    5. Connect the ABS wire with the 2 bolts.
    6. Install the RH engine mounting insulator with the 3 bolts and 3 nuts.

      Torque: 52 N.m (530 kgf.cm, 38 ft.lbf)

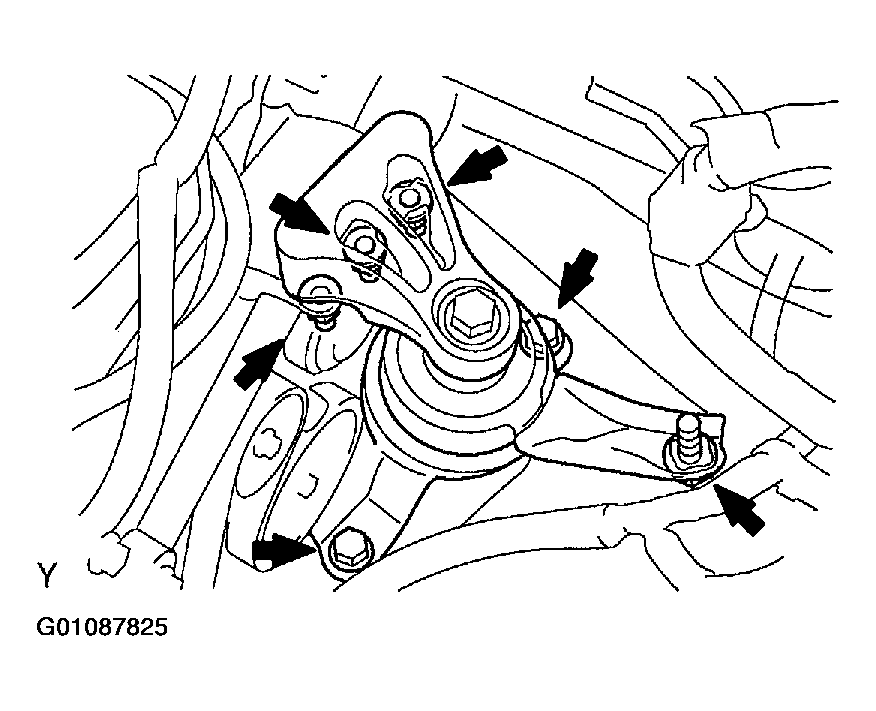

      Fig 7: Installing RH Engine Mounting Insulator
      G01087825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Temporarily install the through bolt and nut holding the LH engine mounting insulator to the mounting bracket.

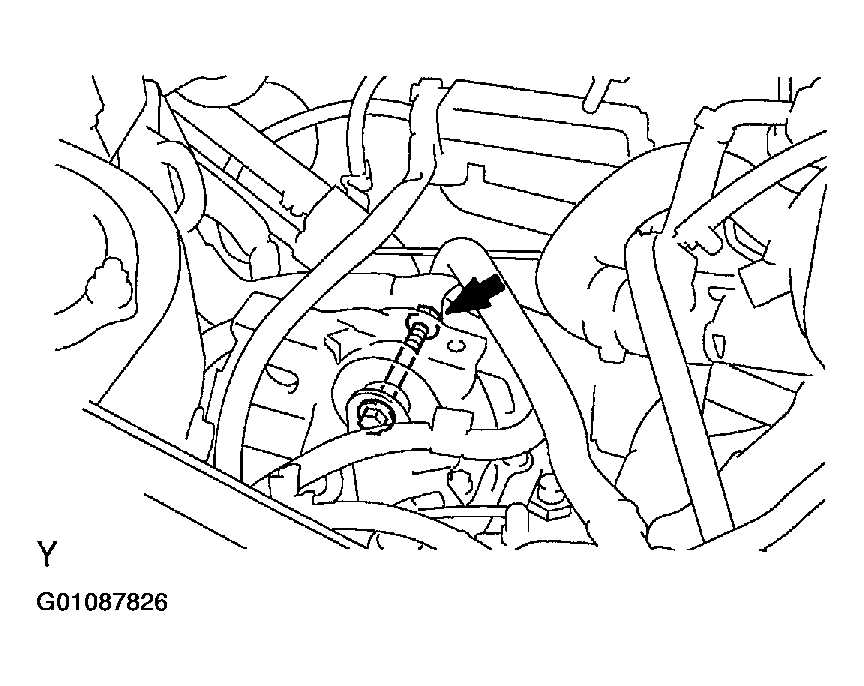

      Fig 8: Installing LH Engine Mounting Insulator Through Bolt
      G01087826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Tighten the through bolt and nut holding the rear engine mounting insulator to the mounting bracket.

      Torque: 93 N.m (948 kgf.cm, 69 ft.lbf)

      NOTE: Be sure to tighten the bolt at the upper end of slot.

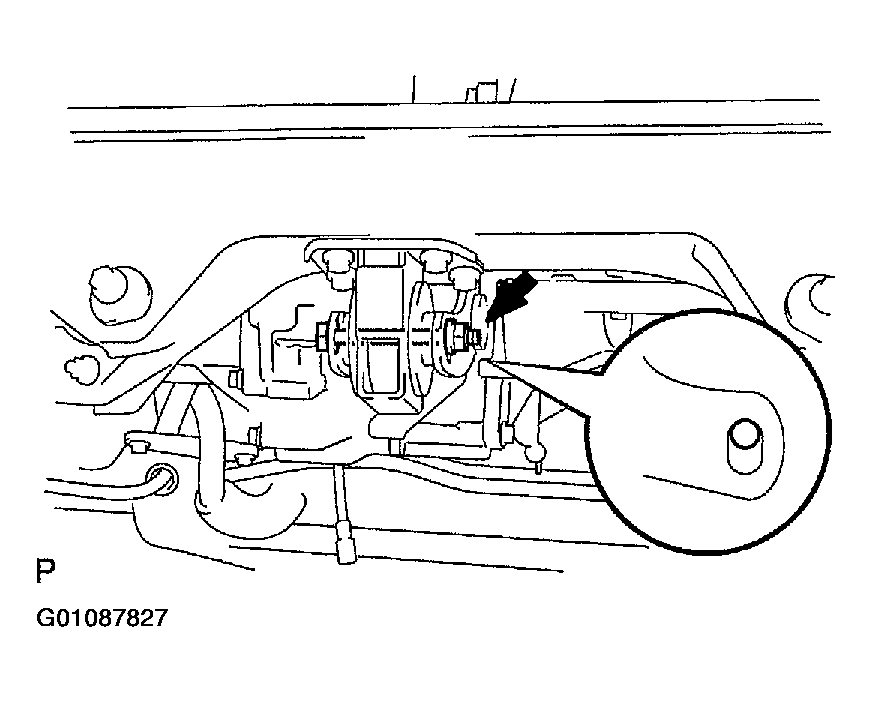

      Fig 9: Installing Through Bolt To Rear Mounting Bracket
      G01087827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Install the through bolt holding the front engine mounting insulator to the mounting bracket.
      Fig 10: Installing Through Bolt To Front Mounting Bracket
      G01087828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 93 N.m (950 kgf.cm, 69 ft.lbf)

    10. Tighten the through bolt and nut holding the LH engine mounting insulator to the mounting bracket.

      Torque: 87 N.m (887 kgf.cm, 64 ft.lbf)

    11. Remove the engine jack, and install the No. 2 cylinder head cover with the 2 clips and 2 nuts.
  6. INSTALL DRIVE SHAFTS  . See INSTALLATION .
  7. M/T: CONNECT TRANSAXLE CONTROL CABLES  . See REMOVAL & INSTALLATION .
  8. M/T: CONNECT CLUTCH HOSE  . See REMOVAL & INSTALLATION .
  9. CONNECT FUEL TUBE

    Connect the fuel tube to the fuel pipe, and install the fuel pipe clamp.

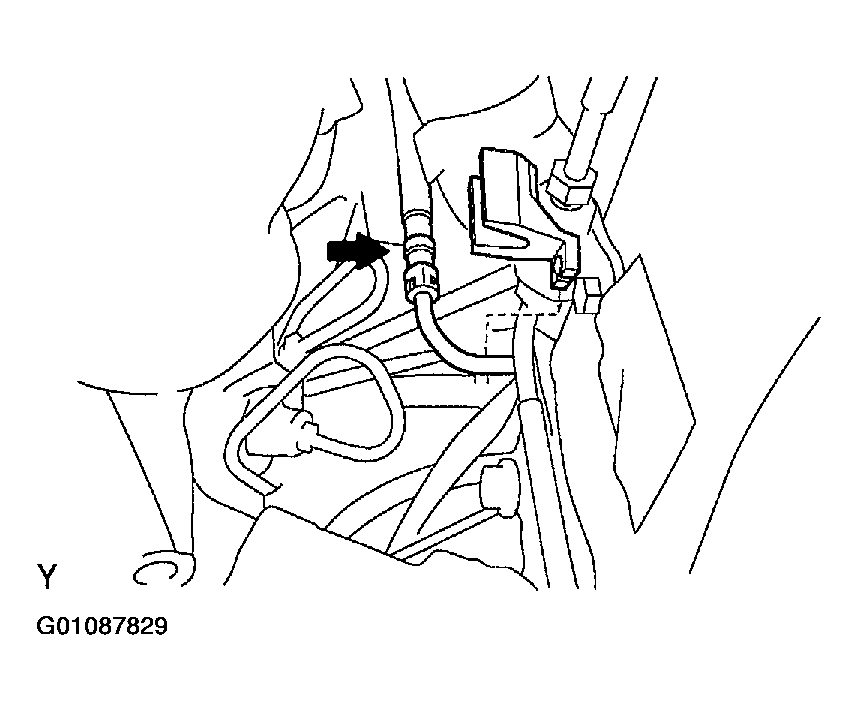

    Fig 11: Connecting Fuel Tube
    G01087829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT HPU CONNECTOR AND SMT SYSTEM HOSES  . See HYDRAULIC POWER UNIT .
  11. CONNECT WATER HOSES

    Connect the 2 radiator hoses and 2 heater hoses.

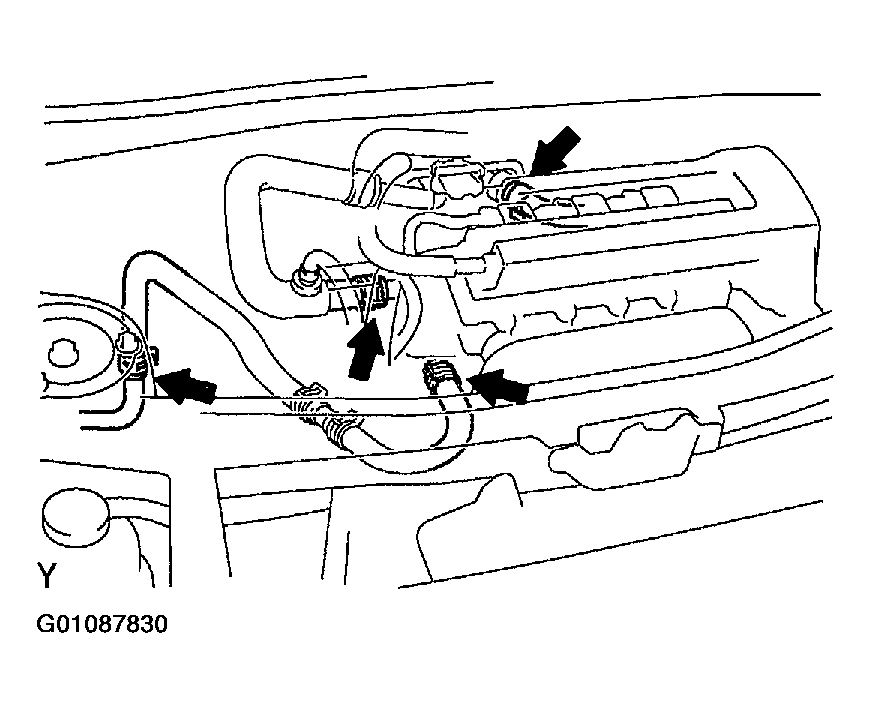

    Fig 12: Connecting Water Hoses
    G01087830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT ENGINE WIRE
    1. Connect the 3 wire brackets and heated oxygen sensor (bank 1 sensor 2) wire to the vehicle.

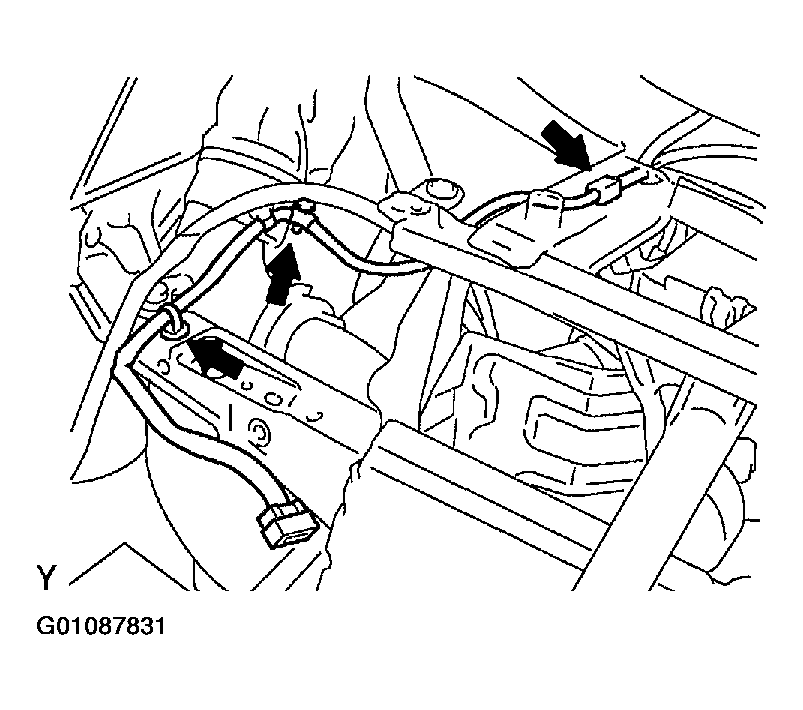

      Fig 13: Reconnecting Wire Brackets
      G01087831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Assemble the positive (+) battery wires.
      1. Assemble the battery wires, and install the terminal with the nut.
        Fig 14: Reassembling Positive Battery Wire
        G01087832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the terminal cover.

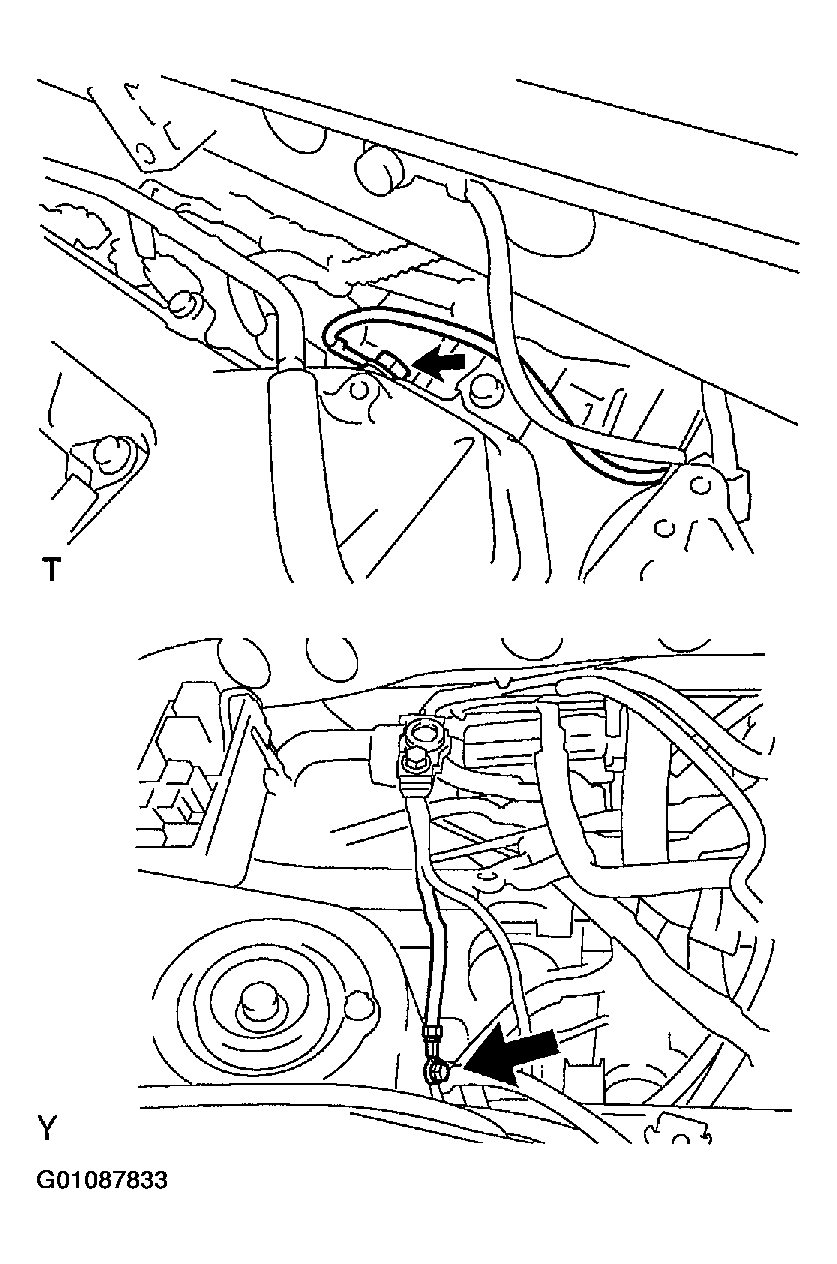

    3. Connect the 2 ground wires with the 2 bolts.
      Fig 15: Connecting 2 Ground Wires In Engine Compartment
      G01087833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the engine wire to the J/B No. 1.

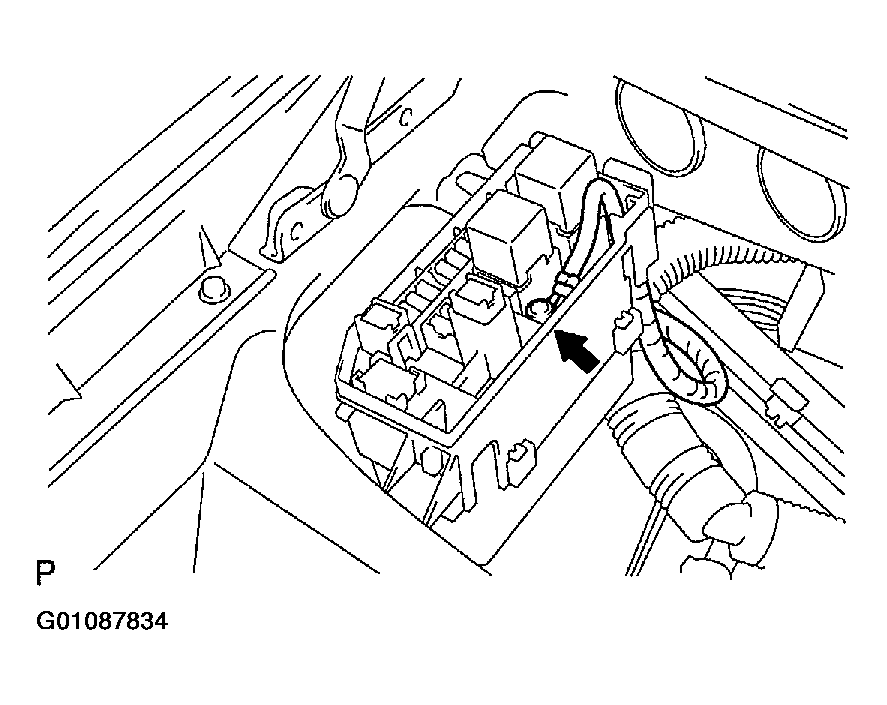

      Fig 16: Reconnecting Engine Wire To Junction Block No. 1
      G01087834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the engine wire with the nut.
      2. Install the relay box cover.
    5. SMT:

      Connect the transmission control ECU connector.

      Fig 17: Reconnecting Transmission ECU Connector
      G01087835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

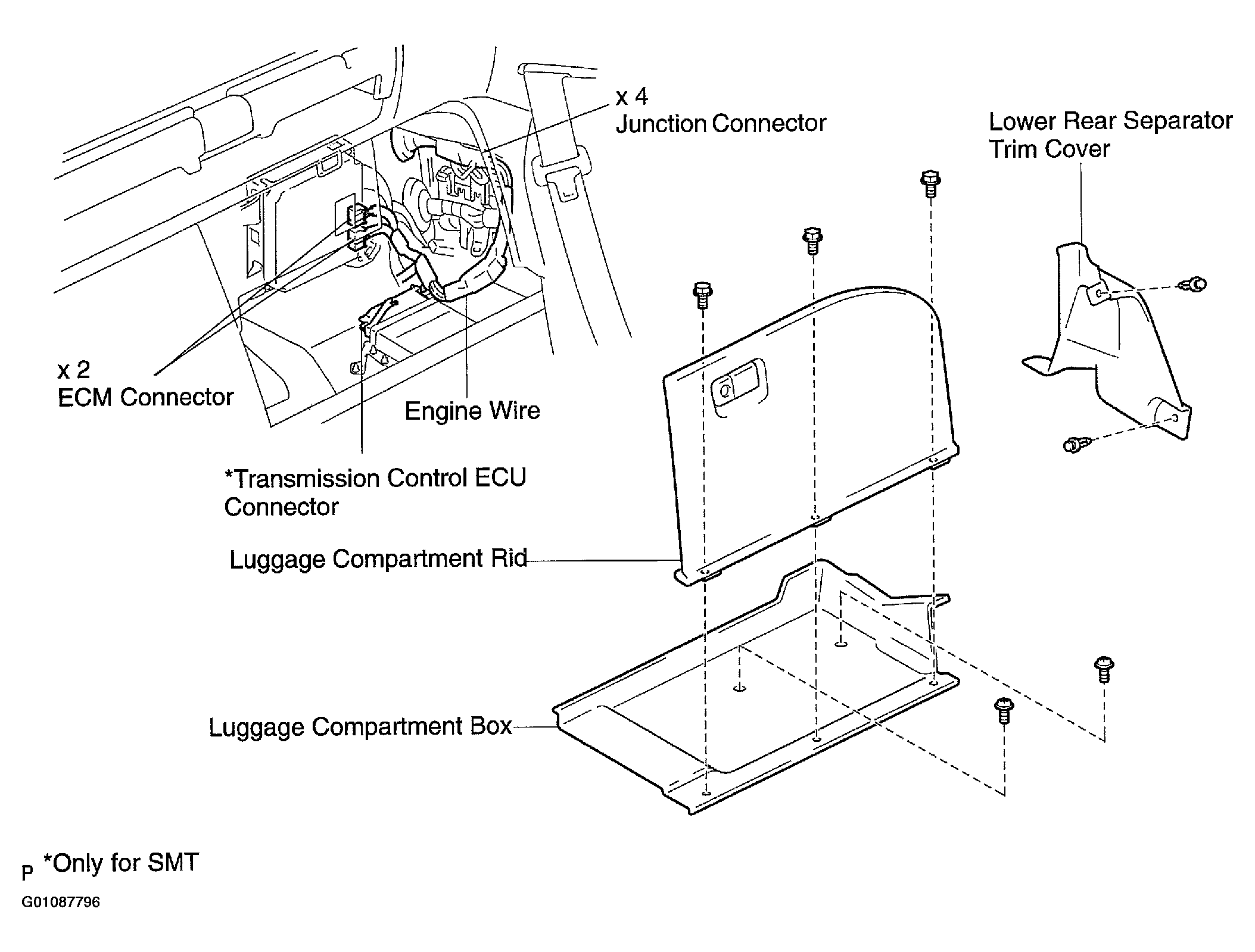

    6. Connect the engine wire to the luggage compartment.
      1. Pull in the engine wire to the luggage compartment, and connect the grommet.
      2. Connect the 4 junction connectors.
      3. Connect the 2 ECM connectors.

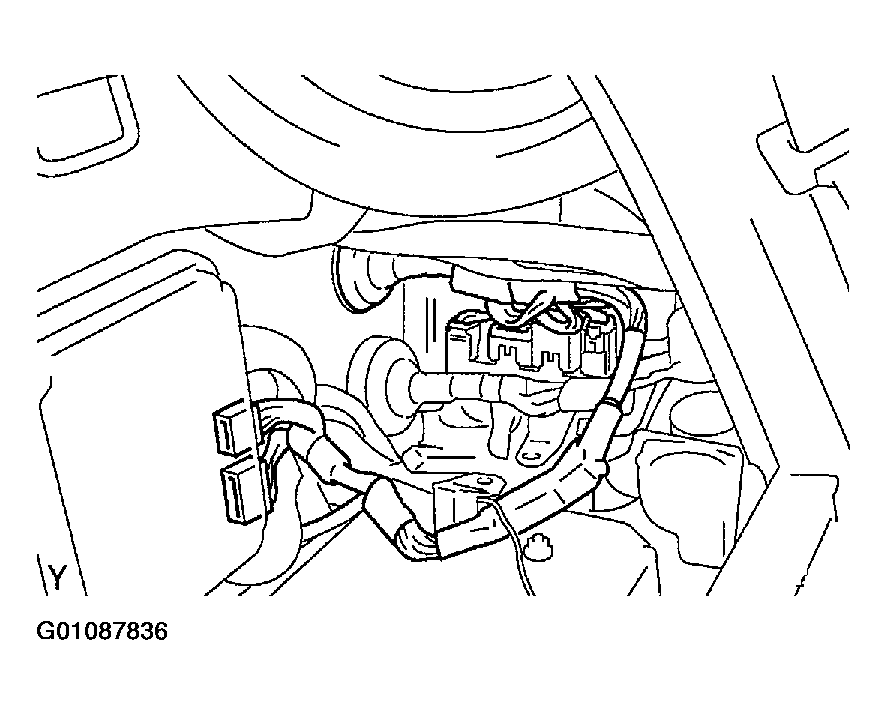

      4. Fig 18: Reconnecting ECM Connectors
        G01087836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Install the luggage compartment box. See Figure.
  13. INSTALL A/C COMPRESSOR
    1. Install the A/C compressor with the 3 bolts.

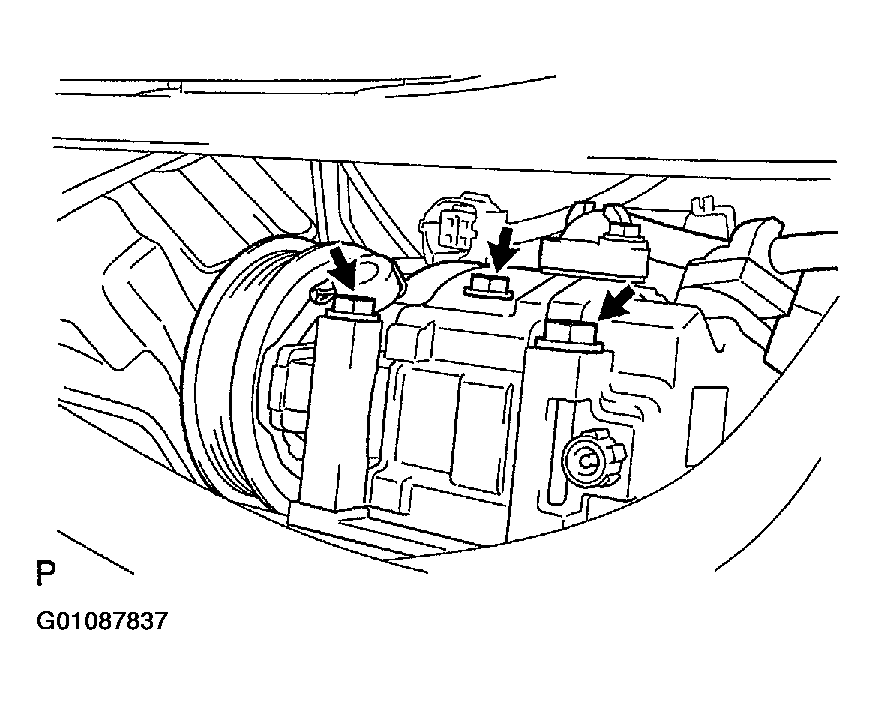

      Fig 19: Reinstalling A/C Compressor
      G01087837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)

    2. Connect the A/C compressor connector.
    3. Install the drive belt.
  14. INSTALL FRONT EXHAUST PIPE
    1. Connect the ring.
    2. Install 3 new gaskets and the front exhaust pipe with the 2 bolts, 2 springs and 3 nuts.

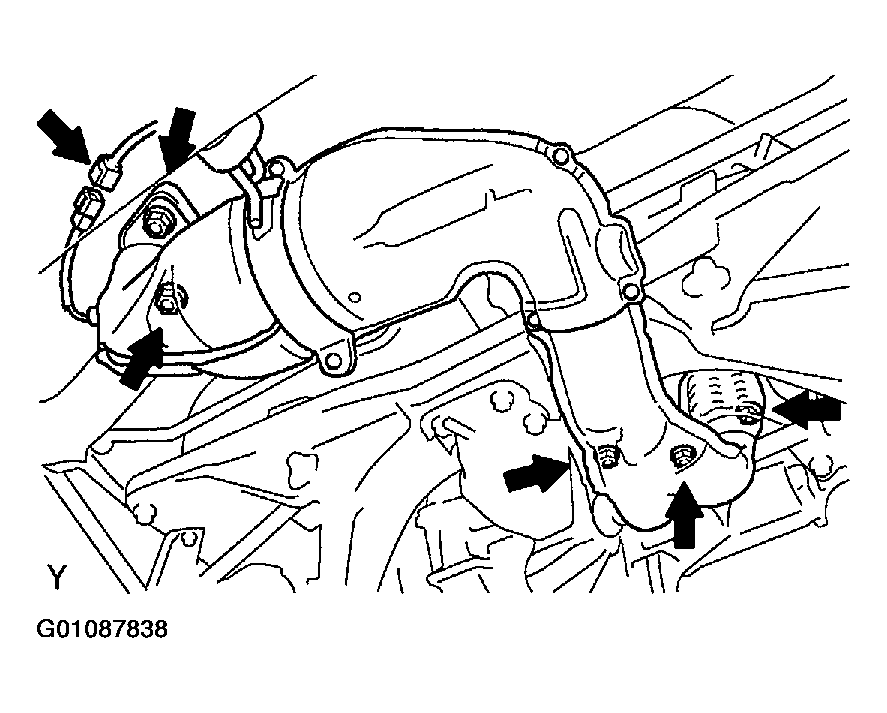

      Fig 20: Reinstalling Exhaust Manifold
      G01087838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque:

      1. 43 N.m (438 kgf.cm, 32 ft.lbf) for bolt
      2. 62 N.m (632 kgf.cm, 46 ft.lbf) for nut

    3. Connect the heated oxygen sensor (bank 2 sensor 1) connector.

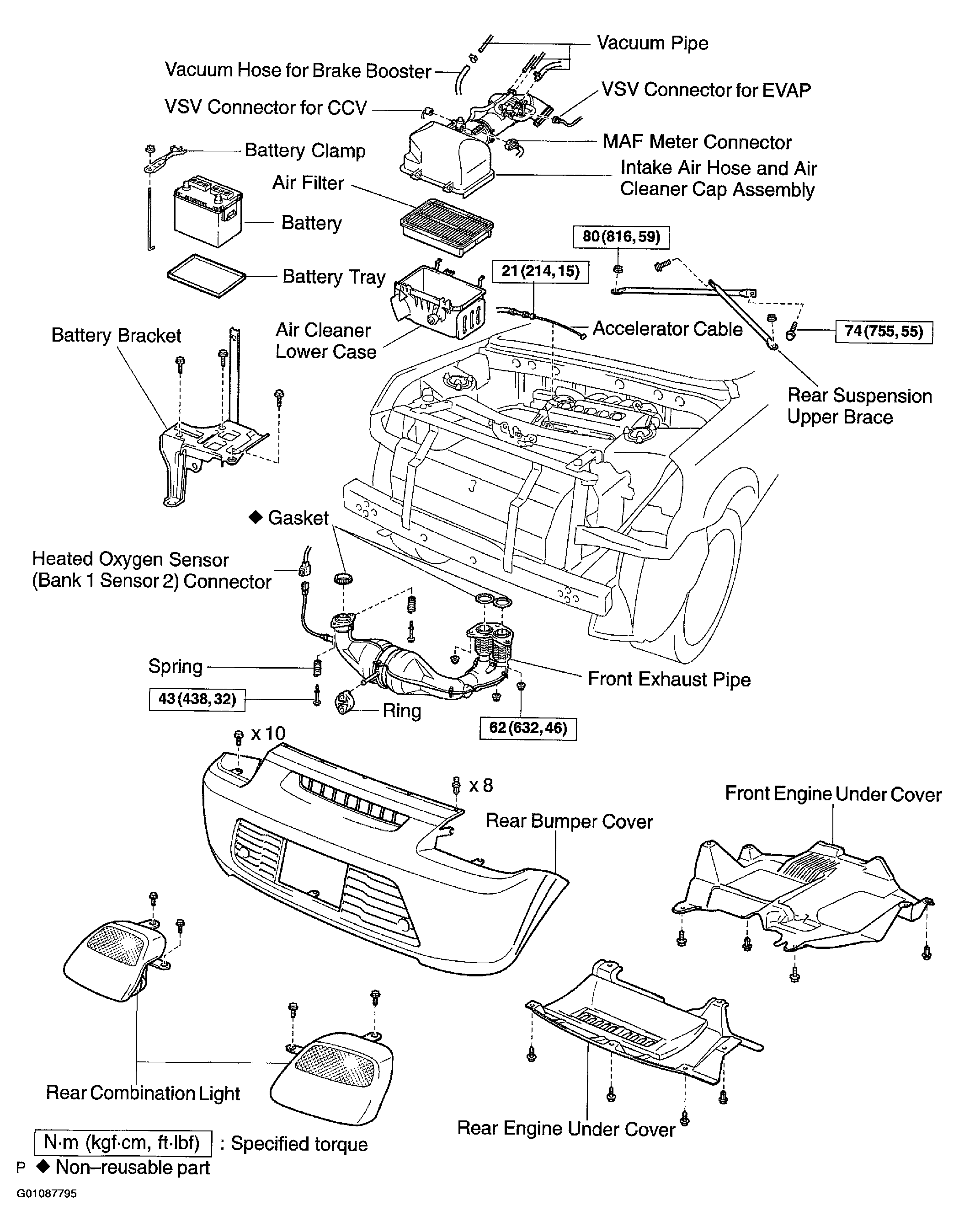

  15. INSTALL REAR BUMPER COVER AND REAR COMBINATION LIGHTS  . See Figure.
  16. CONNECT ACCELERATOR CABLE

    Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

  17. INSTALL INTAKE AIR HOSE AND AIR CLEANER CAP ASSEMBLY
    1. Install the air cleaner lower case with the 2 bolts.
    2. Install the air filter.
    3. Install the intake air hose and air cleaner cap assembly to the throttle body, and tighten the hose clamp.

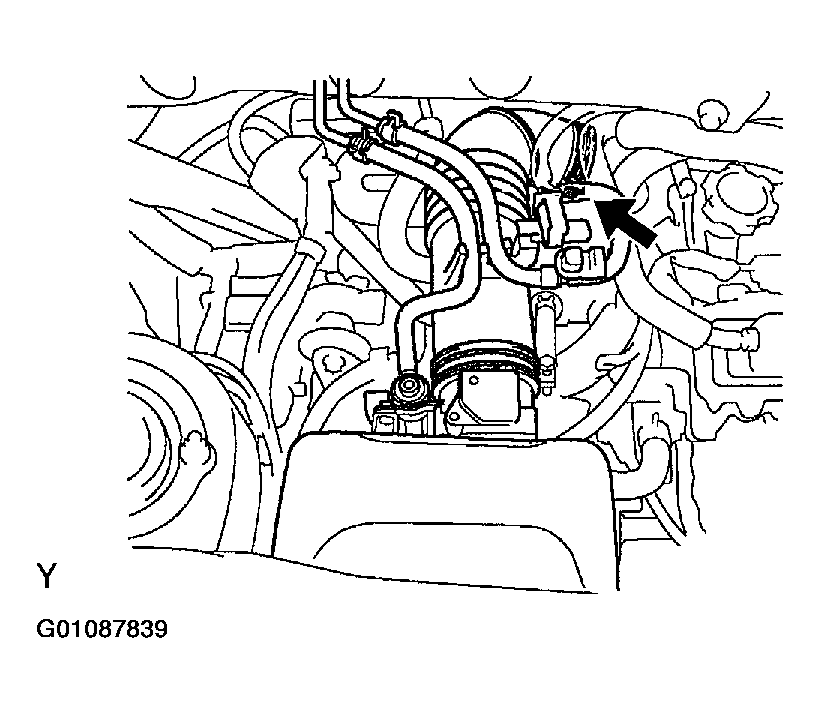

      Fig 21: Reinstalling Air Intake Hose
      G01087839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the air cleaner cap with the 2 clamps.
    5. Connect the 4 hoses.
    6. Connect the MAF meter connector, VSV connector for EVAP and VSV connector for CCV.

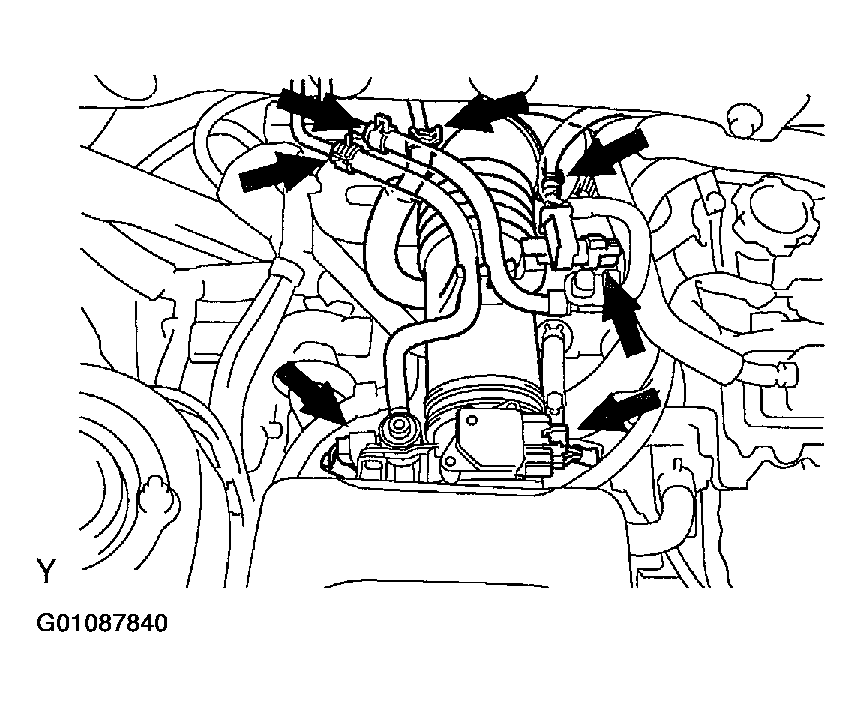

      Fig 22: Reconnecting Hoses At Intake Air Hose
      G01087840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

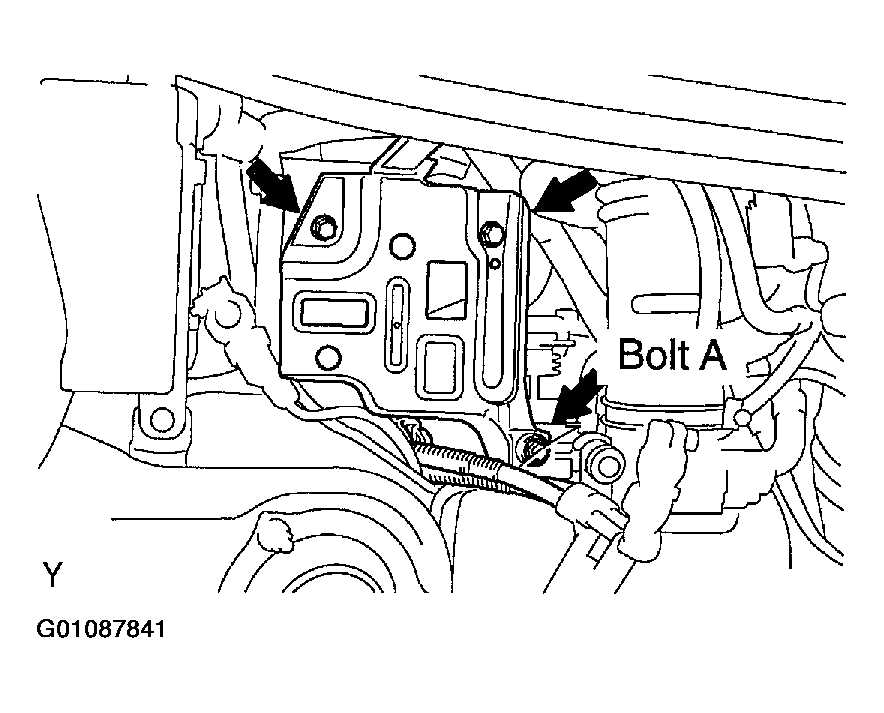

  18. INSTALL BATTERY BRACKET
    1. Install the battery bracket with the 3 bolts.
      NOTE: Install bolt A with the air cleaner case.
      Fig 23: Reinstalling Battery Bracket
      G01087841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the tray and battery.
  19. M/T: FILL CLUTCH RESERVOIR WITH BRAKE FLUID AND BLEED CLUTCH SYSTEM
  20. M/T: FILL WITH TRANSAXLE OIL  . See RECOMMENDED FLUIDS .
  21. SMT: FILL WITH TRANSMISSION OIL  . See RECOMMENDED FLUIDS .
  22. FILL WITH ENGINE OIL
  23. SMT: CHECK SMT SYSTEM FLUID LEVEL  . See GEARSHIFT ACTUATOR ASSEMBLY (SEQUENTIAL TRANSAXLE .
  24. FILL WITH ENGINE COOLANT  . See COOLANT .
  25. SMT: START ENGINE AND PERFORM INITIAL LEARNING OF SMT SYSTEM  . See PROGRAMMING .
  26. CHECK FOR LEAK
  27. PERFORM ENGINE ADJUSTMENT
  28. CHECK FRONT WHEEL ALIGNMENT
  29. INSTALL ENGINE UNDER COVERS
  30. INSTALL SUSPENSION UPPER BRACE
  31. INSTALL ENGINE HOOD
  32. ROAD TEST VEHICLE

    Check for abnormal noises, shock slippage, correct shift points and smooth operation.

  33. RECHECK ENGINE COOLANT AND OIL LEVELS
