Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

Disconnect the radio receiver assembly R7 connector and stereo component amplifier assembly S11 connector.

Measure the resistance according to the values in the table below.

Resistance

DISPLAY REFERENCE DISPLAY REFERENCE

Tester connection	Specified condition
L+ (S11-3) - L+ (R7-9)	Below 1 Ω
L- (S11-2) - L- (R7-19)	Below 1 Ω
R+ (S11-5) - R+ (R7-8)	Below 1 Ω
R- (S11-4) - R- (R7-18)	Below 1 Ω
L+ (S11-3) - Body ground	10 kΩ or higher
L- (S11-2) - Body ground	10 kΩ or higher
R+ (S11-5) - Body ground	10 kΩ or higher
R- (S11-4) - Body ground	10 kΩ or higher

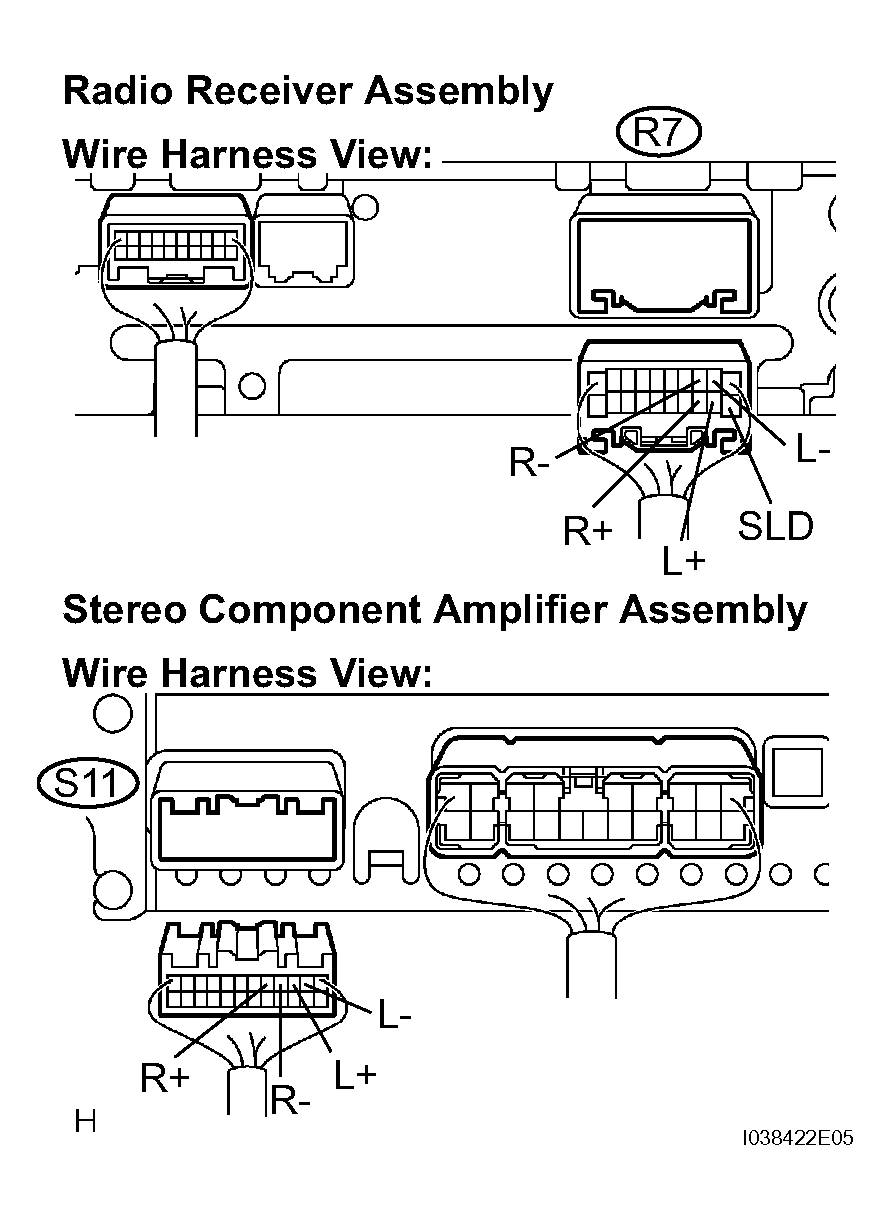

Fig 1: Identifying Radio Receiver And Stereo Component Amplifier Connector Terminals

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
