Cruise Control Switch Circuit: Wiring Diagram

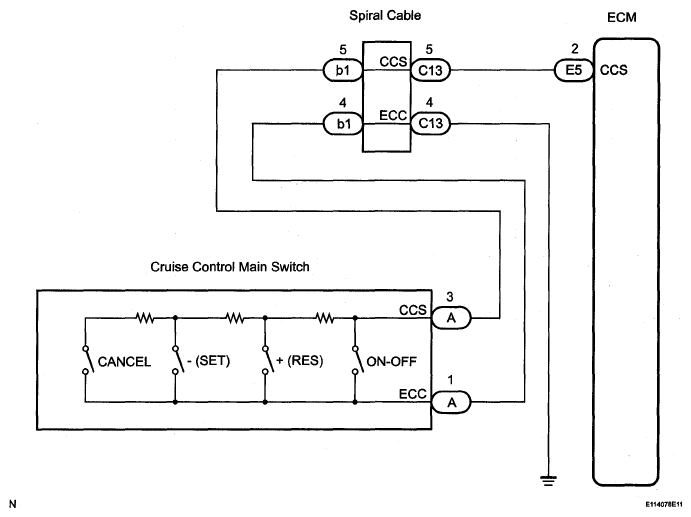

Fig 1: Cruise Control Switch Wiring Diagram
G05140607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
