Installation [03/2019 - ]: Procedure

  1. INSTALL REMOTE OPERATION CONTROLLER ASSEMBLY

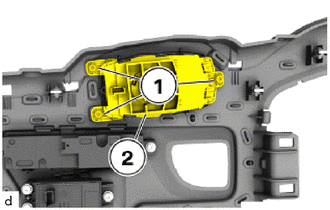

    1. Position the remote operation controller assembly (2).
      GTY902934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Replace screws (1).
    3. Tighten the T20 screws (1).

      Torque: 1.5 N.m (15 kgf/cm, 13 in.lbf)

  2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to INSTALLATION [03/2019 - 07/2020] , or refer to INSTALLATION [07/2020 - 07/2022] , or refer to INSTALLATION [07/2022 - ]
