Installation [03/2019 - ]: Procedure

  1. INSTALL ACCELERATION SENSOR ASSEMBLY

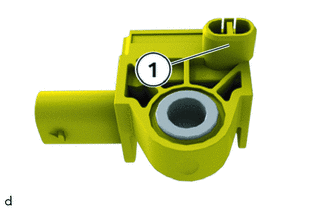

    1. Install the acceleration sensor assembly with the retaining pin (1) in the bore hole at the front shock absorber assembly.
      GTY840472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the acceleration sensor assembly.
    3. Tighten down E10 bolt.

      Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)

    4. Connect connectors and lock.
