Accessory Roof Rails Installation

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove roof trim. Refer to ROOF TRIM REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

Courtesy of VINFAST, LLC

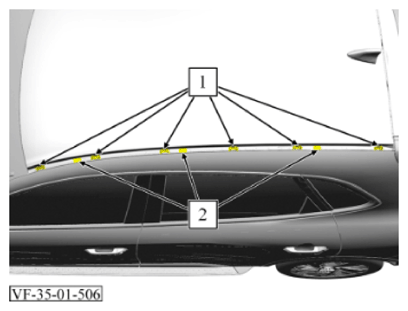

1. Remove 6 clamps (1).
2. Remove 3 adhesive pads (2).

   Courtesy of VINFAST, LLC

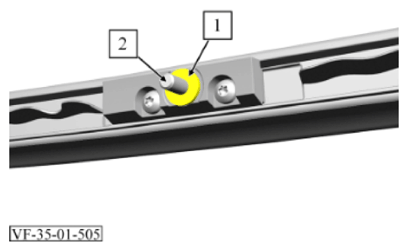

3. Insert the gaskets (1) and bolts (2) as depicted.

   Courtesy of VINFAST, LLC

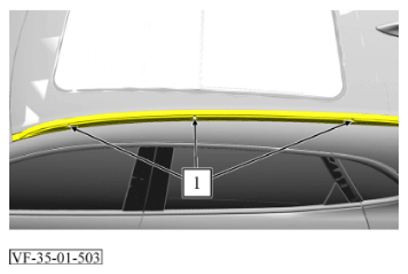

4. Place and align the accessory roof rails (1).

   Courtesy of VINFAST, LLC

   NOTE: Damage
   Risk of damage to vehicle paint work.

   • Mask off/protect paint work appropriately to avoid damage.
5. Tighten 3 bolts (1) evenly.

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

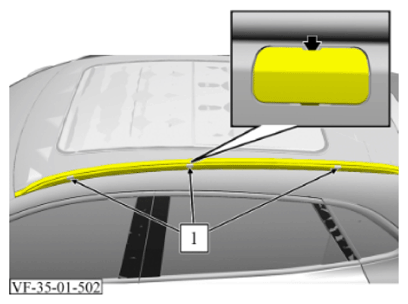

6. Install 3 cover caps (1).
