Description & Operation

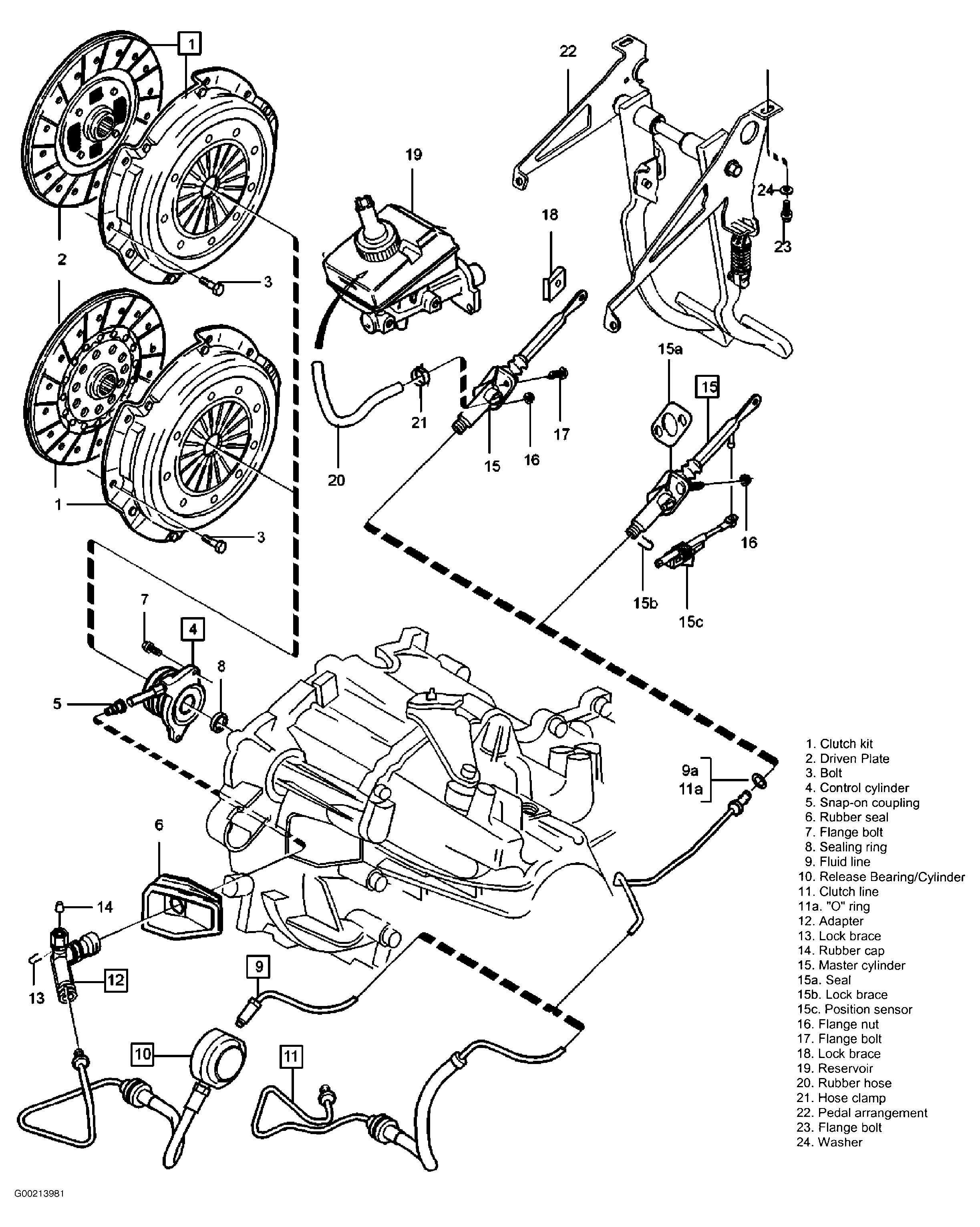

The single, dry-type disc clutch uses a hydraulically operated master cylinder with a clutch release cylinder mounted on clutch housing. Entire system from clutch pedal to throw-out bearing requires no lubrication. Hydraulic clutch transmission system does not require any maintenance. See Fig 1 .
