Air Bag Control Module

SRS Signal Specification







General

All values given below are between the respective terminal in column 1 and terminal 6 (power ground) unless otherwise stated in brackets after the table entry.

U = DC voltage in volts (V)
U low = Voltage approximately 0 V
U bat = Battery voltage (V)

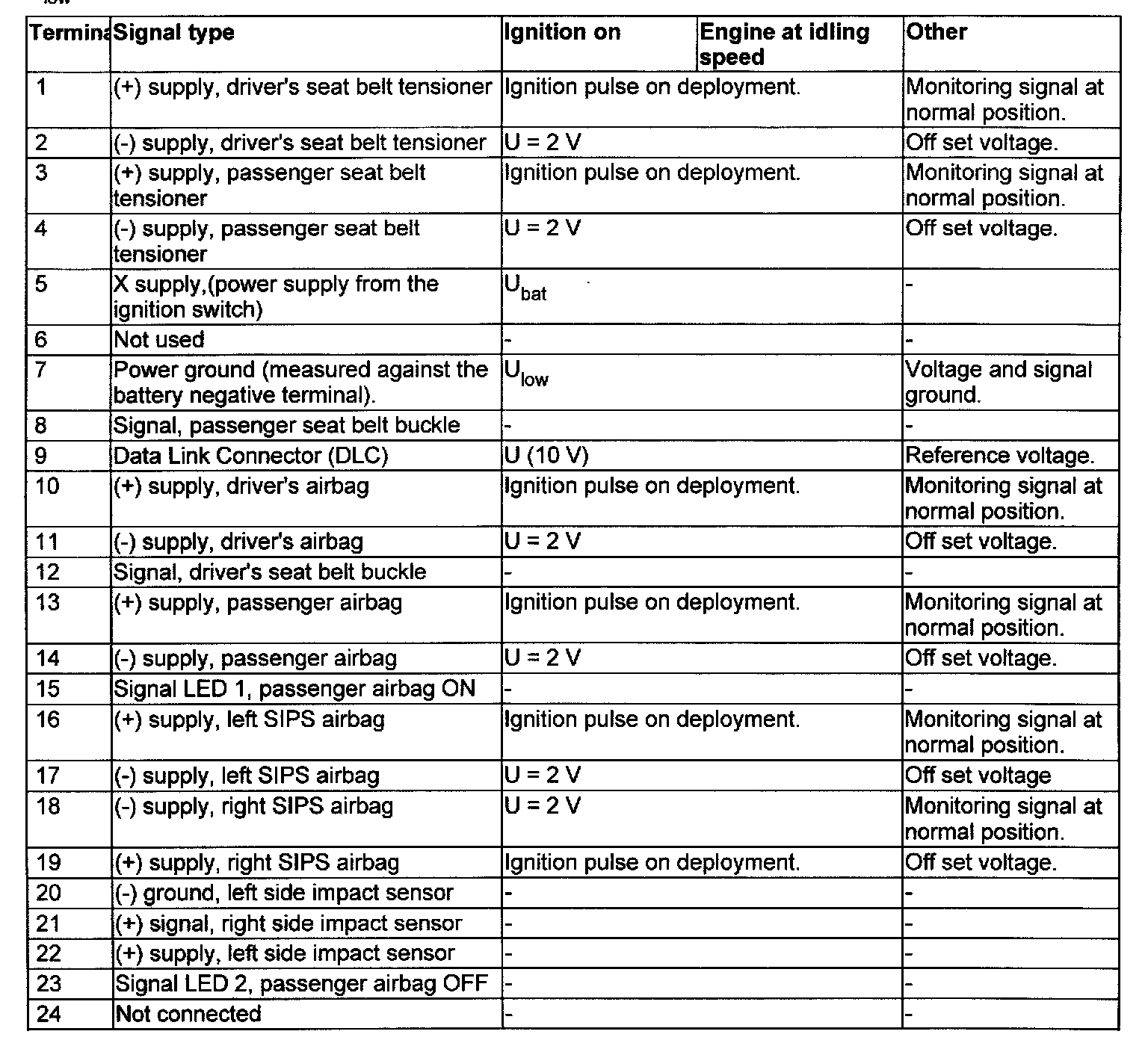

Terminal 1 - 24:

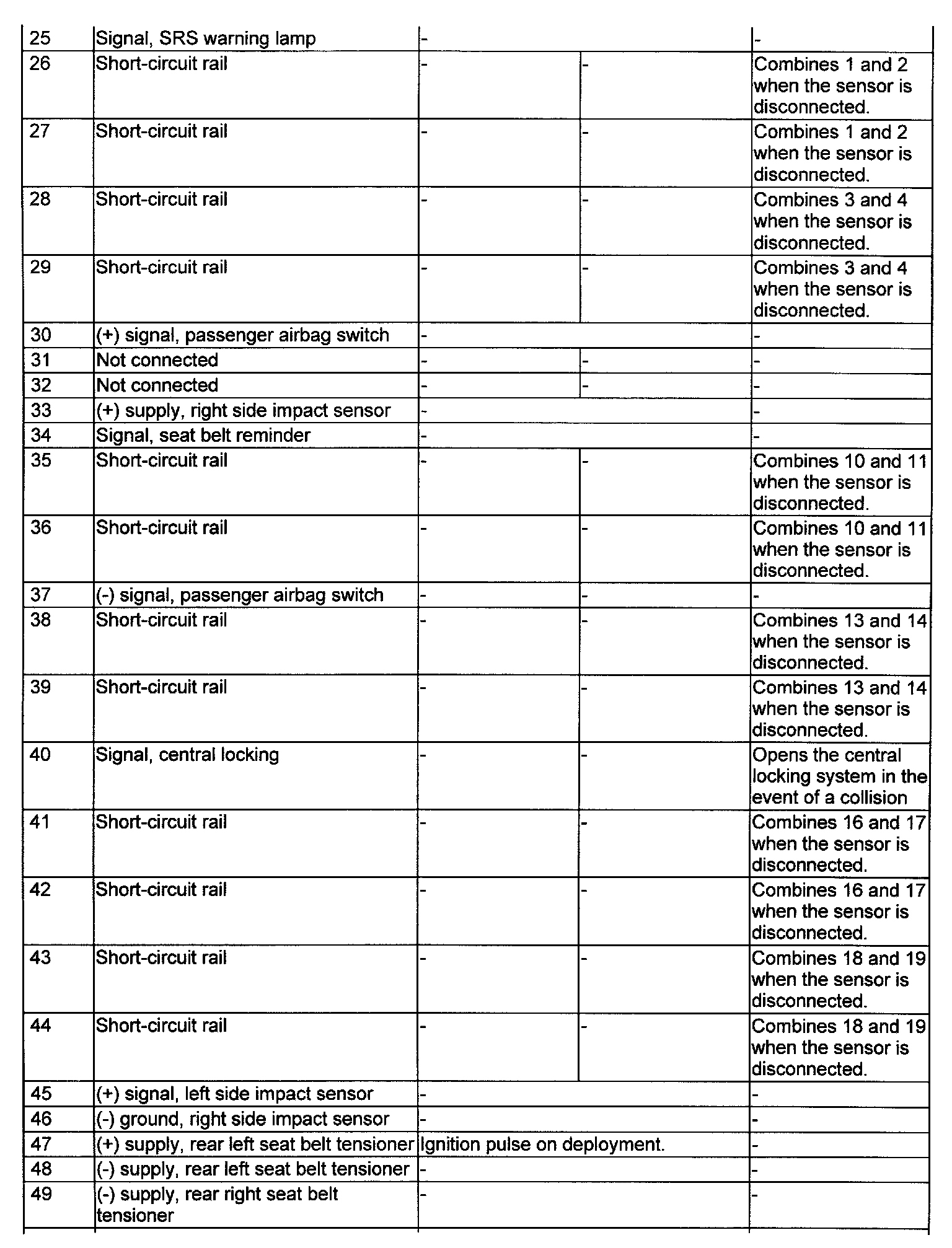

Terminal 25 - 49:

Terminal 50:
