Signal specification

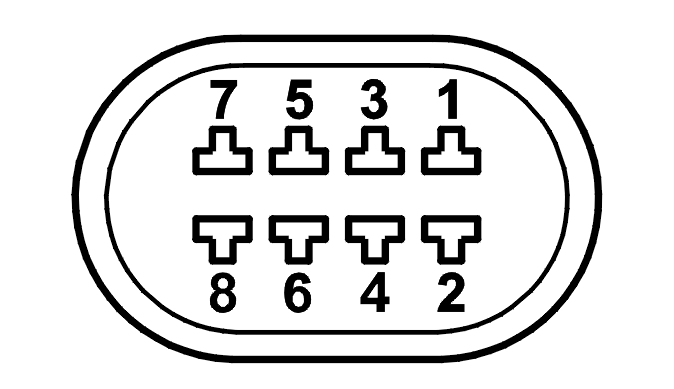

Connector A
All the values indicated are taken between the terminal in column 1 and terminals #2 or #4 (ground).
Pins 3, 5, and 6 are not used.
| - | U = DC in volts (V) | - | Ubat = battery voltage (V) |
| - | I = current in amperes (A) | - | Ulow = Voltage near 0 V |
| - | F = Frequency in Hertz (Hz) | - | - |
| ECU | Signal type | Ignition on | Other |
| #A1 | Power supply | U = Ubat | With a 10 A fuse. |
| #A2 | Signal ground 1 | U = Ulow | - |
| #A3 | - | - | - |
| #A4 | Signal ground 2 | U = Ulow | - |
| #A5 | - | - | - |
| #A6 | - | - | - |
| #A7 | Control modules communication cable (CAN H) | U=2.5-4.0 V | - |
| #A8 | Control modules communication cable (CAN L) | U=1.0-2.5 V | - |
Connector B
All the values indicated are taken between the terminal in column 1 and terminal #2 (ground).
| ECU | Signal type | Ignition on | Other |
| #B1 | Power supply | U = Ubat | - |
| #B2 | Signal ground | U = Ulow | - |
