Code 13 - Atmospheric Pressure Sensor (Pa Sensor)

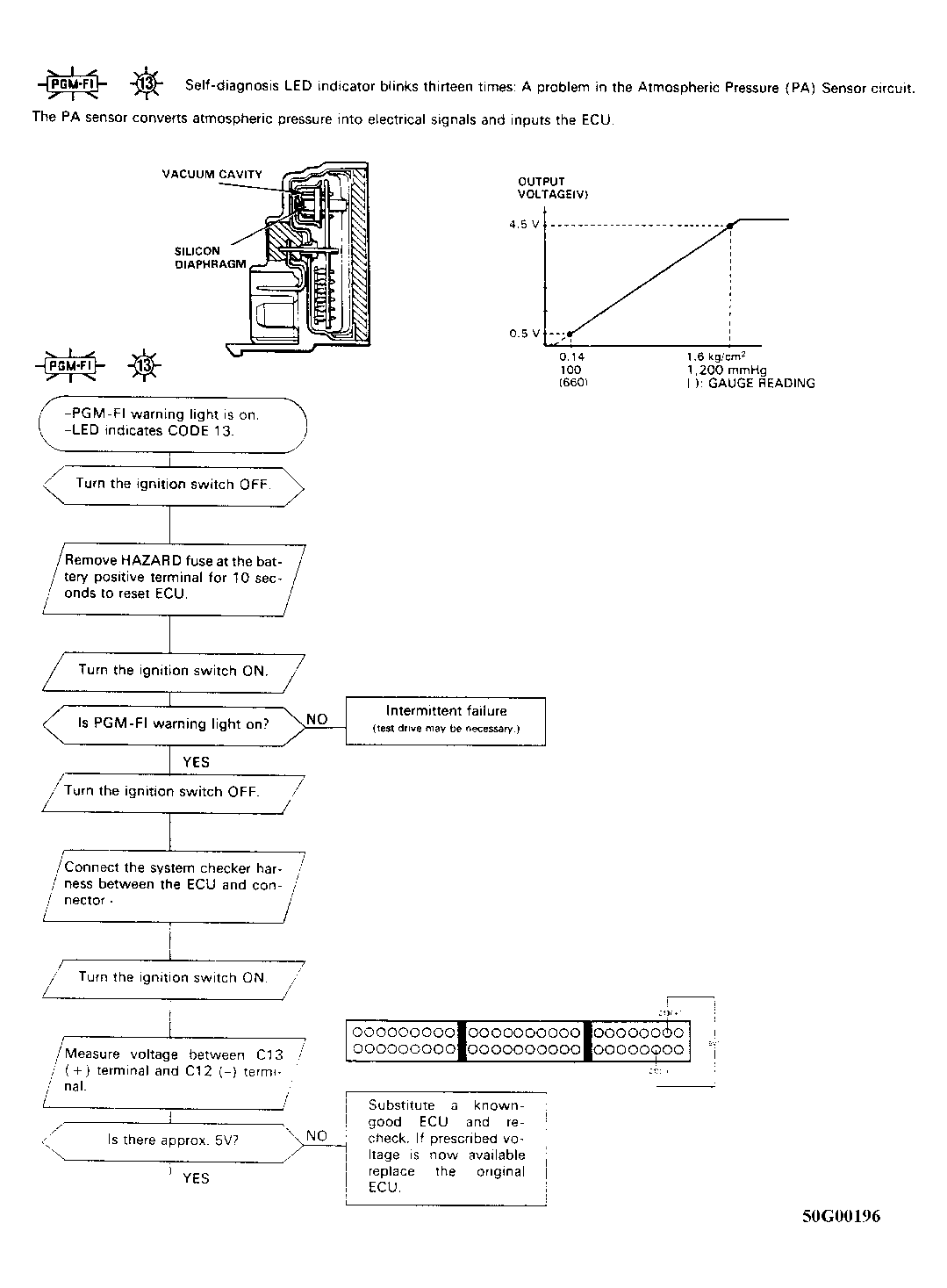

Fig 1: Code 13, PA Sensor, Flow Chart (1 of 2)
G50G00196

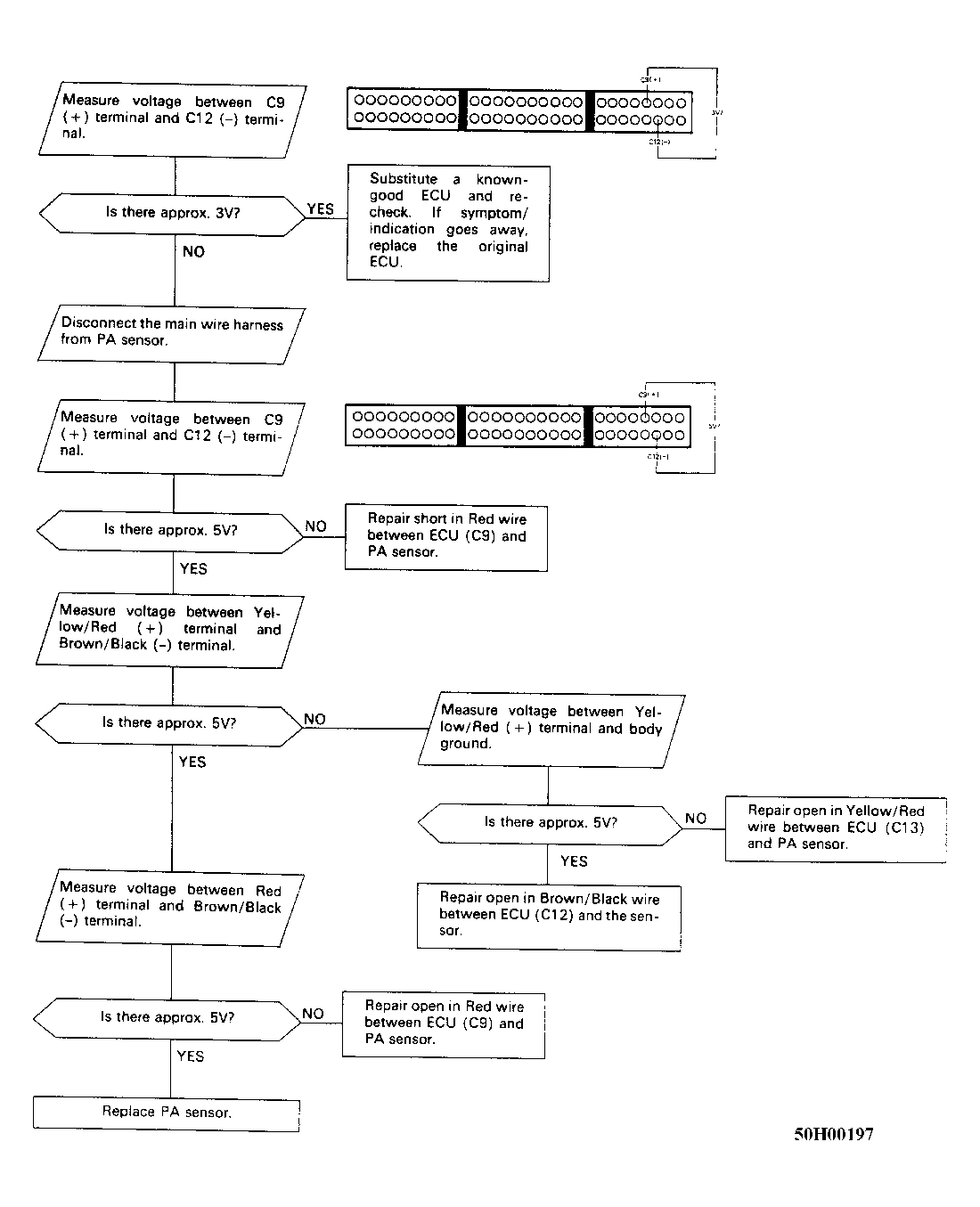

Fig 2: Code 13, PA Sensor, Flow Chart (2 of 2)
G50H00197
