Code 7 - Throttle Angle Sensor

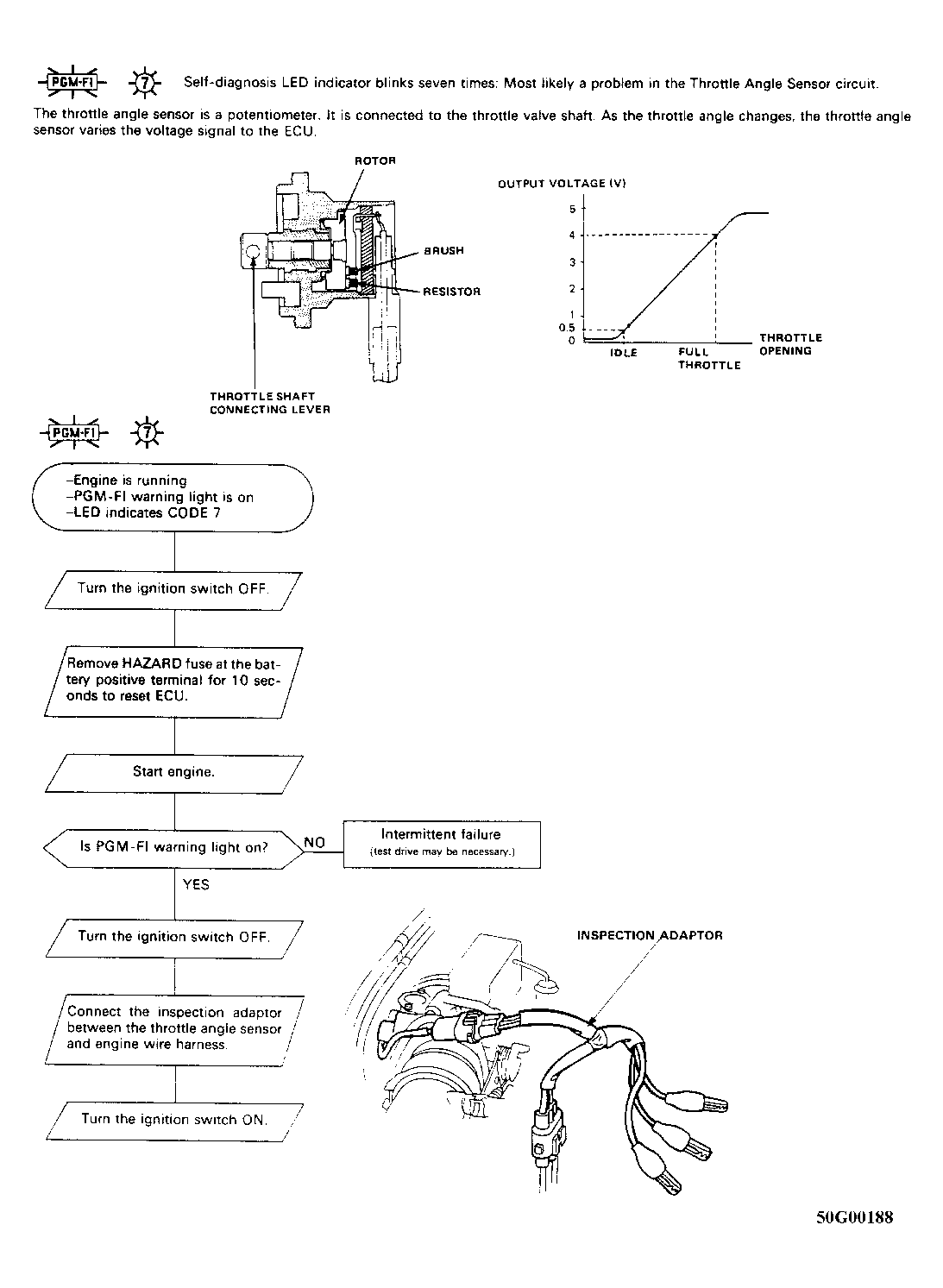

Fig 1: Code 7, Throttle Angle Sensor, Flow Chart (1 of 2)

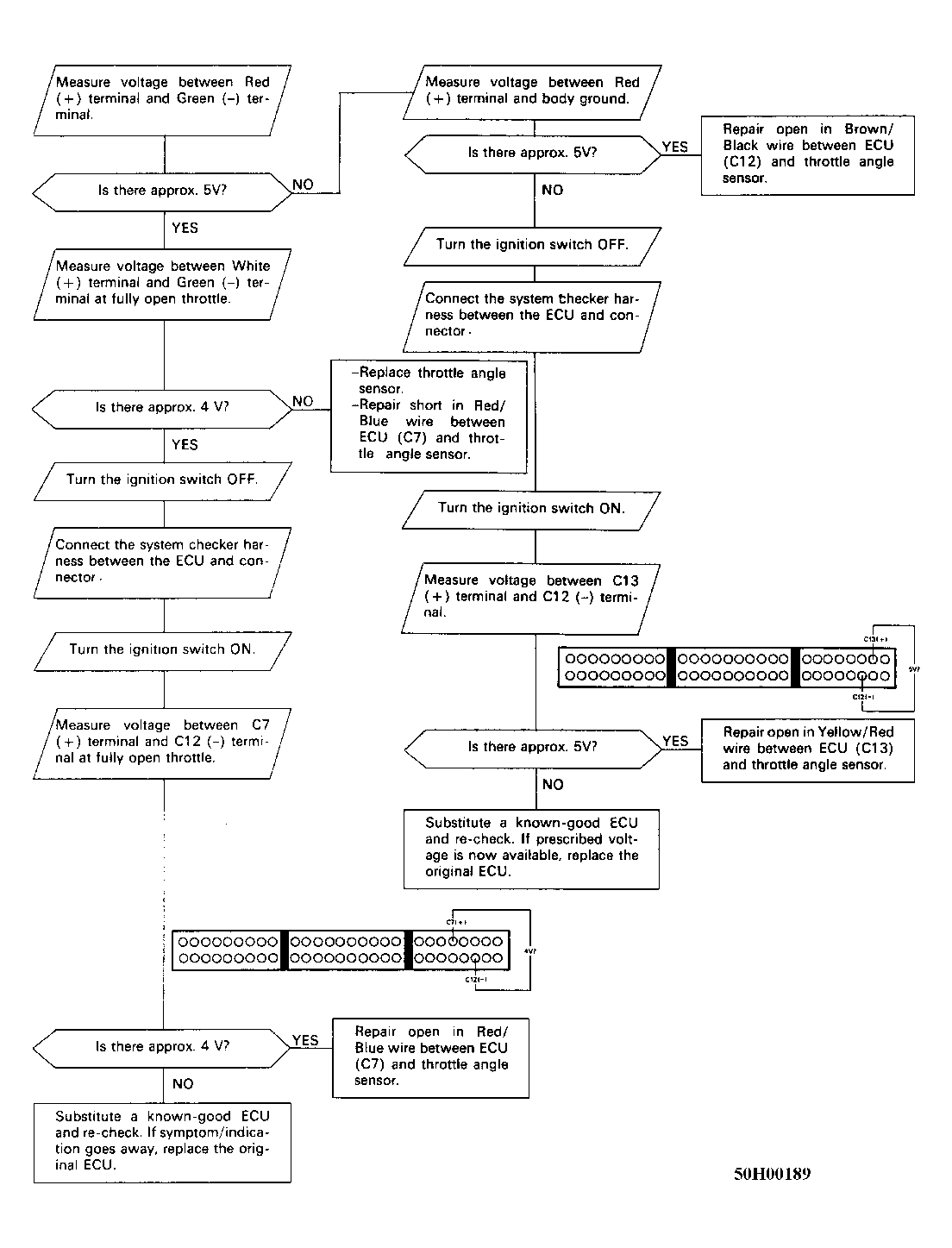

Fig 2: Code 7, Throttle Angle Sensor, Flow Chart (2 of 2)
