Passenger Window Door Switch Test

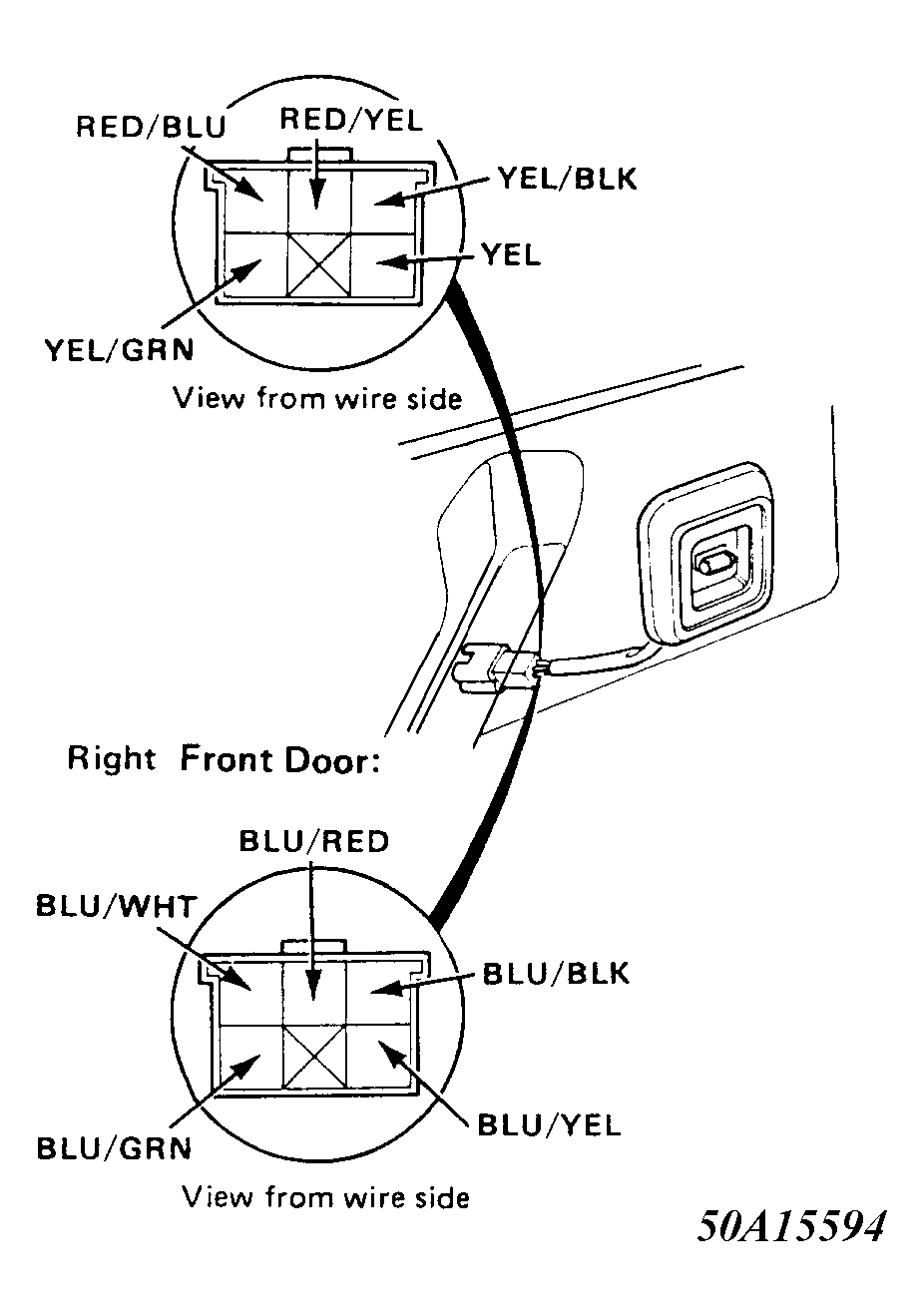

Remove door trim panel. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See appropriate PASSENGER POWER WINDOW SWITCH TEST table.
PASSENGER POWER WINDOW SWITCH (REAR DOOR SWITCH) TEST
| Switch Position | Continuity |
|---|---|
| Up | Yellow/Black-Red/Yellow & Red/Blue-Yellow/Green |
| Off | Red/Blue-Yellow/Green & Red/Yellow-Yellow |
| Down | Yellow/Black-Red/Blue & Red/Yellow-Yellow |
PASSENGER POWER WINDOW SWITCH (FRONT DOOR SWITCH) TEST
| Switch Position | Continuity |
|---|---|
| Up | Blue/Black-Blue/Red & Blue/White-Blue/Green |
| Off | Blue/White-Blue/Green & Blue/Red-Blue/Yellow |
| Down | Blue/Black-Blue/White & Blue/Red-Blue/Yellow |
