Power Seat Relay Test

Remove driver's seat, then remove relay from behind seat cushion. There should be continuity between terminals "A" and "C" when battery is connected to "E" and "F" terminals. There should be continuity between terminals "B" and "C" when battery is disconnected.

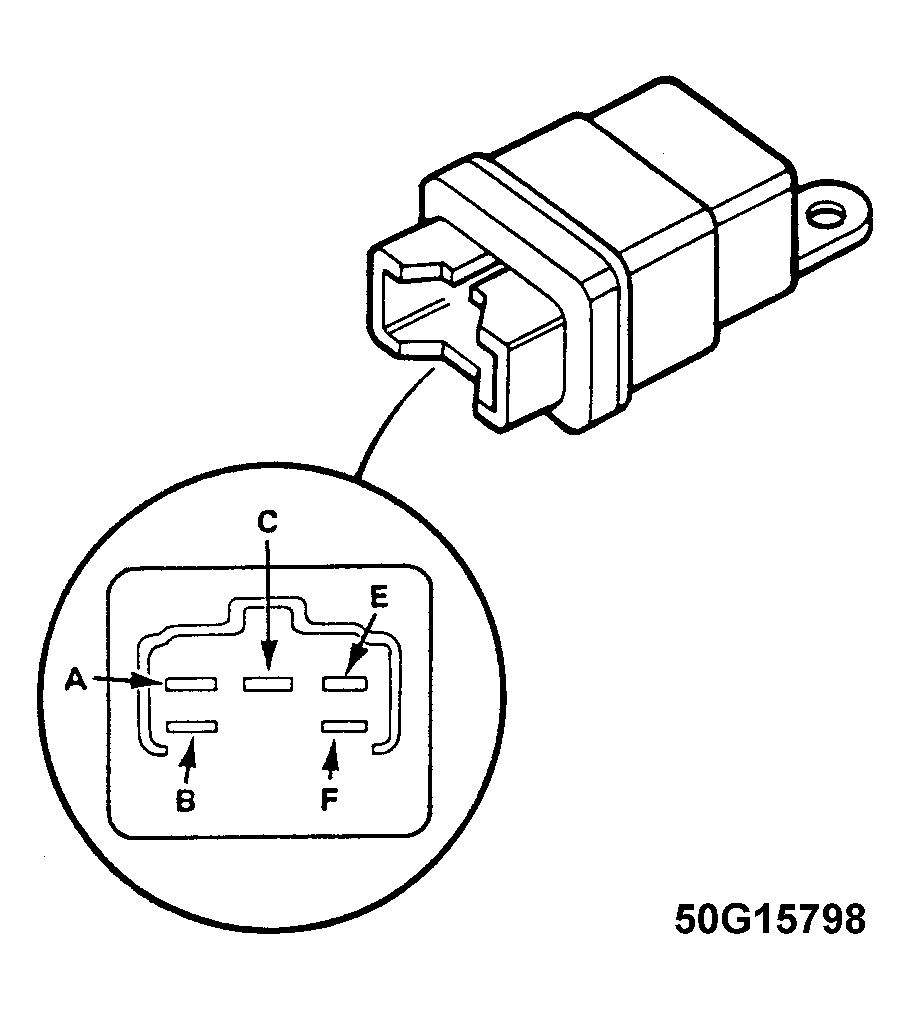

Fig 1: Power Seat Relay Test Terminals
G50G15798Courtesy of AMERICAN HONDA MOTOR CO., INC.
