Control Unit

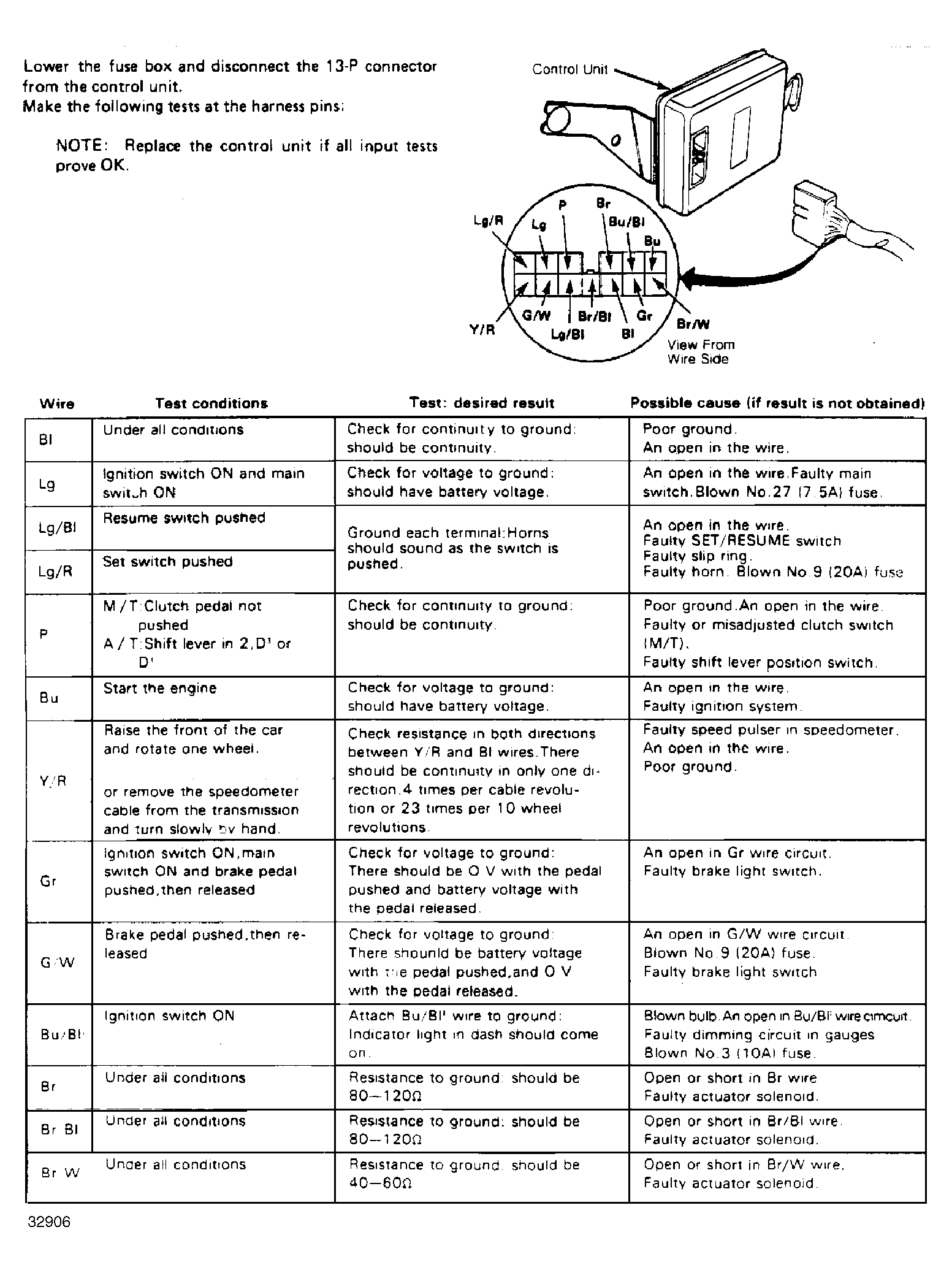

Turn ignition off. Disconnect control unit connector. Using a DVOM, check wire(s) specified under test condition. See Figure for control unit testing. If all test results are okay, replace control unit.
