Wiper System

For testing wiper system, see Fig 1 and Fig 2 .

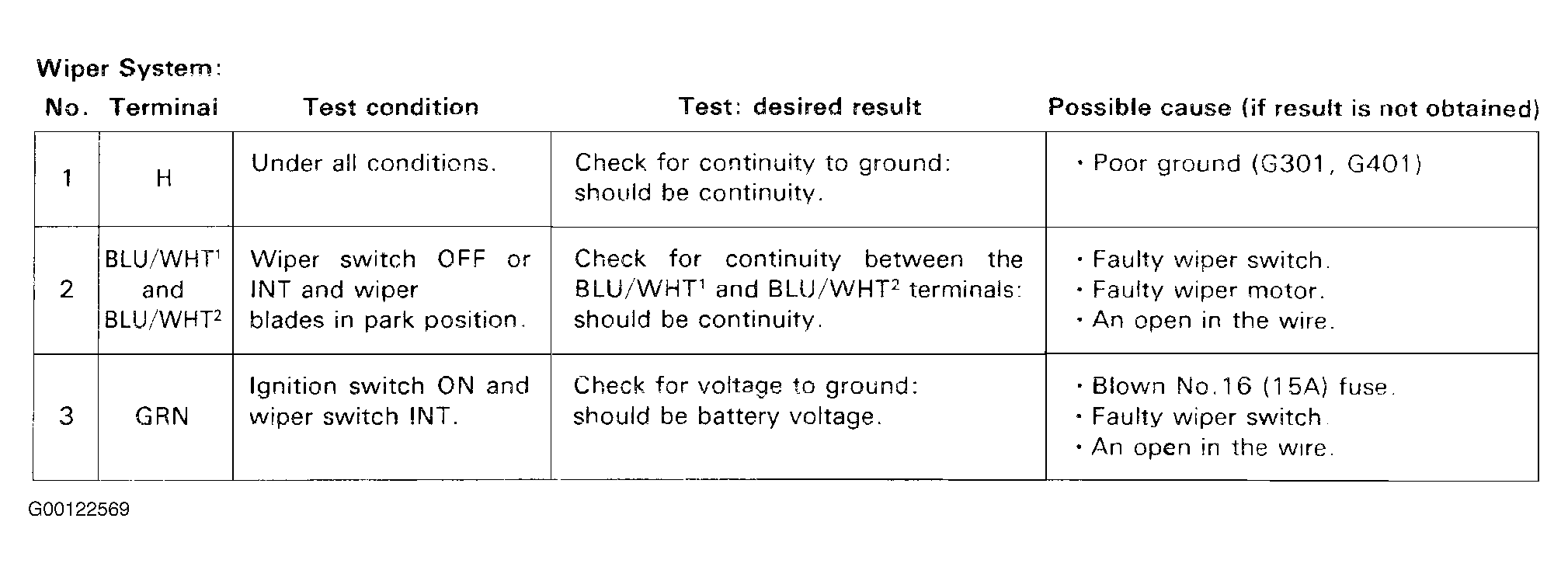

Fig 1: Wiper System Input Test (1990)
G00122569Courtesy of AMERICAN HONDA MOTOR CO., INC.

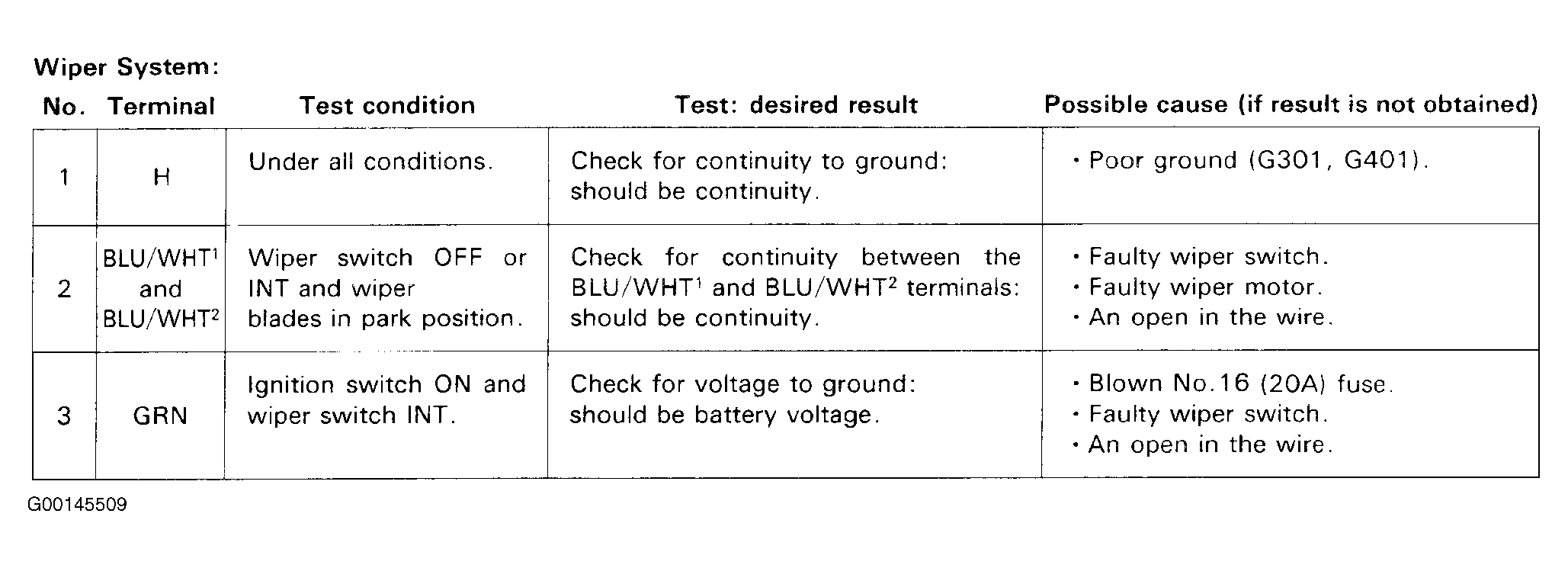

Fig 2: Wiper System Input Test (1991)
G00145509Courtesy of AMERICAN HONDA MOTOR CO., INC.
