Key-On Warning System
WARNING:
This page is about a different car, the 1990 Acura Legend. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For connector terminal identification, see
Figure
. For input test, see
Fig 1
.

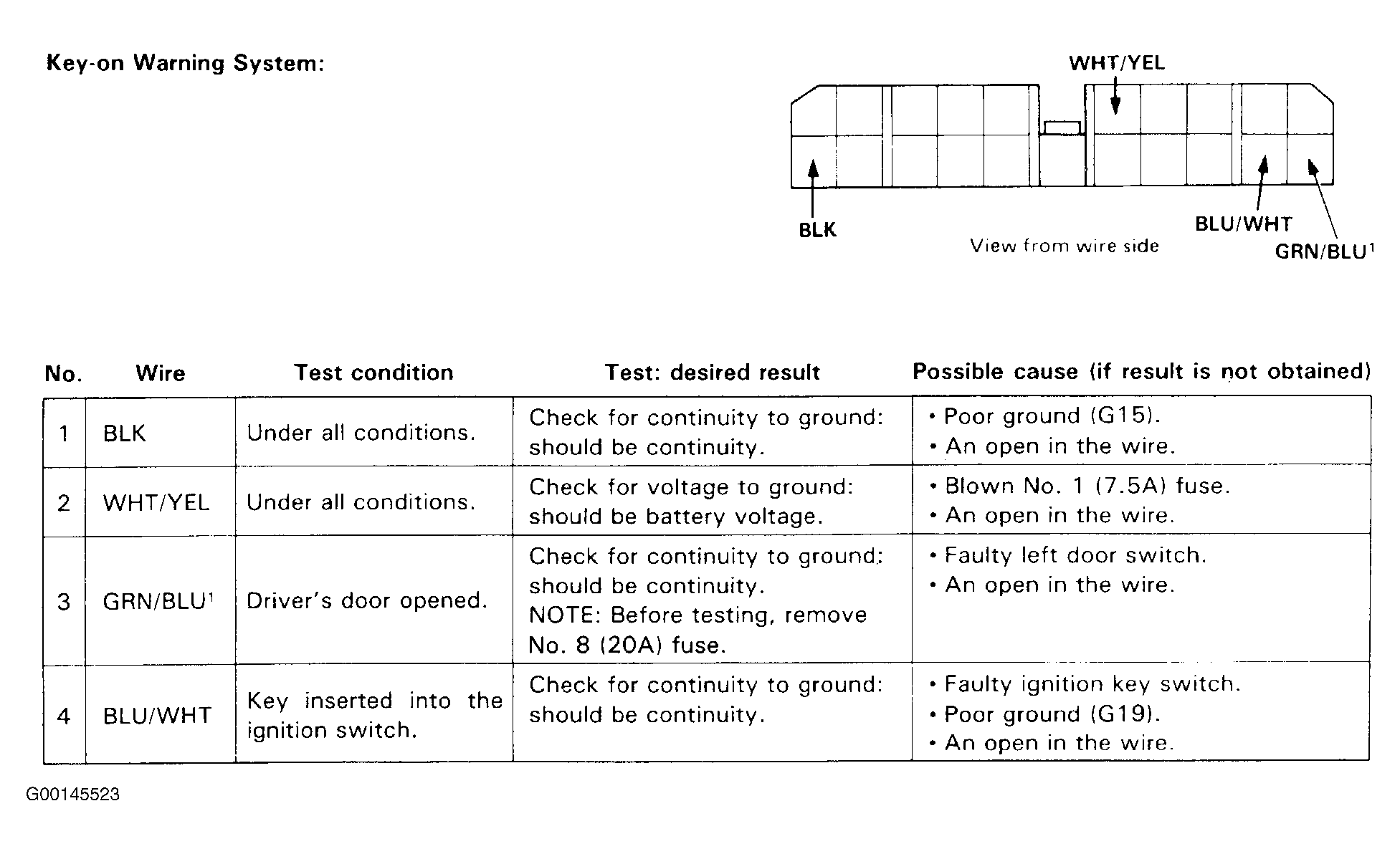

Fig 1: Key-On Warning System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
