NOTE:

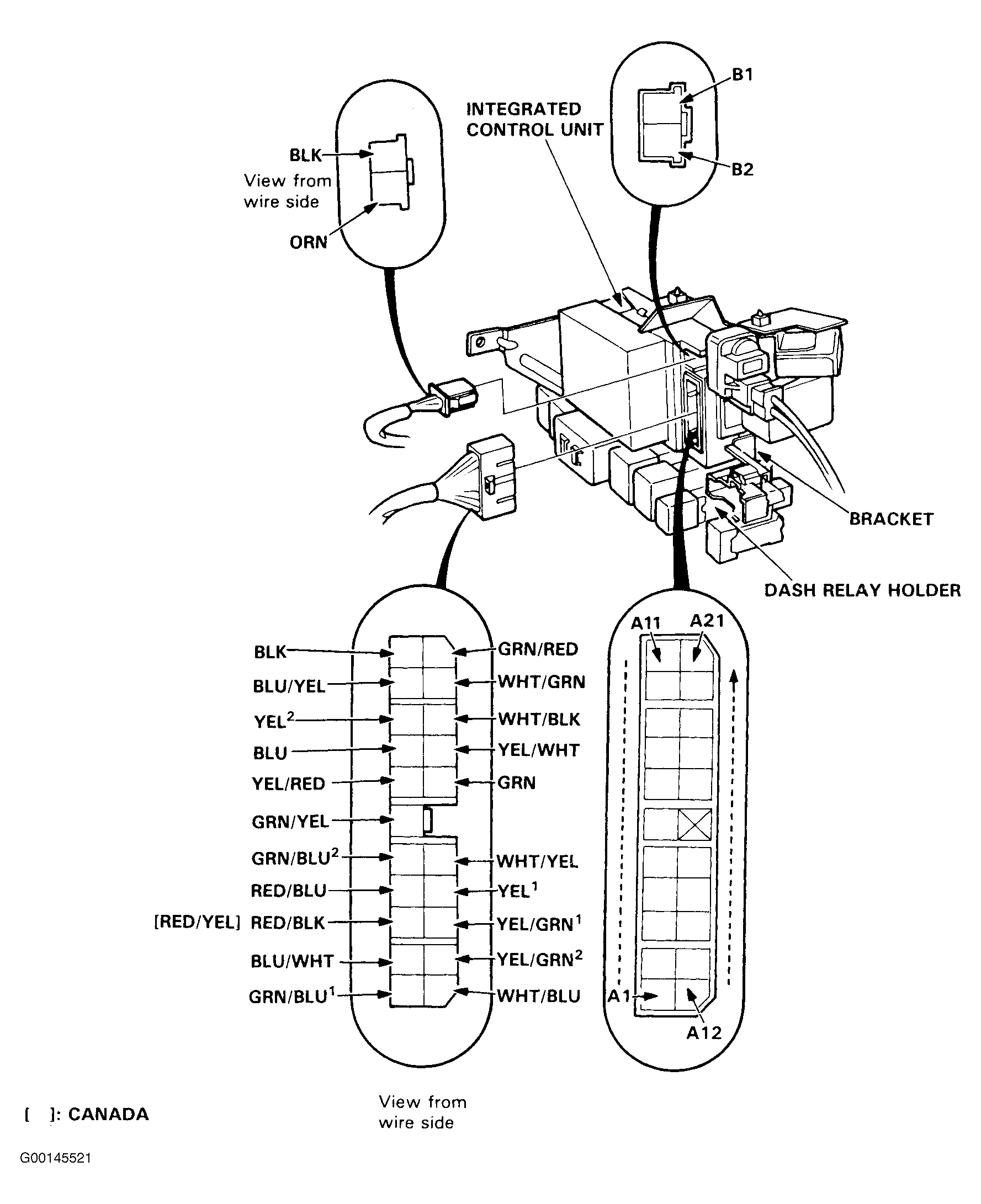

For connector terminal identification, see Figure. For input test, see Fig 1.

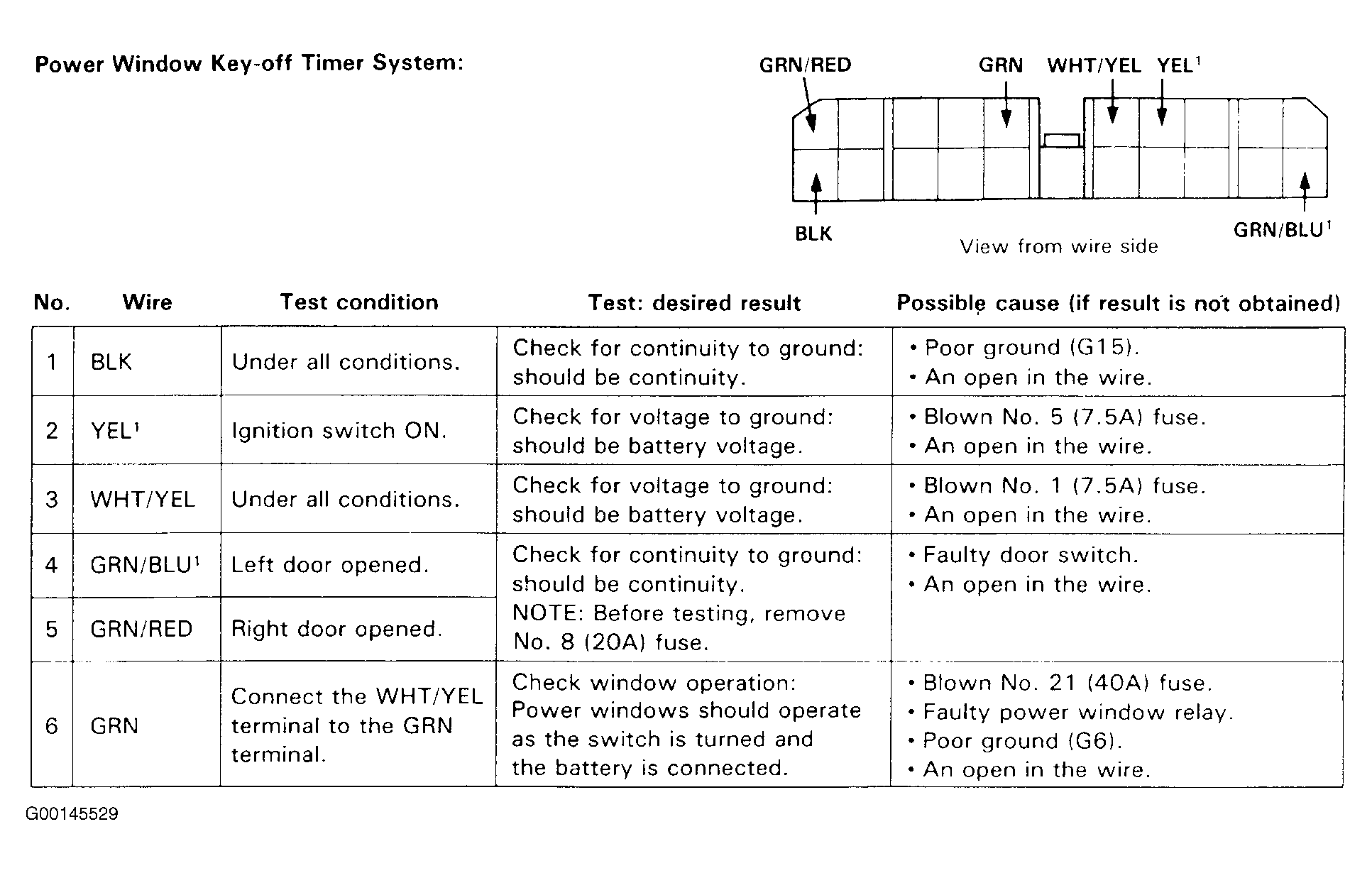

Fig 1: Power Window Key-Off Timer System Input Test
