Removal & Installation

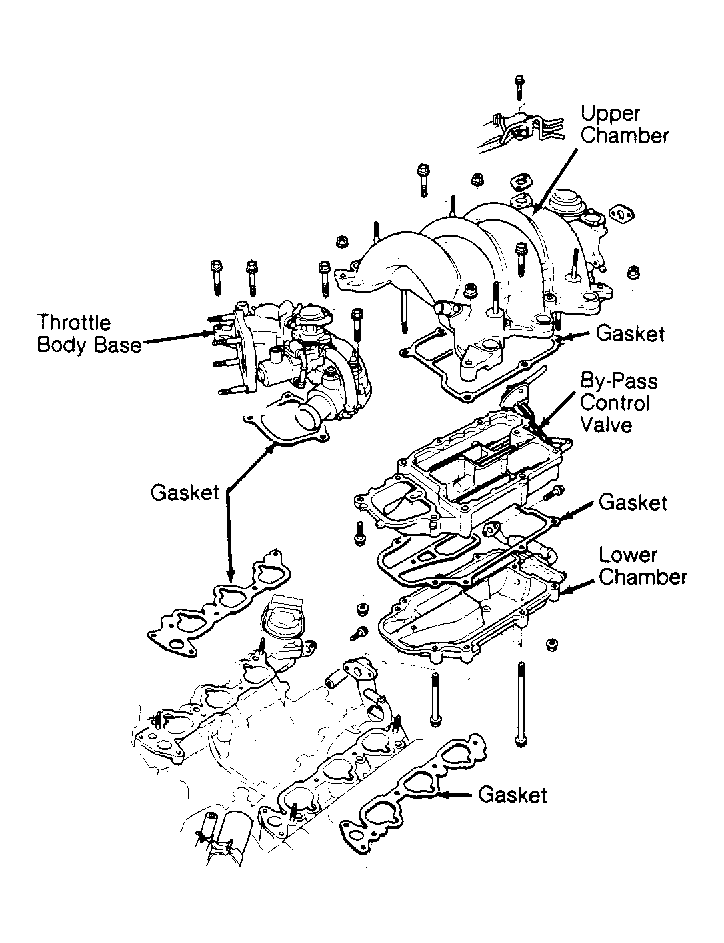

Disconnect and label all hoses and wires from assembly. Remove throttle body. Remove air chamber mounting bolts. Remove bolts, and separate upper and lower air chambers from control valve chamber. See Fig 1. To install, reverse removal procedure.
