Entry Light Control System

NOTE: See Figure or Figure for connector terminal identification. For input test, see Fig 1 or Fig 2

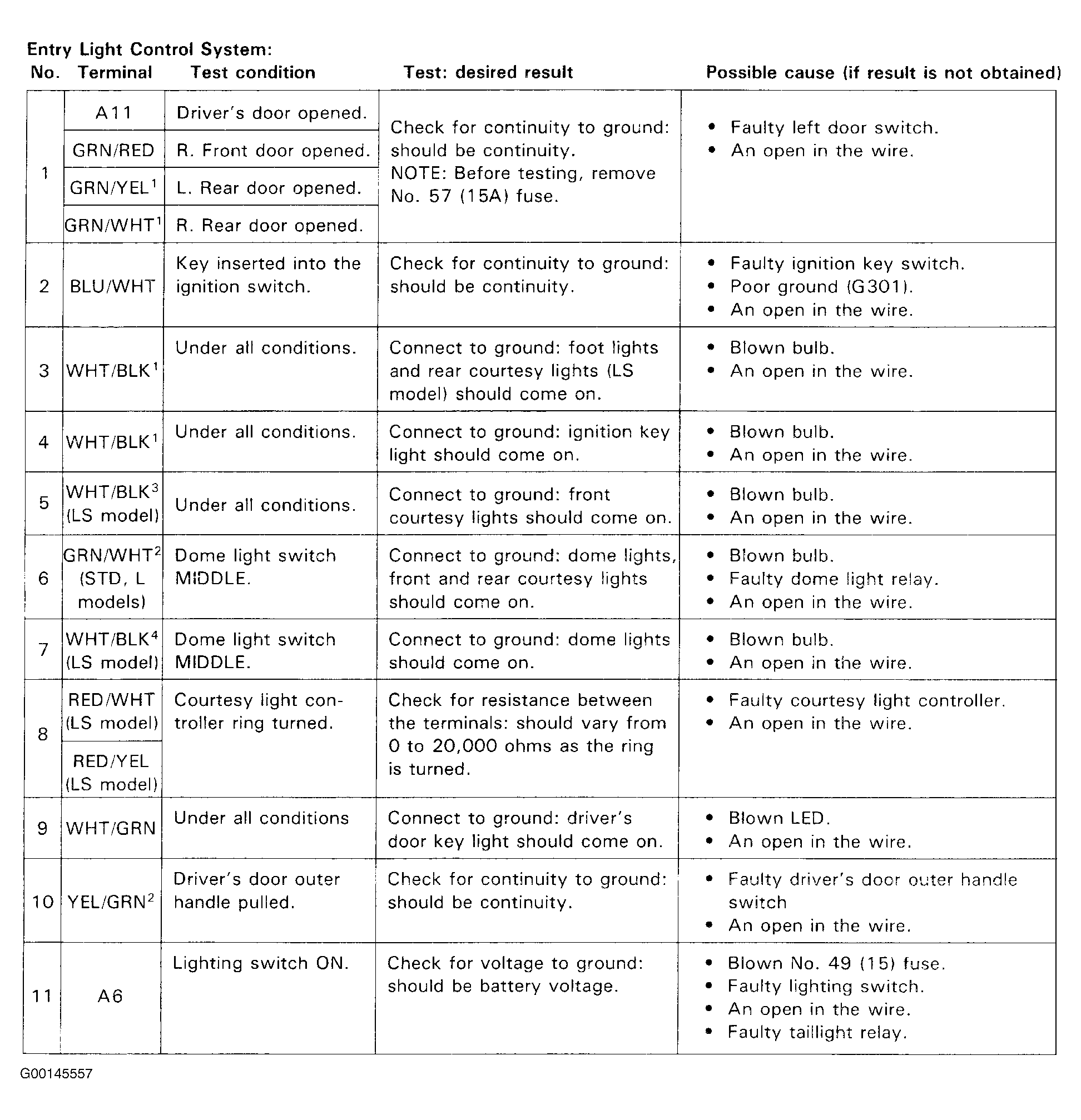

Fig 1: Entry Light Control System Input Test (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

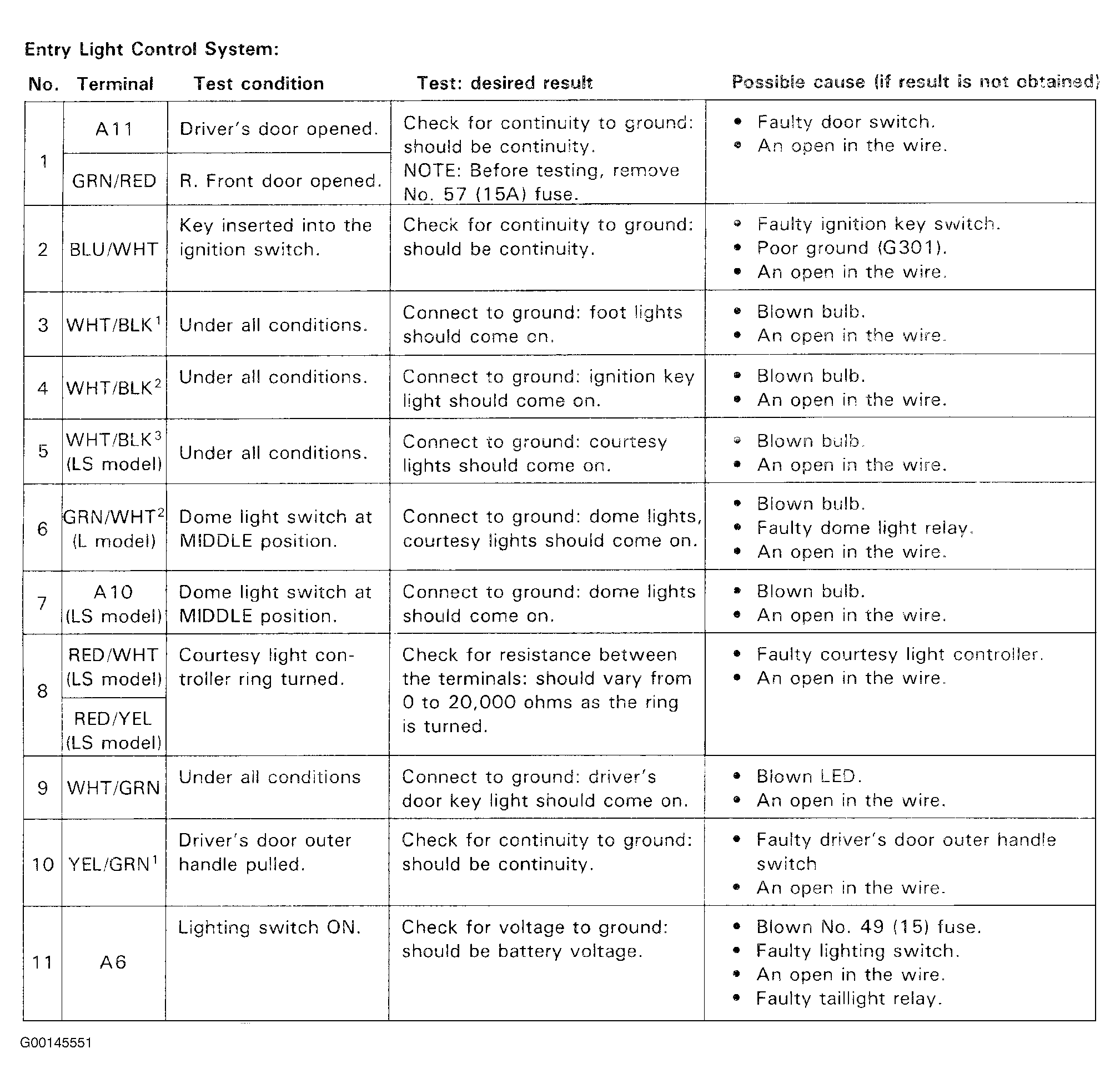

Fig 2: Entry Light Control System Input Test (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
