Side Marker Light Flasher System

NOTE: See Figure or Figure for connector terminal identification. For input test, see Fig 1 or Fig 2 .

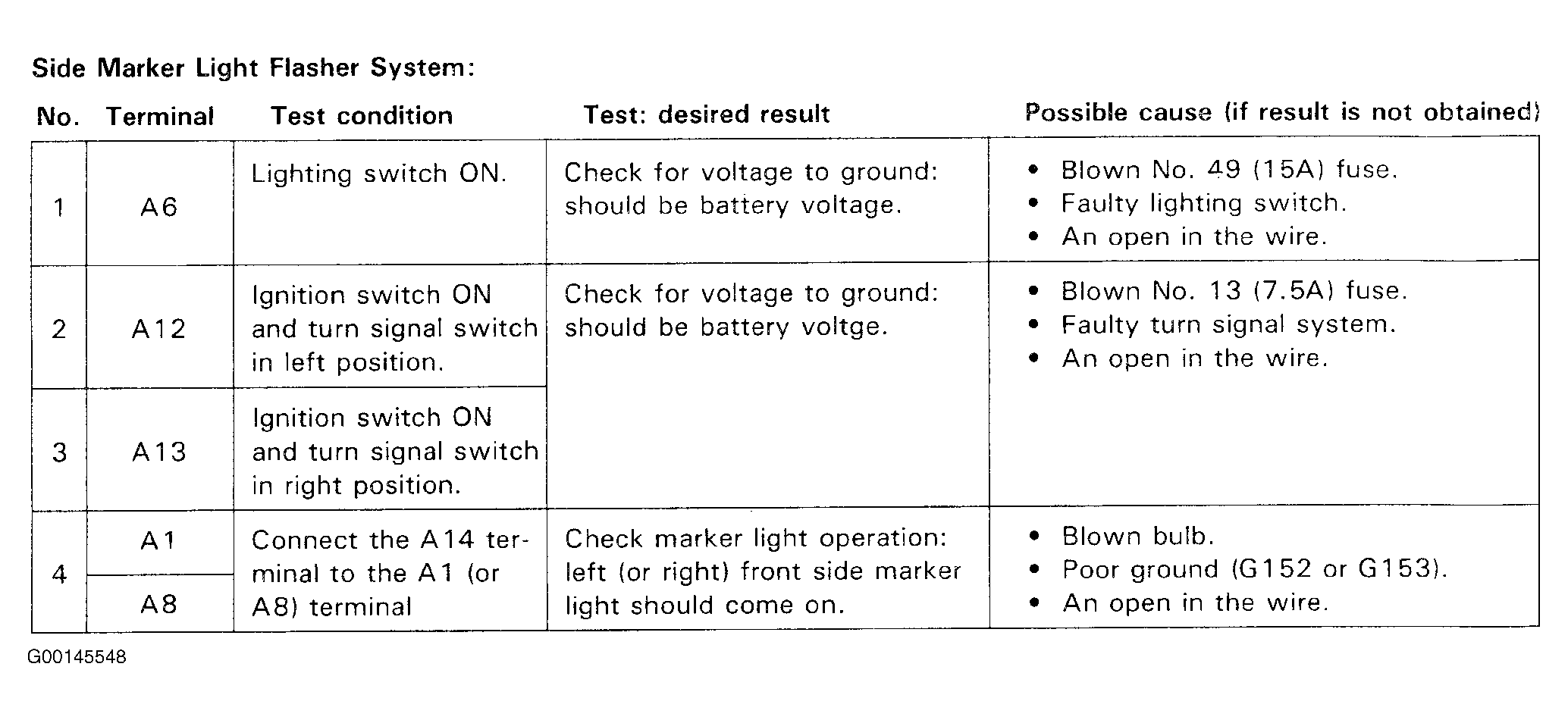

Fig 1: Side Marker Light Flasher System Input Test (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Side Marker Light Flasher System Input Test (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
