All Systems

NOTE: See Figure or Figure for connector terminal identification. For input test, see Fig 1 .

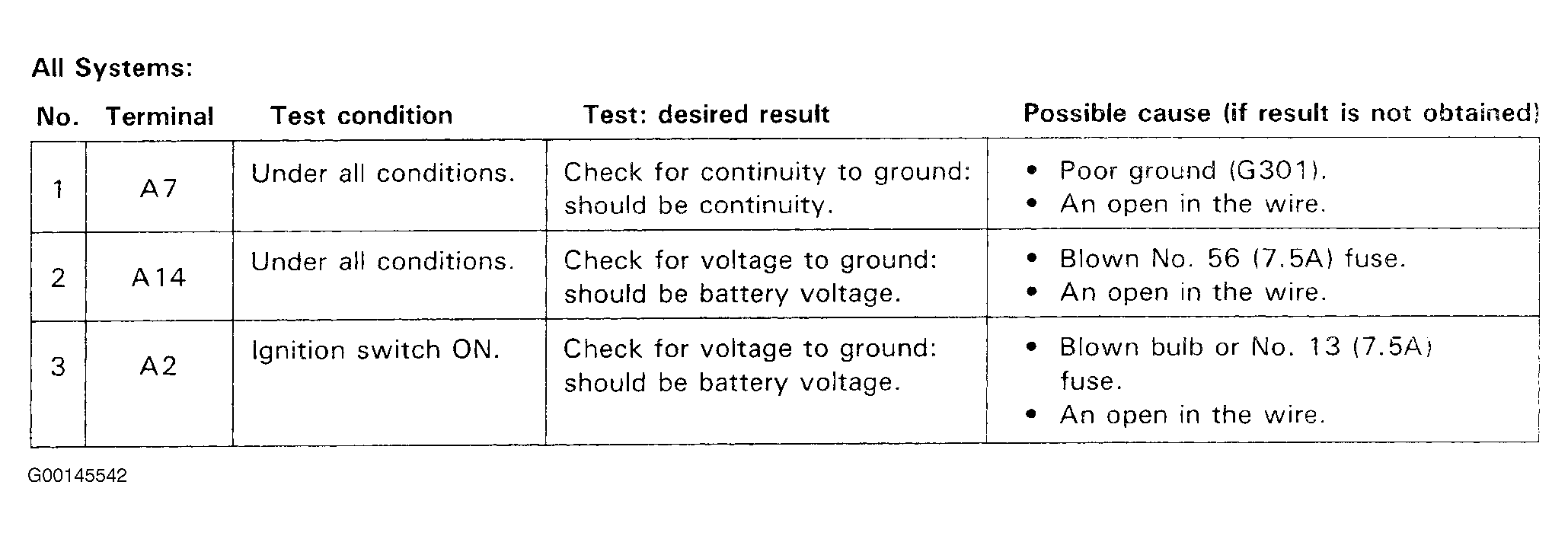

Fig 1: All Systems Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
