Security Control Module Input Test

Remove driver's side instrument panel lower cover. Disconnect security system control module 16-pin and 22-pin connectors. Inspect connectors to ensure terminals are making good contact. If terminals are bent, loose or corroded, repair as necessary and recheck system. If terminals are okay, use a Digital Volt/Ohmmeter to perform this test. See Fig 1 -Fig 5 . If input test is okay, replace control module.

Fig 1: Security Control Module Input Test (Legend Coupe - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

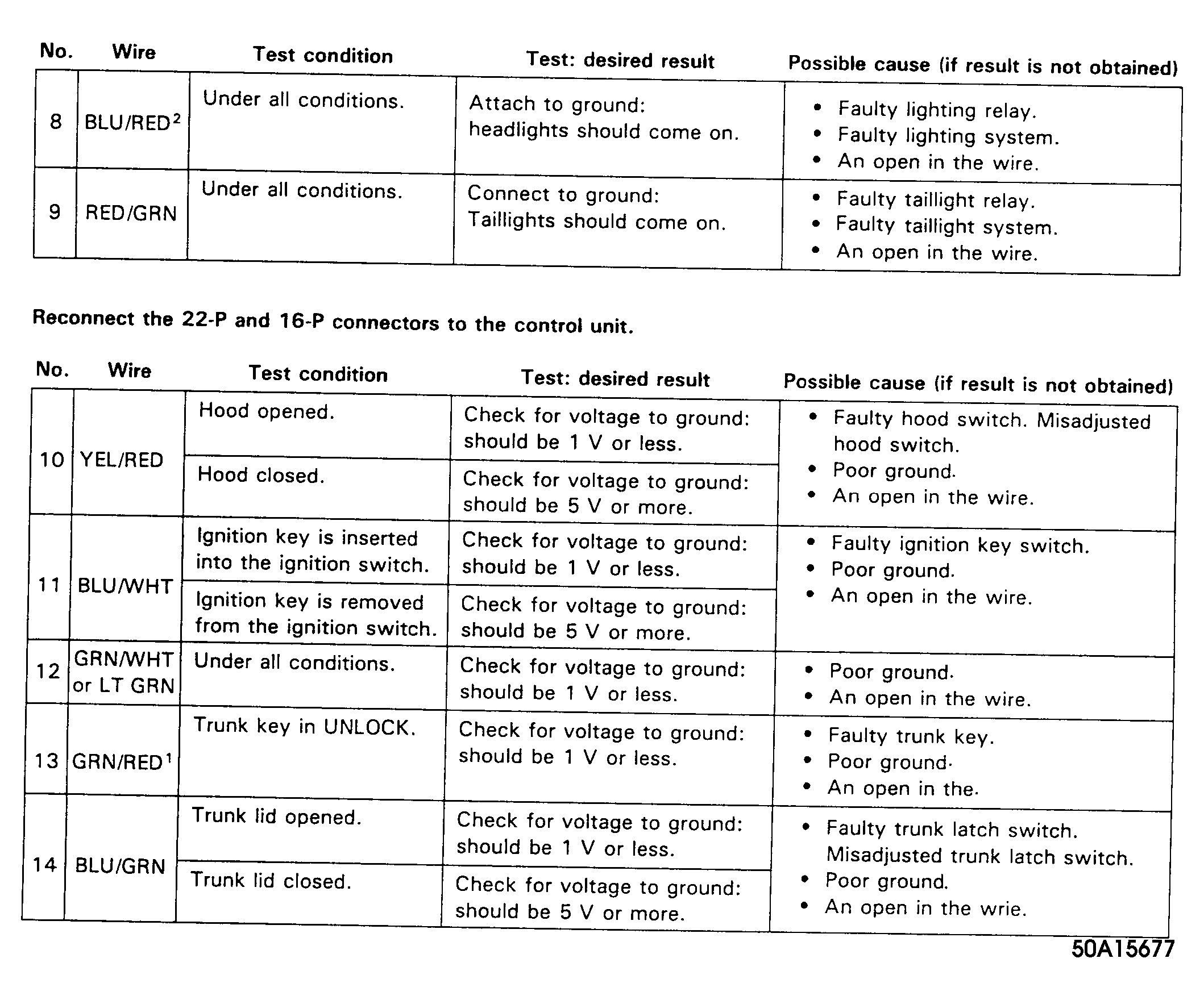

Fig 2: Security Control Module Input Test (Legend Coupe - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

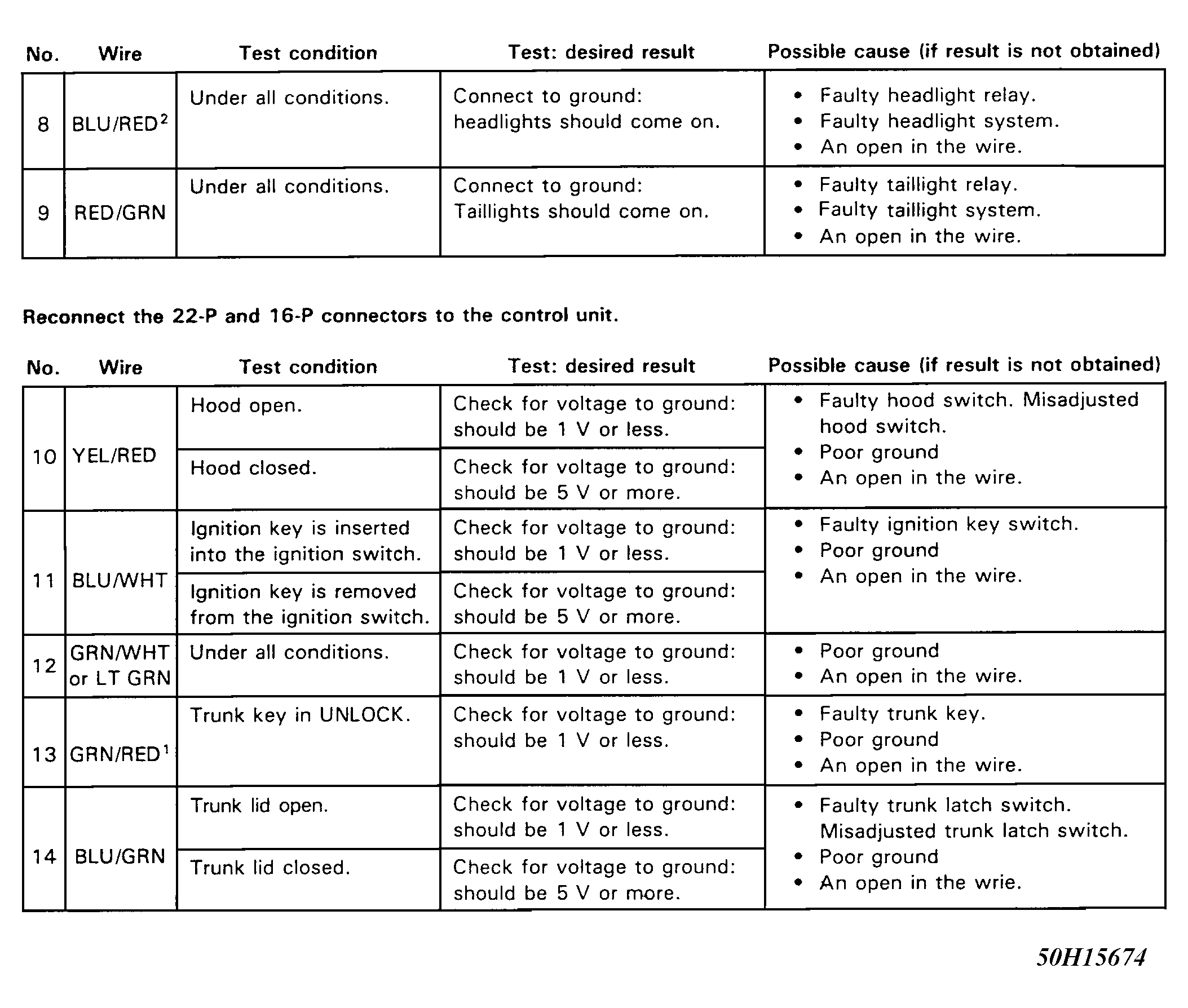

Fig 3: Security Control Module Input Test (Legend Coupe - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

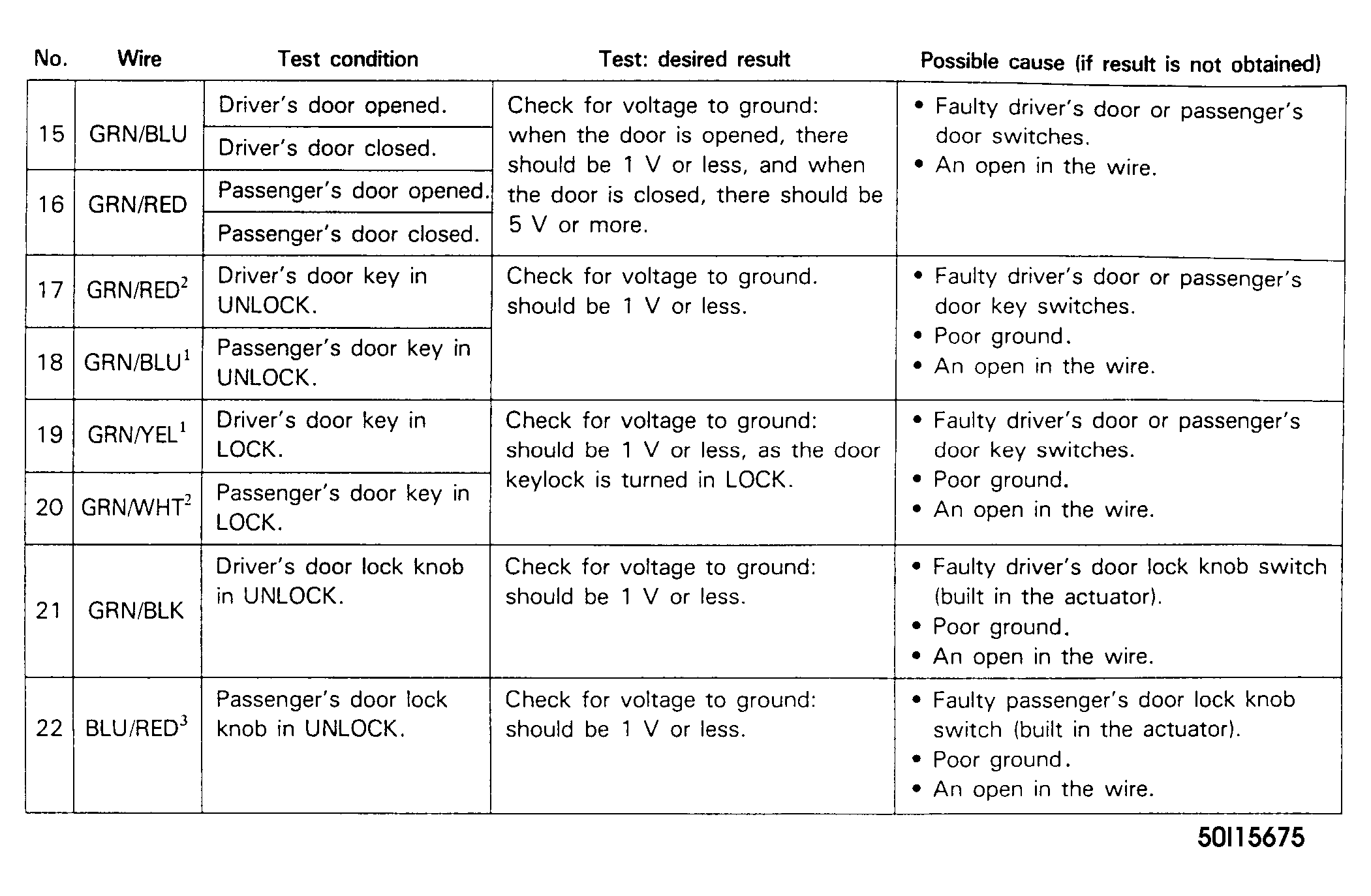

Fig 4: Security Control Module Input Test (Legend Sedan - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

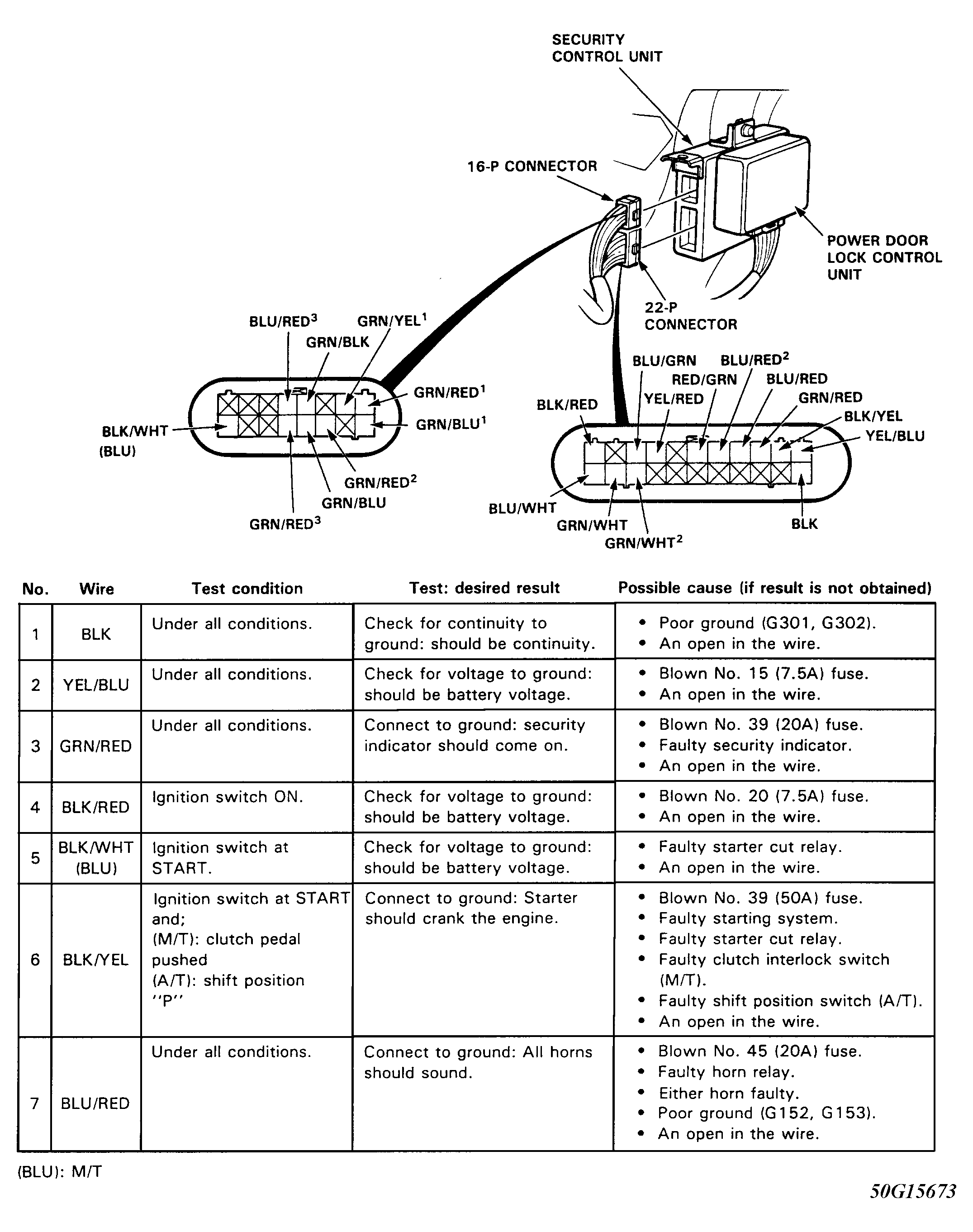

Fig 5: Security Control Module Input Test (Legend Sedan - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

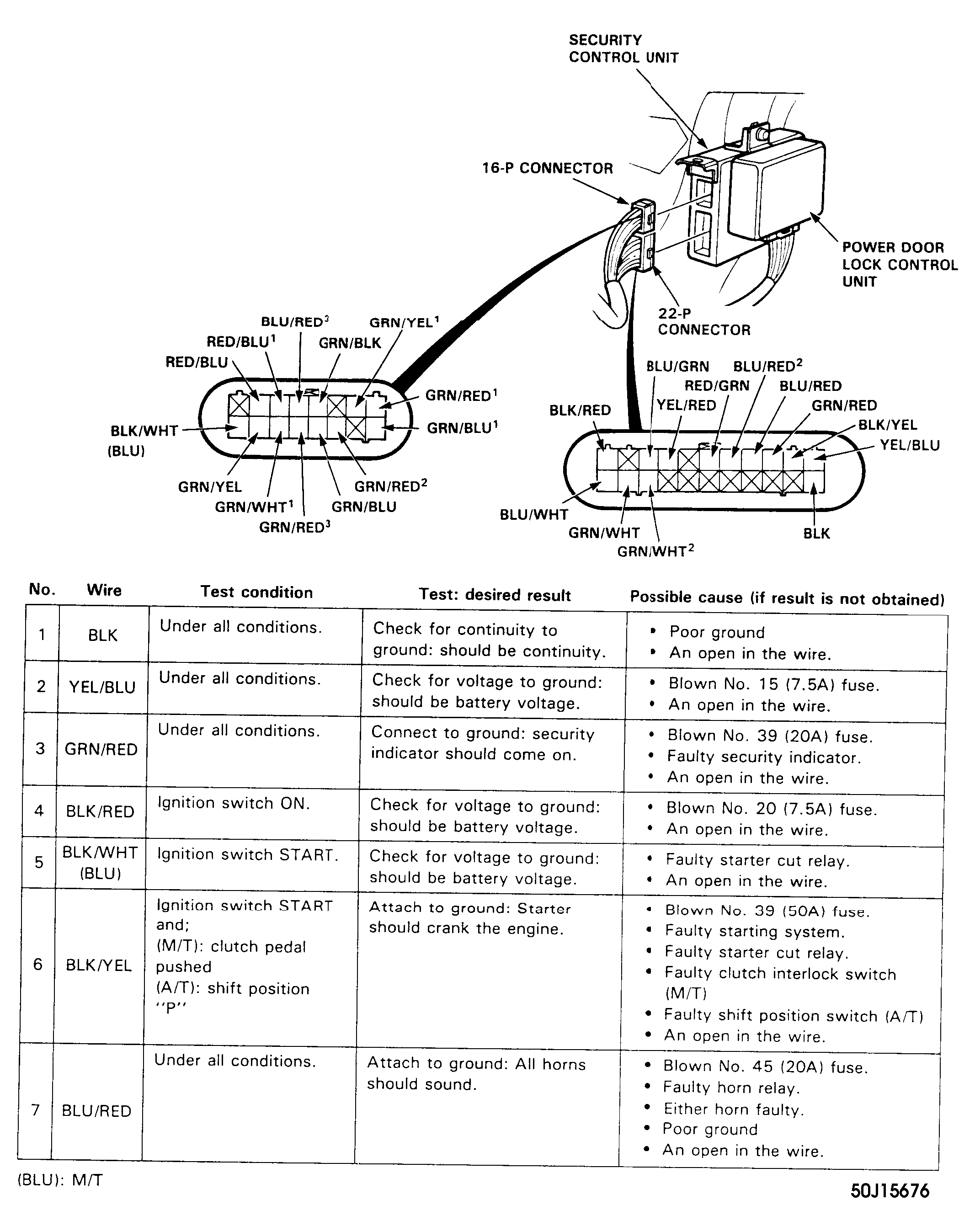

Fig 6: Security Control Module Input Test (Legend Sedan - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
